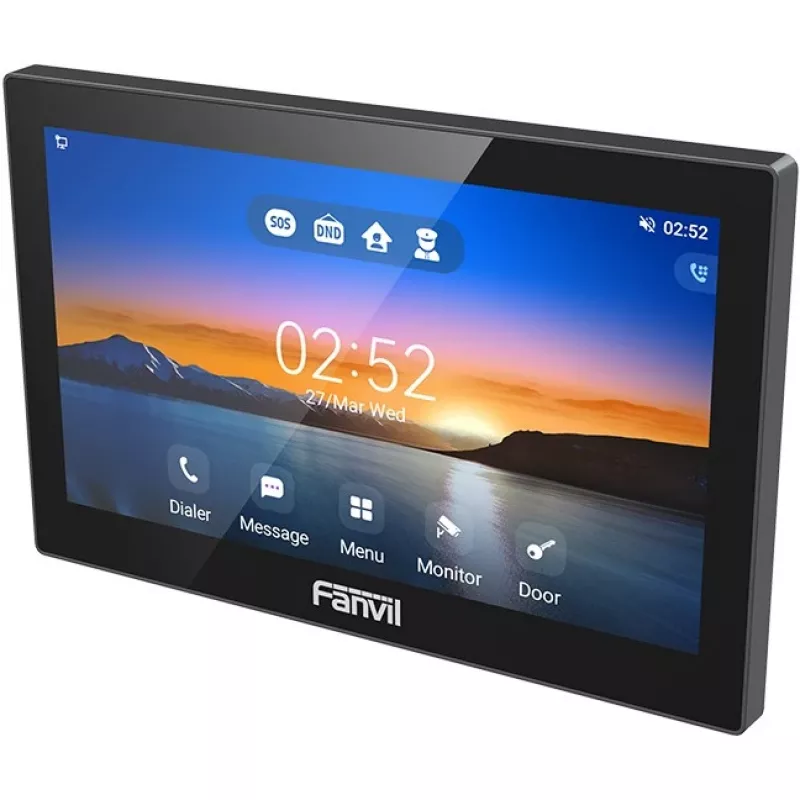

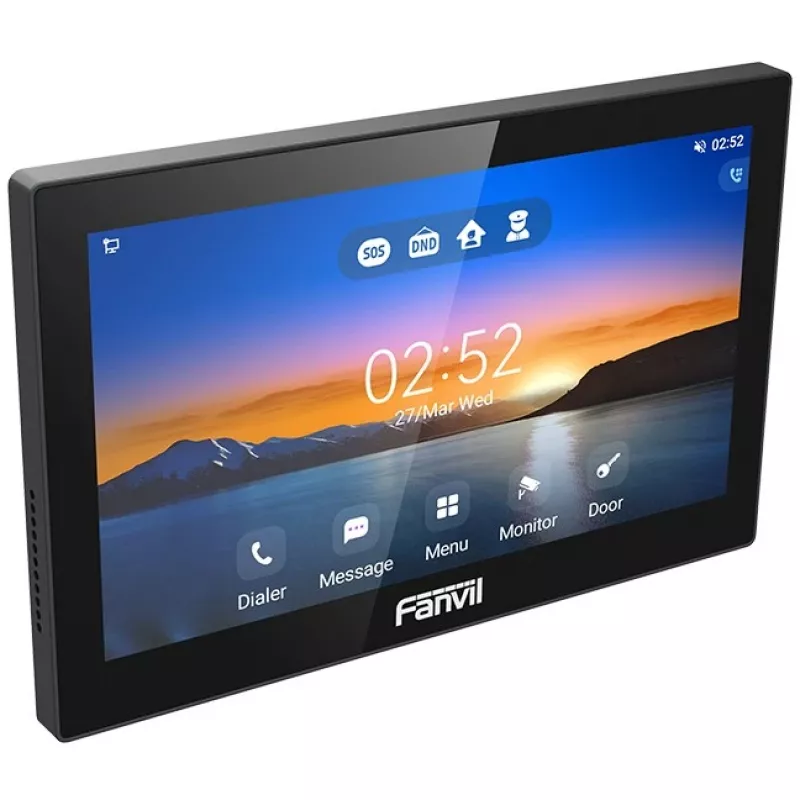

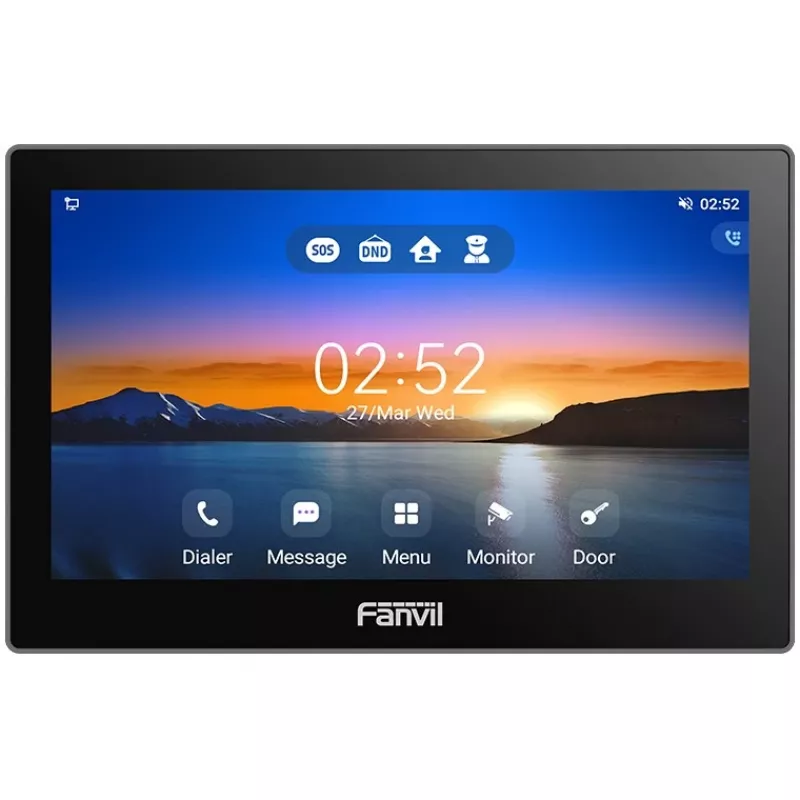

Videocitofono Fanvil i505W

Videocitofono Fanvil i505W
Videocitofono Fanvil i505W
Videocitofono Fanvil i505W
Videocitofono Fanvil i505W
Videocitofono Fanvil i505W
Videocitofono Fanvil i505W
248,11 €
PDF
PDF
Stock 19 Codice 121988 Modello i505W Garanzia 2 anni

Spedizioni e resi

Consegna stimata giovedì 3 dicembre
Ti terremo aggiornato tramite il nostro sistema di tracciamento dettagliato
Opzioni di pagamento
Carta di credito/debitoVisaMastercardPayPalApple PayGoogle PayBonifico bancario

Fai una domanda – l'assistente AI risponde subito.

Descrizione

The Fanvil i505W is a 7-inch indoor video intercom station with an IPS touchscreen and a 1024 x 600 native display resolution. Running Android 9.0, the device supports third-party apps and offers expansion interfaces for integration with security systems. It supports video up to 1920 x 1080 pixels (720p and 1080p modes), includes a 2W speaker, and uses G.722 and OPUS codecs for clear audio. Constructed from durable ABS and designed for indoor installation, the unit provides Fast Ethernet (10/100 Mbit/s) connectivity and complies with IEEE 802.1x standards.

Advantages

The i505W combines a compact 7-inch IPS touchscreen with Android 9.0 for flexible application support and an intuitive user interface. It supports high-definition video up to 1080p and wideband audio codecs (G.722, OPUS) for improved voice clarity. Built from ABS for indoor reliability and offering Fast Ethernet with IEEE 802.1x compliance, it integrates easily with access control and alarm systems via expansion interfaces.

Suitable for

  • Residential apartment buildings and gated communities
  • Private villas and individual homes
  • Office buildings and reception areas
  • Indoor security and access control points

Key specifications

  • Display: 7-inch IPS touchscreen, 1024 x 600 resolution
  • Maximum video resolution: up to 1920 x 1080 (720p/1080p modes)
  • Audio: 2W speaker; codecs: G.722, OPUS
  • Operating system: Android 9.0
  • Connectivity: Fast Ethernet 10/100 Mbit/s, IEEE 802.1x
  • Material: ABS (indoor use)
  • Brand / Model: Fanvil i505W (MPN: i505W, EAN: 6937295604498)

How to use

Install the i505W indoors and connect it to the local network via Ethernet. Use the touchscreen interface to configure network settings, install or enable compatible third-party applications, and pair the unit with security devices through available expansion interfaces. The station supports two-way intercom, remote door release, and alarm integration—configure these functions in the device settings or management platform according to your access control system.

Recommendations

Place the unit in a sheltered indoor location away from direct sunlight and moisture. Ensure a stable Ethernet connection and configure IEEE 802.1x where required by the network. For best audio quality, enable G.722 or OPUS codecs and test speaker volume during setup. Follow local regulations and building guidelines when integrating with door locks and alarm systems.
Punti salienti
  • Residential apartment buildings and gated communities
  • Private villas and individual homes
  • Office buildings and reception areas
  • Indoor security and access control points
  • Display: 7-inch IPS touchscreen, 1024 x 600 resolution
  • Maximum video resolution: up to 1920 x 1080 (720p/1080p modes)
  • Audio: 2W speaker; codecs: G.722, OPUS
  • Operating system: Android 9.0
  • Connectivity: Fast Ethernet 10/100 Mbit/s, IEEE 802.1x
  • Material: ABS (indoor use)
  • Brand / Model: Fanvil i505W (MPN: i505W, EAN: 6937295604498)

Specifiche

Specifiche
Alimentazione via Ethernet (PoE)
Sì
Altezza
22.5 mm
Altoparlanti integrati
Sì
Codec video
H.264, H.265
Codec vocali
G.722, OPUS
Colore
Sì
Colore del prodotto
Nero
Consumo energetico (max.)
7.64 W
Consumo energetico (tipico)
6.51 W
Corrente di uscita dell'alimentatore
1 A
Diagonale del display
7 "
Larghezza
113.99 mm
Materiale dell'involucro dell'unità interna
ABS
Modalità video supportate
720p, 1080p
Numero di altoparlanti
1
Numero di display supportati
1
Porte Ethernet LAN (RJ-45)
1
Porte RS-485
1
Potenza dell'altoparlante
2 W
Profondità
177.38 mm
Risoluzione del display
1024 x 600
Risoluzione video massima
1920 x 1080
Sistema operativo installato
Android
Standard di rete
IEEE 802.1x
Tecnologia del display
IPS
Tecnologia di connettività
Con filo e wireless
Temperatura di esercizio (T-T)
-10 - 50
Temperatura di stoccaggio (T-T)
-40 - 80
Tensione di uscita dell'alimentatore CA
12
Tipo di alimentazione unità interna
DC/PoE
Tipo di interfaccia Ethernet
Fast Ethernet
Tipo di touchscreen
Capacitivo
Touchscreen
Sì
Umidità relativa di esercizio (H-H)
10 - 90
Unità esterna inclusa
No
Unità interna inclusa
Sì
Uso previsto
Interno
Velocità di trasferimento Ethernet LAN
10, 100
Versione del sistema operativo
9
Vivavoce
Sì
Wi-Fi
Sì

Brochure

Apri documento
