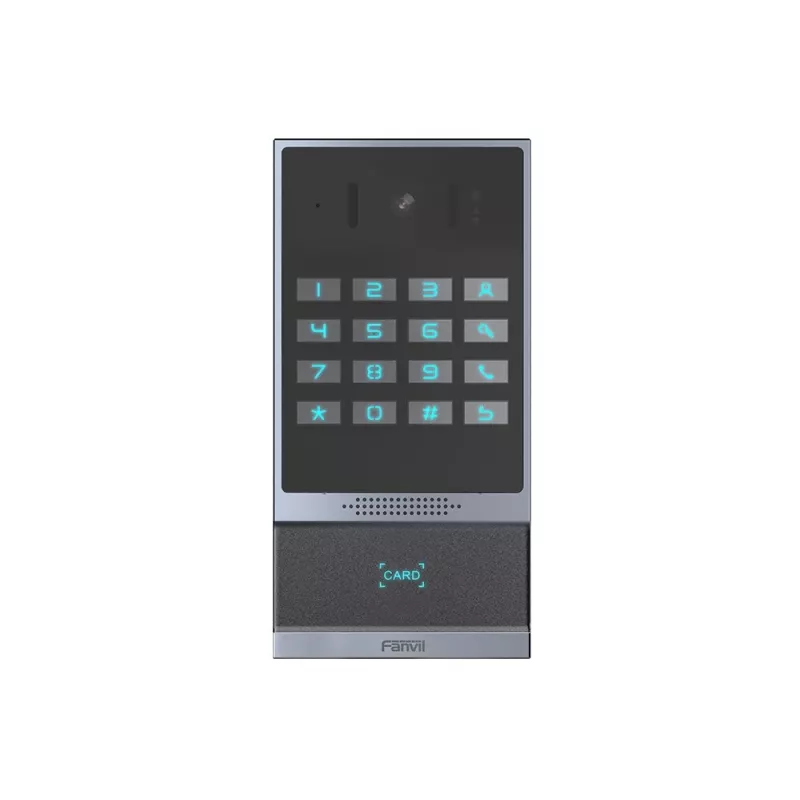

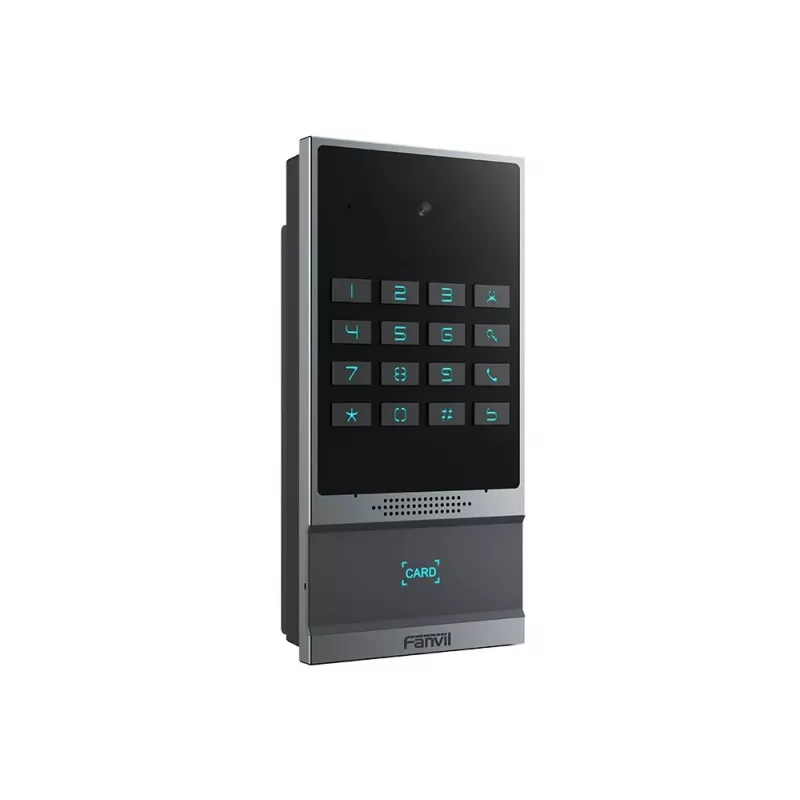

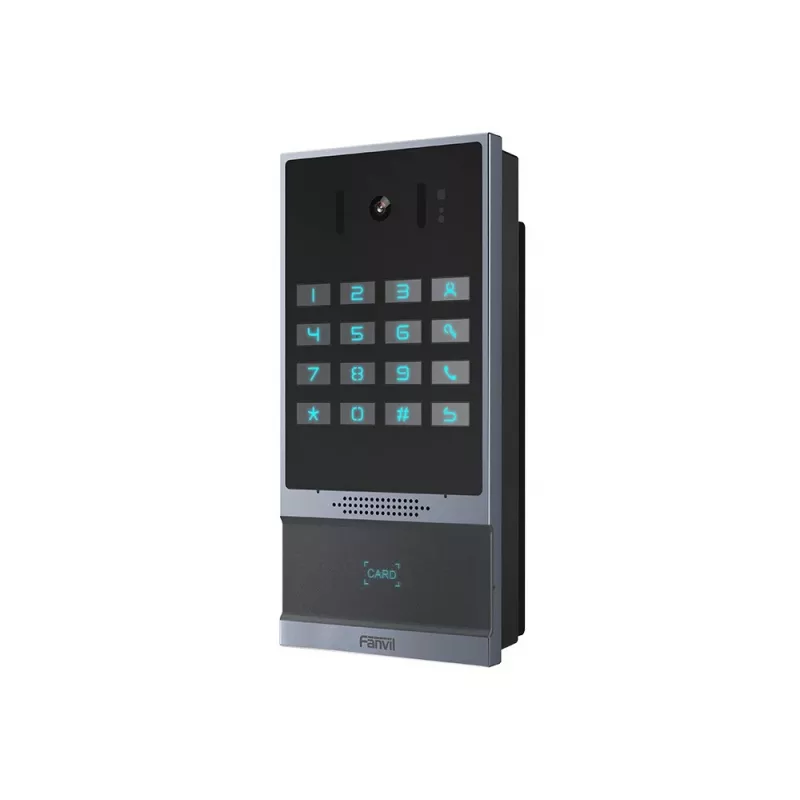

Videocitofono Fanvil i64 2 MP alluminio IP67 IK07

The Fanvil i64 is a video intercom designed for outdoor access control, intercom communication and security monitoring. Based on SIP and ONVIF protocols, the unit integrates a 2 MP camera with 1080p video, an IR LED for low-light conditions, a lighting numeric keypad and a speed-dial button. Housed in an aluminium-alloy body with IP67 and IK07 protection, the i64 is built to resist water, dust and impacts, and offers multiple input/output interfaces for integration with other security devices.

Advantages

The Fanvil i64 combines video and audio communications with access control functions in a single device, supporting standard SIP and ONVIF interoperability. Its 2 MP camera provides 1080p image quality while the IR LED enables night-time monitoring. The aluminium housing and IP67/IK07 ratings ensure durability in outdoor environments. A lit numeric keypad and a speed-dial button simplify entry and calling operations, and the variety of I/O ports makes system integration and customization straightforward.

Suitable for

• Residential entrances and gated communities
• Apartment buildings and multi-tenant access points
• Commercial buildings and office entrances
• Industrial parks and secured outdoor perimeters

Key specifications

• Camera: 2 MP, up to 1920 x 1080 (1080p)
• Protocols: SIP, ONVIF
• Protection: IP67 (water and dust resistant), IK07 (impact resistant)
• Body: aluminium alloy
• Night vision: IR LED
• Interface: numeric keypad (lighting), speed-dial button, multiple I/O ports

How to use

Install the Fanvil i64 at the entrance according to mounting guidelines and connect power, network and required I/O lines. Configure SIP and ONVIF settings in the device web interface or management platform to enable call routing, video streaming and integration with access control systems. Use the lighting numeric keypad or speed-dial button to place calls; video and audio calls are established to configured endpoints. Configure access modes (card, code, remote release or other supported methods) as needed through the system.

Recommendations

For reliable outdoor performance, mount the device under a sheltered area where possible, seal cable entries during installation, and ensure firmware is kept up to date. Use compatible SIP/ONVIF platforms and test integration with existing security systems before full deployment.
