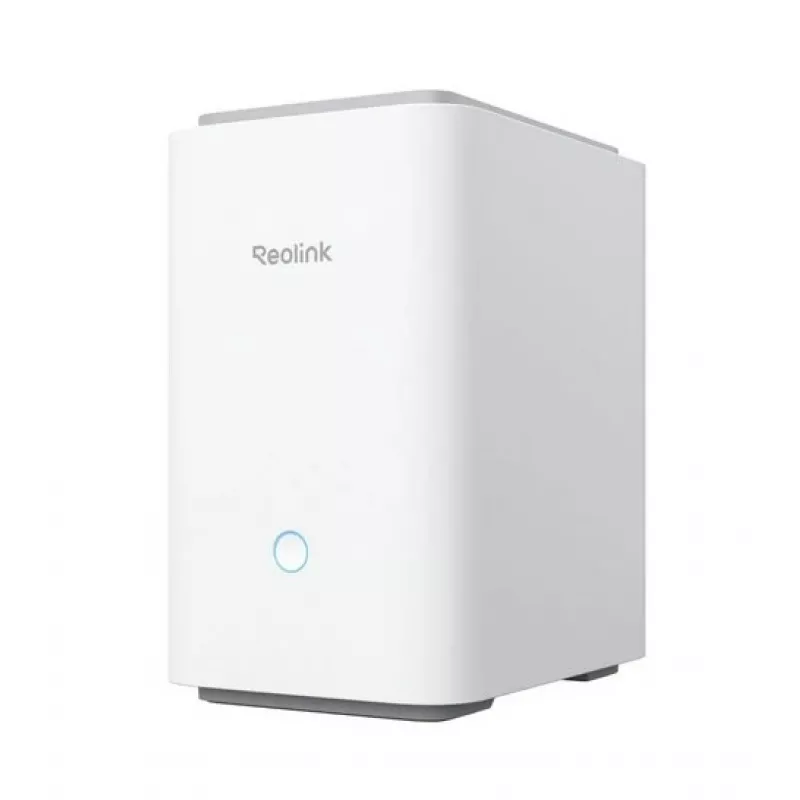

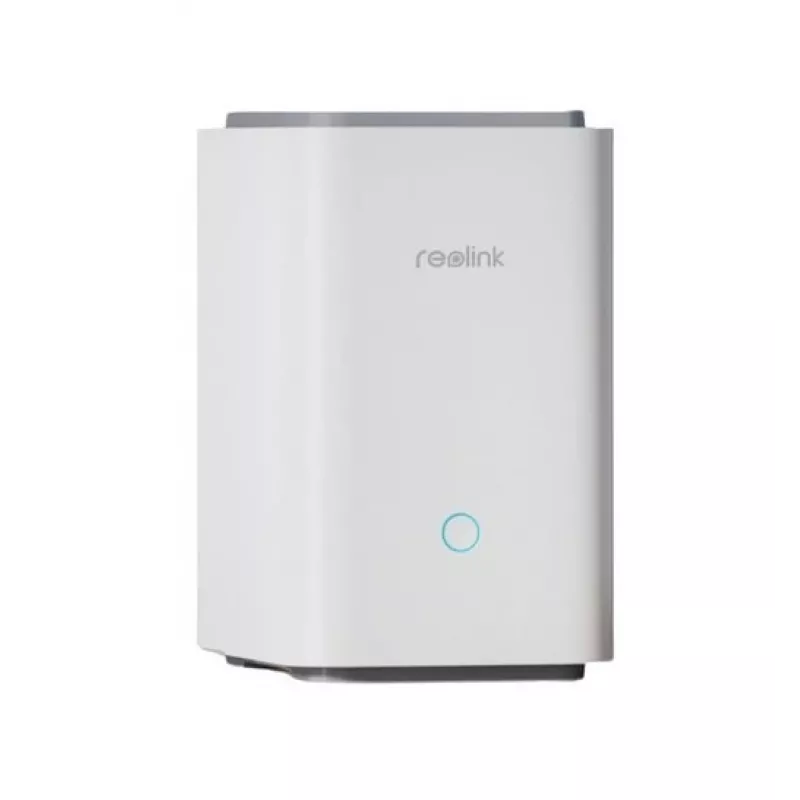

Videoregistratore di rete Hub Reolink Home Hub P1 — 24 canali telecamera, HDD 2 TB, Wi‑Fi ed Ethernet, slot MicroSD

Reolink Home Hub P1 is a hub‑type network video recorder that supports up to 24 camera channels and comes with a preinstalled 2 TB hard drive. It provides both wired Ethernet (100 Mbps) and Wi‑Fi connectivity, a MicroSD card slot supporting cards up to 512 GB, LED status indicators, a reset button and a DC‑in power connector (12 V, 1 A). The device is intended for indoor use and can be mounted on a wall; it supports up to 11 user accounts and operates in temperatures from -10 to 45 °C with relative humidity between 10% and 90%.

Advantages

The Home Hub P1 combines local storage with flexible network options, offering simultaneous wired and wireless connectivity for camera systems. A preinstalled 2 TB HDD reduces initial setup steps, while the MicroSD slot allows additional local recording capacity. Compact wall‑mount design and LED indicators simplify installation and status monitoring. Support for multiple user accounts enables managed access for several operators.

Suitable for

• Small to medium multi‑camera surveillance systems (up to 24 channels)
• Indoor installations requiring wall mounting
• Environments needing both wired and wireless camera connections
• Sites where local storage and guest/user access control are required

Key specifications

• Device type: Hub network video recorder
• Maximum camera channels: 24
• Preinstalled storage: 2 TB HDD
• MicroSD slot: supports up to 512 GB
• Ethernet: 100 Mbps
• Wi‑Fi: supported
• Power input: 12 V, 1 A (DC‑in)
• Number of supported users: 11
• Operating temperature: -10 to 45 °C
• Operating humidity: 10–90% RH
• Mounting: indoor wall mount
• Device colour: White
• Dimensions (H×W×D): 222 × 185 × 133 mm
• Weight: 1 kg

How to use

Mount the Hub P1 on an indoor wall according to the included instructions and connect the supplied AC adapter to the DC‑in jack (12 V, 1 A). Connect to the local network using Ethernet or configure Wi‑Fi through the Reolink app or web interface. Insert a MicroSD card if additional local recording is needed. Add cameras up to the supported 24 channels and assign user accounts for access management. Monitor status via LED indicators and use the reset button only when restoring factory settings is required.

Recommendations

Install the hub in a dry, well‑ventilated indoor location within the specified temperature and humidity ranges. Use compatible microSD cards rated for continuous recording if additional local storage is used, and ensure the preinstalled HDD has appropriate ventilation. Limit access to authorized users and keep firmware updated to maintain system security and reliability.
