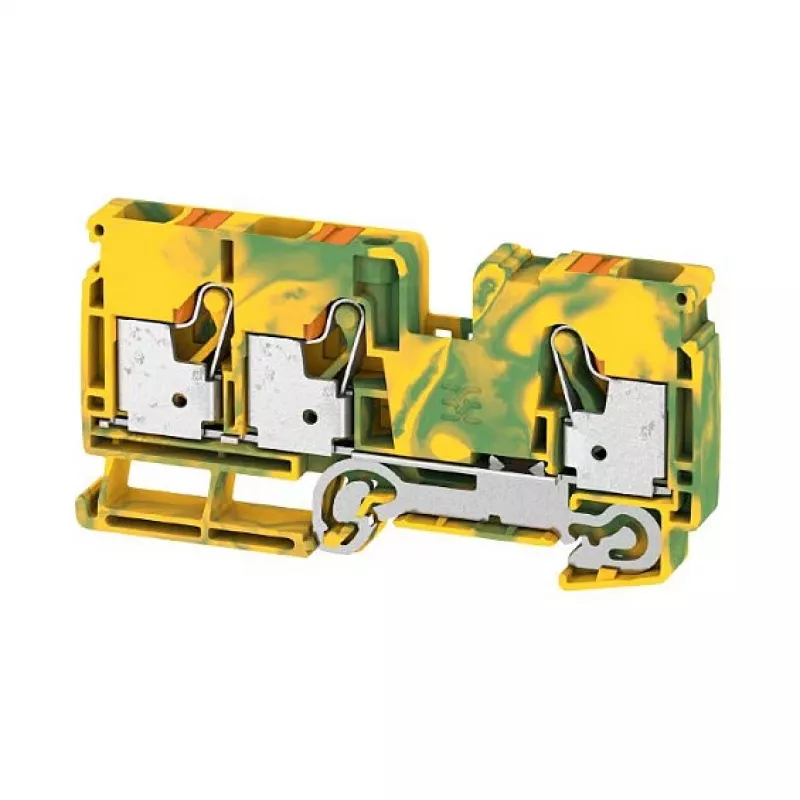

Weidmüller Serie A universale A3C 10 PE Morsetto di terra, connessione a vite, 10 mm², verde/giallo

The Weidmüller A-Series Universal A3C 10 PE is a high-quality protective earth (PE) terminal block designed for reliable grounding and earthing applications. With a rated cross-section of up to 16 mm² (solid) and a rated voltage of 1000 V, it ensures safe and efficient electrical connections in industrial environments. The green/yellow colour coding clearly identifies it as a PE terminal, complying with international standards.

Advantages

This terminal block offers robust screw connection technology for secure and maintenance-free wiring. Its compact design saves space on DIN rails, while the Wemid insulation material provides excellent thermal and mechanical resistance. The V-0 flammability rating ensures high fire safety.

Suitable for

• Industrial control panels and switchgear
• Building automation and distribution systems
• Machine building and plant engineering
• Protective earth connections in accordance with IEC 60947-7-2

Key specifications

• Product Type: Protective Earth (PE) Terminal Block
• Series: A-Series
• Connection Technology: Screw Connection
• Rated Cross-section (flexible with ferrule): 0.5 - 10 mm²
• Rated Cross-section (solid): 0.5 - 16 mm²
• Rated Voltage (IEC): 1000 V
• Rated Current (IEC, for 10 mm²): 76 A
• Number of Potentials: 1 (PE)
• Number of Connections: 2
• Mounting Type: DIN Rail TS 35
• Colour: Green/Yellow
• Insulation Material: Wemid
• Flammability Rating (UL 94): V-0
• Operating Temperature: -50 °C to +120 °C
• Stripping Length: 14 mm
• Tightening Torque: 1.2 - 2.0 Nm
• Pollution Degree: 3
• Overvoltage Category: III
• Wire Size (AWG): AWG 20 - AWG 6
• Standards/Approvals: IEC 60947-7-2, UL, CSA, EAC

Recommendations

For optimal performance, use with copper conductors and appropriate ferrules. Ensure proper tightening torque to maintain low contact resistance. This terminal block is suitable for use in pollution degree 3 environments.
