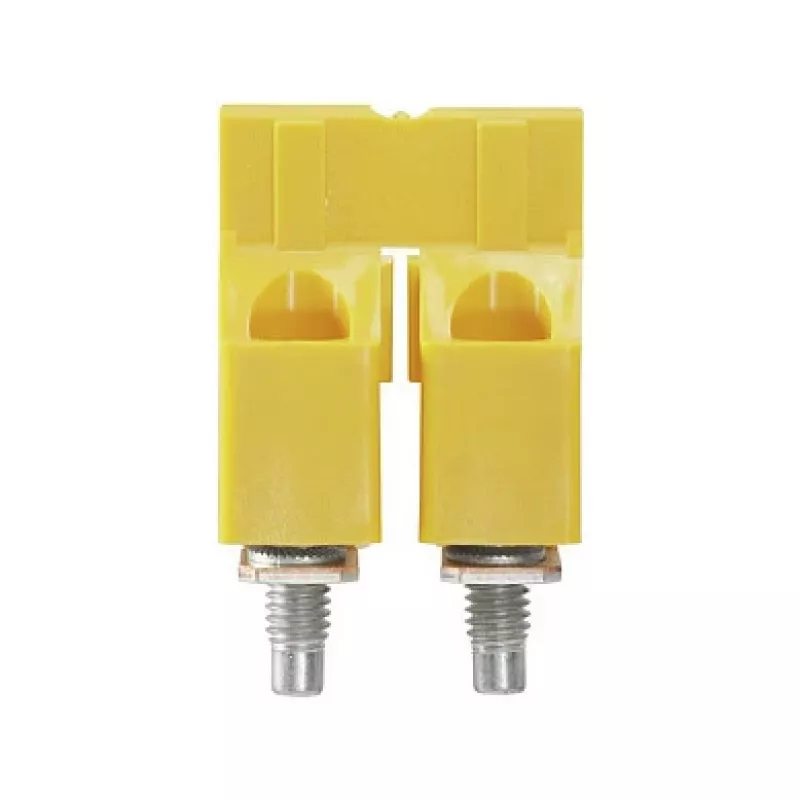

Weidmüller WQV 16/2 connettore trasversale - 50 pz. - poliammide - giallo - da -60 a 130 °C - V0

The Weidmüller WQV 16/2 is a high-quality cross-connector designed for bridging terminal blocks in industrial electrical installations. This plug-in connector offers reliable and space-saving connections, ensuring efficient wiring in control cabinets and distribution systems.

Advantages

• Easy plug-in installation without tools
• Compact design saves space on the terminal rail
• High temperature resistance from -60 to 130 °C
• Self-extinguishing polyamide material with V0 flammability rating
• Secure and vibration-resistant connection

Suitable for

• Bridging adjacent terminal blocks in electrical panels
• Industrial automation and control systems
• Power distribution and signal wiring
• Applications requiring high thermal stability

Key specifications

• Product Type: Cross-Connector
• Number of Poles: 2
• Nominal Cross-Section: 16 mm²
• Material: Polyamide (PA)
• Colour: Yellow
• Operating Temperature Range: -60 to 130 °C
• Flammability Rating: UL94 V-0
• Packaging Quantity: 50 pieces
• Series: WQV
• Connection Method: Plug-in
• Insulation Type: Insulated
• Application: Terminal Block Bridging

Recommendations

For optimal performance, use with Weidmüller terminal blocks of the same series. Ensure proper insertion to maintain electrical continuity. Store in a cool, dry place.
