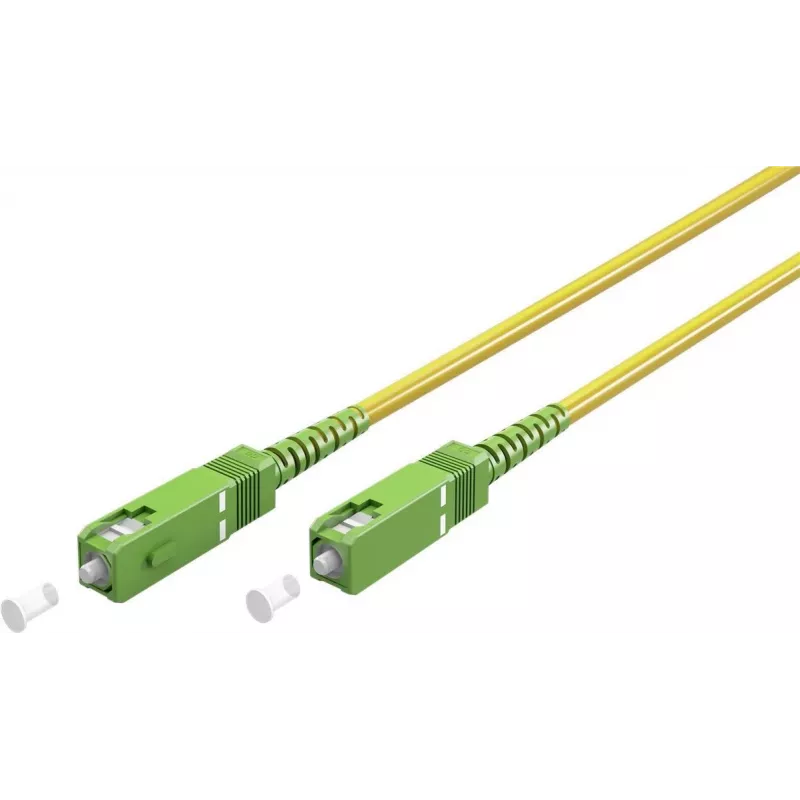

Wentronic Goobay 59641 cavo patch in fibra ottica OS2 single-mode, SC/APC a SC/APC, 5 m, giallo, LSZH

Single-mode OS2 fiber optic patch cable engineered for FTTH deployments, delivering low insertion loss and high return loss for stable, high-speed optical transmission. Pre-terminated with SC/APC connectors on both ends, this 5-meter simplex cable ensures reliable connectivity in fiber-to-the-home networks.

Advantages

OS2 single-mode fiber (ITU-T G.652.D) supports long-distance, high-bandwidth applications with minimal signal degradation. SC/APC connectors with ceramic ferrules provide precise alignment, reducing reflection and ensuring consistent performance. The yellow LSZH jacket is low smoke zero halogen, enhancing safety in residential and commercial environments. Simplex construction offers flexibility for individual fiber runs.

Suitable for

• FTTH (Fiber To The Home) installations
• Connecting ONT/ONU devices to fiber termination points
• Telecommunication and data center patching
• Single-mode fiber backbone extensions

Key specifications

• Connector type: SC/APC to SC/APC
• Fiber mode: Single-mode OS2 (9/125 µm)
• Cable length: 5 m
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Cable color: Yellow
• Insertion loss: ≤ 0.3 dB typical
• Return loss: ≥ 60 dB typical
• Ferrule material: Ceramic
• Operating temperature: -20°C to 70°C
• Minimum bend radius: 30 mm dynamic, 10 mm static

Recommendations

Ideal for FTTH installers and network technicians seeking a reliable, pre-terminated OS2 patch cable with SC/APC connectors. The LSZH jacket and robust performance make it suitable for both indoor and protected outdoor use.
