Sensore da soffitto Goobay 96007

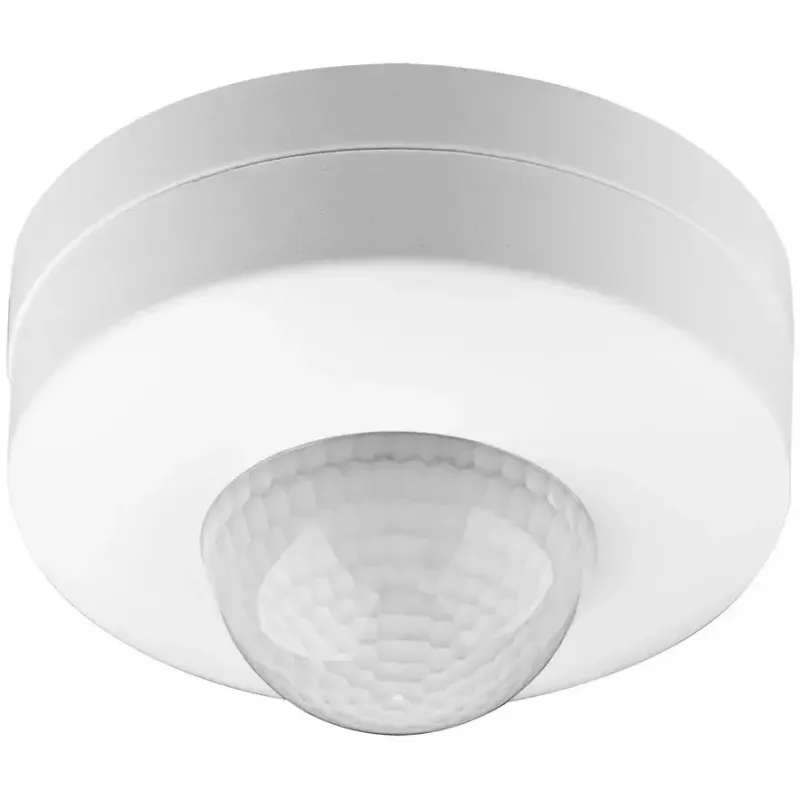

The Goobay 96007 Ceiling Mount Sensor is a ceiling-mounted passive infrared (PIR) sensor for indoor use. It provides 360-degree motion detection up to 12 metres and is designed for controlling LED lighting in residential and commercial indoor spaces. The compact white housing (90 mm × 90 mm × 54.8 mm) runs on AC 220–240 V, 50 Hz and is intended for straightforward ceiling installation.

Advantages

The sensor offers full 360° detection with a 12 m range, compatible with LED lighting systems and suitable for typical indoor ceilings. Its compact dimensions and white finish make it unobtrusive in most interiors. Operates directly from mains (220–240 V, 50 Hz) and is supplied by the WENTRONIC/Goobay brand (MPN 96007, EAN 4040849960079).

Suitable for

• Corridors and hallways
• Stairwells and landings
• Utility rooms and storerooms
• Offices and small commercial spaces
• LED lighting control and energy-saving lighting applications

Key specifications

• Type: Ceiling-mounted passive infrared (PIR) motion sensor
• Detection angle: 360°
• Detection range: up to 12 m
• Supply voltage: AC 220–240 V, 50 Hz
• Dimensions: 90 mm (width) × 90 mm (height) × 54.8 mm (depth)
• Finish: White
• Manufacturer / Brand: WENTRONIC (Goobay)
• MPN: 96007
• EAN: 4040849960079

How to use

Install the Goobay 96007 on the ceiling following local electrical regulations and standard wiring practices. Connect the sensor to the AC mains supply (220–240 V, 50 Hz) and wire its switched output to the lighting circuit you wish to control. Mount at a central ceiling position to achieve the intended 360° coverage and maximum detection range of 12 m. After installation, test the sensor by walking through the detection area to confirm reliable activation of the connected lights.

Recommendations

For reliable performance, mount the sensor on a stable ceiling surface at a height appropriate to the space (commonly 2.5–4 m) and avoid placing it near heat sources, air vents or reflective surfaces that can affect detection. Use with compatible LED drivers and fixtures; follow local codes and the device’s installation instructions when connecting to mains power.
