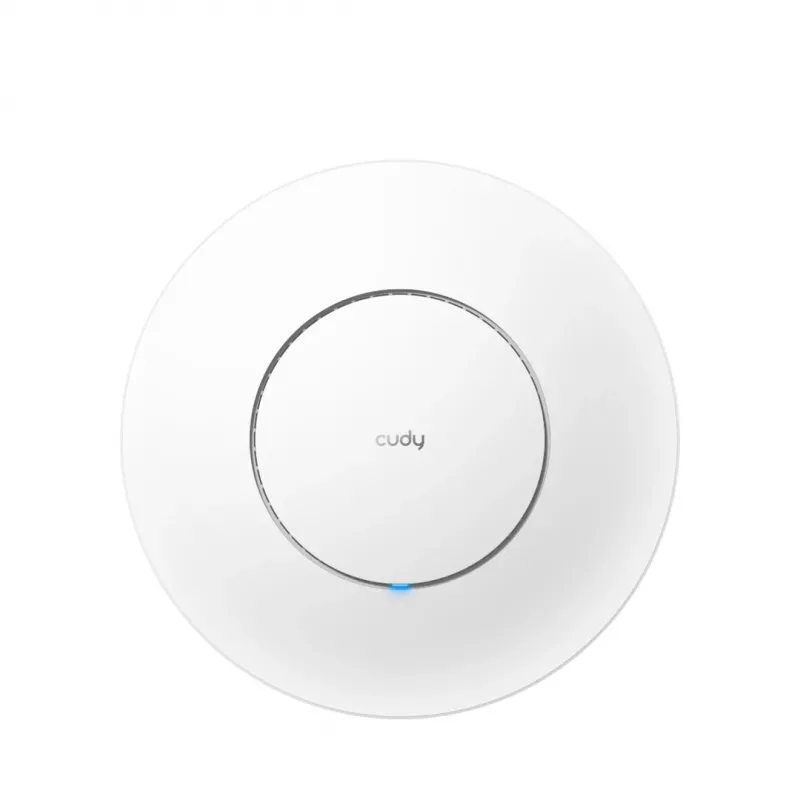

Access point wireless Cudy AP3600 — dual-band 2.4/5 GHz, 2882 Mbit/s, PoE, 2x RJ-45, soffitto/parete, bianco

Cudy AP3600 is a ceiling or wall wireless access point that provides dual‑band Wi‑Fi with combined throughput up to 2882 Mbps on the 5 GHz band and up to 688 Mbps on the 2.4 GHz band. The unit integrates a 2.0 GHz processor with 512 MB RAM and 128 MB flash, four internal antennas and supports MIMO for improved wireless performance. It is supplied with an AC adapter, LAN cable, mounting kit and a quick start guide.

Advantages

Dual‑band operation and MIMO support deliver higher throughput and better client density handling. Passive PoE and included AC adapter allow flexible installation on ceilings or walls. Built‑in processor and onboard memory support stable operation for medium‑density indoor deployments. Four internal antennas with up to 5.5 dBi gain provide consistent indoor coverage while maintaining a discreet white design.

Suitable for

• Medium‑density office or retail indoor wireless coverage
• Hotel corridors, classrooms and meeting rooms
• Small to medium public spaces requiring ceiling or wall mounting

Key specifications

• Wireless bands: 2.4 GHz (up to 688 Mbps) and 5 GHz (up to 2882 Mbps)
• Networking standards: IEEE 802.3at compatibility (PoE)
• Ethernet ports: 2 × RJ‑45 (2.5 Gbit/s capable LAN data rate listed)
• Power: AC input 100–240 V, 50/60 Hz; output 48 V; Passive PoE supported; max power consumption 10 W
• Processor: 2.0 GHz CPU; memory: 512 MB RAM; flash: 128 MB
• Antennas: 4 internal antennas, antenna gain up to 5.5 dBi
• Operating temperature: 0–40 °C; storage temperature: −40–70 °C; operating humidity: 10–90%
• Dimensions (W×H): 231.9 × 57.1 mm
• LED indicators: System; reset button included
• Compliance: FCC

How to use

Mount the access point on a ceiling or wall using the supplied mounting kit, connect one of the RJ‑45 ports to your network and power the device via the included AC adapter or a compatible passive PoE source. Use the quick start guide to complete the initial configuration through the web interface or management software; follow on‑screen steps to set SSIDs, security mode and channel settings. Use the reset button only when you need to restore factory defaults.

Recommendations

For best indoor coverage, place the AP centrally in the target area and avoid large metal obstacles. When deploying multiple units, plan channel allocation on the 2.4 GHz and 5 GHz bands to minimise interference and consider PoE power budget and cable runs for reliable operation.
