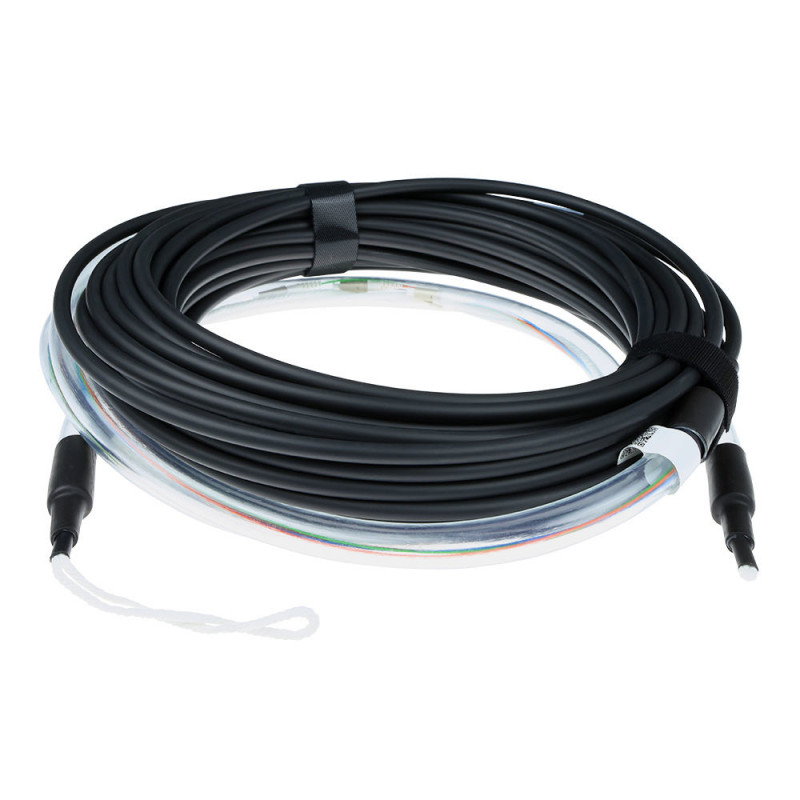

ACT cavo multimodale 50/125 OM3 per interni/esterni 30 m, 12 fibre con connettori LC (RL4603)

Long-distance fiber optic runs between buildings often fail because standard indoor cables cannot withstand outdoor conditions. This 30-meter pre-terminated cable solves that by combining an indoor/outdoor LSZH jacket with 12 OM3 multimode fibers, terminated with LC connectors on both ends. It delivers reliable 10GbE connectivity up to 300 meters, making it ideal for campus backbones or factory links.

Who is it for

Network installers and IT managers who need a ready-to-deploy, high-density link between switches, patch panels, or media converters across mixed indoor/outdoor environments.

Main features

• 12 OM3 50/125 µm multimode fibers support 10GbE up to 300 m and 40/100GbE up to 100 m.
• LC connectors on both ends for compact, high-density patching.
• LSZH jacket for low smoke and zero halogen emissions, suitable for indoor and outdoor use.
• Pre-terminated 30 m length eliminates field termination time and risk.

Specifications

• Fiber type: Multimode OM3, 50/125 µm
• Fiber count: 12
• Length: 30 m
• Connectors: LC to LC
• Jacket material: LSZH
• Application: Indoor/outdoor
• Bandwidth: 1500 MHz·km @ 850 nm, 500 MHz·km @ 1300 nm
• Attenuation: < 3.5 dB/km @ 850 nm, < 1.5 dB/km @ 1300 nm
• Insertion loss: < 0.3 dB per connector
• Return loss: > 20 dB per connector
• Operating temperature: -20 °C to 70 °C

Tips

For outdoor segments, route the cable inside conduit or cable trays to protect it from physical damage. Always inspect and clean LC connectors before mating to avoid contamination-related signal loss.
