ACT cavo patch in fibra ottica singlemode OS2 duplex 10 m LC su IP67 LC 9/125µm giallo RL7310

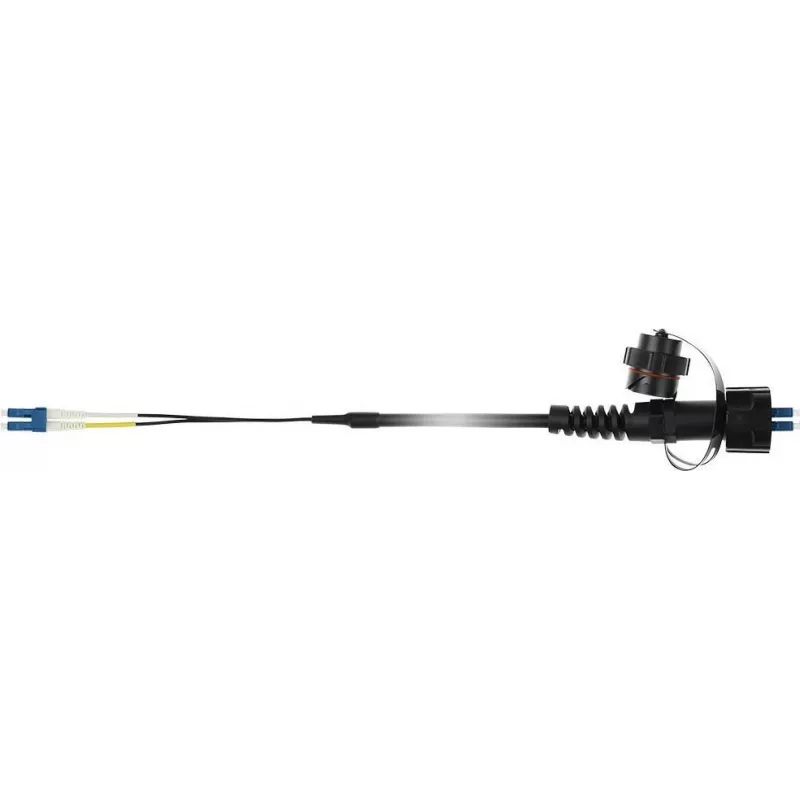

Outdoor and industrial fiber links often fail at the connector—dust, moisture, and rough handling degrade the mating point and bring a network down. This ACT RL7310 patch cable solves that by pairing a standard LC connector on one end with a sealed IP67 LC connector on the other, so the exposed end can live in harsh environments without losing signal integrity.

Who is it for

Network installers and maintenance teams who need a reliable 10-meter singlemode link between an indoor patch panel or switch and an outdoor access point, camera, or industrial device. It is also useful for temporary outdoor events where a protected connection is required.

Main features

• 10-meter duplex singlemode OS2 fiber, 9/125µm core/cladding
• LC connector on one end, IP67-rated LC connector on the other
• 7mm yellow jacket for high visibility and durability
• Supports 1310nm and 1550nm wavelengths
• UPC polish with insertion loss below 0.3dB and return loss above 50dB

Specifications

• Cable type: Fiber optic patch cable
• Fiber mode: Singlemode
• Fiber standard: OS2
• Core/cladding diameter: 9/125 µm
• Configuration: Duplex
• Length: 10 m
• Connector A: LC
• Connector B: IP67 LC
• Cable diameter: 7 mm
• Jacket colour: Yellow
• Wavelengths: 1310nm, 1550nm
• IP rating (connector B): IP67
• Connector polish: UPC
• Insertion loss: < 0.3 dB
• Return loss: > 50 dB

Tips

Match the IP67 LC connector to a compatible sealed bulkhead or device port to maintain the environmental rating. For outdoor runs, secure the cable with UV-resistant ties and avoid tight bends below the minimum bend radius.
