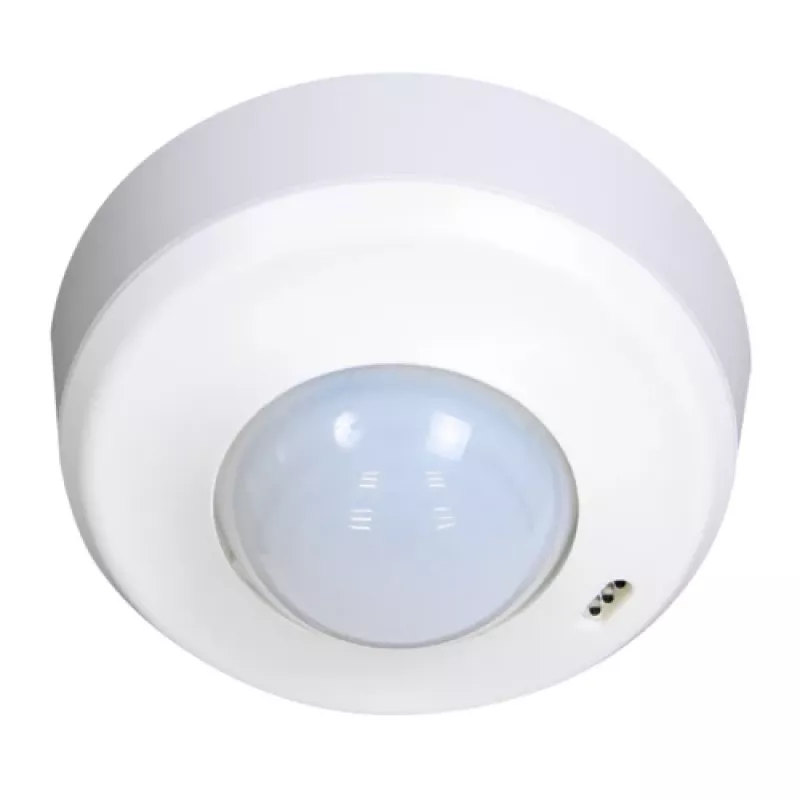

BEG LUXOMAT PD2-M-1C-AP rilevatore di presenza Master, 1 canale, da parete, bianco

Ceiling-mounted presence detector with 360° PIR coverage and automatic light control for efficient energy management in commercial and residential spaces. The master unit switches lighting based on occupancy and ambient brightness, ensuring lights operate only when needed.

Advantages

Reliable detection over a diameter of 8 metres at a mounting height of 2.5 metres. Adjustable light threshold from 10 to 2000 lux and time delay from 10 seconds to 60 minutes allow precise adaptation to room usage. Robust UV-stabilised polycarbonate housing in white blends discreetly into ceilings. Supports high inrush LED loads up to 1000 W, making it suitable for modern lighting installations.

Suitable for

• Offices and meeting rooms
• Corridors and stairwells
• Restrooms and storage areas
• Classrooms and training rooms

Key specifications

• Detection technology: Passive Infrared (PIR)
• Detection angle: 360°
• Detection range: 8 m diameter at 2.5 m mounting height
• Channels: 1 (lighting)
• Operating mode: Master
• Mounting type: Surface-mounted (ceiling)
• Supply voltage: 230V AC, 50/60 Hz
• Switching capacity: 2300 W / 10 A resistive, 1000 W LED/fluorescent
• Light sensor range: 10–2000 lux or infinite
• Time delay: 10 s – 60 min adjustable
• Protection class: IP20
• Ambient temperature: -25 °C to +50 °C
• Housing material: UV-stabilised polycarbonate
• Colour: White

Recommendations

For optimal performance, install at a height of 2.5 metres on a stable ceiling surface, away from direct airflow or heat sources. Use only with compatible BEG slave units for extended coverage. A qualified electrician should perform installation in accordance with local regulations.
