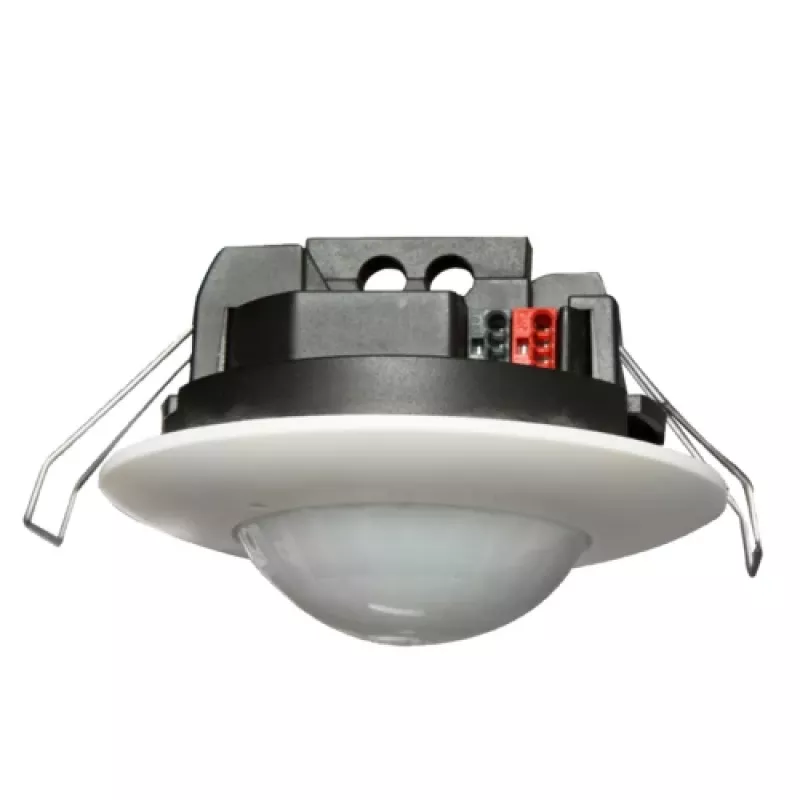

BEG BRCK LUXOMAT PD2N-KNXs-ST-DE rilevatore di presenza KNX, 360°, 3 canali, bianco

With a 360° detection angle and a tangential range of up to 78 m², the BEG BRCK LUXOMAT PD2N-KNXs-ST-DE presence detector delivers comprehensive room coverage for intelligent building automation. This KNX-powered ceiling-mounted sensor combines presence detection, constant light control, and HVAC management in a single discreet unit, making it a cornerstone of energy-efficient lighting and climate control.

Overview

The PD2N-KNXs-ST-DE is a surface-mounted presence detector engineered for KNX bus systems. It operates on bus voltage (21–30 V DC) and integrates seamlessly with ETS software for configuration. The device features three independent channels—light, HVAC, and presence—enabling precise control of lighting, heating, ventilation, and air conditioning based on occupancy and ambient light levels. Its passive infrared (PIR) sensor ensures reliable motion detection, while the built-in light sensor (10–2000 lux) supports constant light control to maintain desired illumination while saving energy.

What stands out

• 360° detection angle with presence range of Ø 4 m (12.5 m²) and tangential range of Ø 10 m (78 m²) at 2.5 m mounting height.
• Three independent channels for light, HVAC, and presence—enables sophisticated automation scenarios.
• Constant light control with integrated light sensor (10–2000 lux) for optimal energy efficiency.
• Compact, UV-stabilised polycarbonate housing in white (RAL 9010) blends into any ceiling.
• IP20 rating suitable for indoor use; operating temperature range -25 °C to +50 °C.
• Low power consumption of approximately 0.8 W from the KNX bus.

Technical details

• Bus system: KNX (TP)
• Sensor type: Passive Infrared (PIR)
• Detection angle: 360°
• Presence detection range: Ø 4 m (12.5 m²) at 2.5 m mounting height
• Tangential detection range: Ø 10 m (78 m²) at 2.5 m mounting height
• Recommended mounting height: 2.0–3.0 m (optimal 2.5 m)
• Mounting type: Ceiling, surface-mounted
• Light sensor range: 10–2000 lux
• Operating voltage: 21–30 V DC (KNX bus)
• Power consumption: approx. 0.8 W
• Number of channels: 3 (light, HVAC, presence)
• Functions: presence detection, constant light control, HVAC control, scene control
• Configuration: ETS software
• Housing material: UV-stabilised polycarbonate
• Colour: White (RAL 9010)
• Protection class: IP20
• Operating temperature: -25 °C to +50 °C

Our verdict

The PD2N-KNXs-ST-DE is a versatile and reliable presence detector for KNX installations. Its wide detection area, three-channel control, and constant light regulation make it an excellent choice for offices, meeting rooms, and public spaces where comfort and energy savings are paramount.
