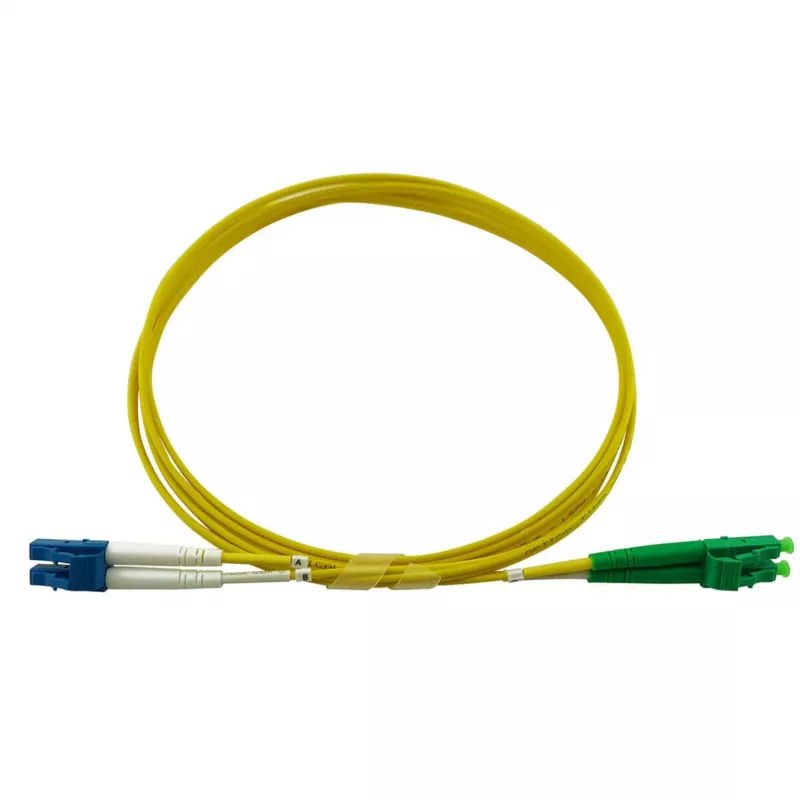

BlueOptics Cavo patch in fibra ottica duplex LC-UPC/LC-APC monomodale 7,5 metri

The BlueOptics Duplex Fibre Optic Patch Cable is a high-performance singlemode patch cable designed for reliable and efficient data transmission in fibre optic networks. With LC-UPC to LC-APC connectors and a length of 7.5 metres, this cable ensures low insertion loss and high return loss, making it ideal for demanding applications.

Advantages

This cable offers exceptional signal integrity with typical insertion loss ≤0.3 dB and high return loss (≥50 dB for LC-UPC, ≥60 dB for LC-APC). The LSZH jacket provides safety in enclosed spaces, and the durable zirconia ceramic ferrules ensure long-term reliability.

Suitable for

• Fibre optic network installations requiring singlemode OS2 performance
• Connecting devices with LC-UPC and LC-APC interfaces
• Data centres, telecommunications, and enterprise networks
• Applications where low signal loss and high return loss are critical

Key specifications

• Cable Type: Fibre Optic Patch Cable
• Fibre Type: Singlemode (OS2)
• Core/Cladding: 9/125 µm
• Configuration: Duplex
• Connector A: LC-UPC
• Connector B: LC-APC
• Length: 7.5 Metres
• Jacket Material: LSZH
• Jacket Colour: Yellow
• Insertion Loss: ≤0.3 dB (typical)
• Return Loss: ≥50 dB (LC-UPC), ≥60 dB (LC-APC)
• Cable Diameter: 2.0 mm
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Compliance: RoHS, CE, TIA/EIA-568-C.3, IEC 61754-20, IEC 61755-3-1

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is polarity-sensitive (A-B, B-A); verify orientation as needed.
