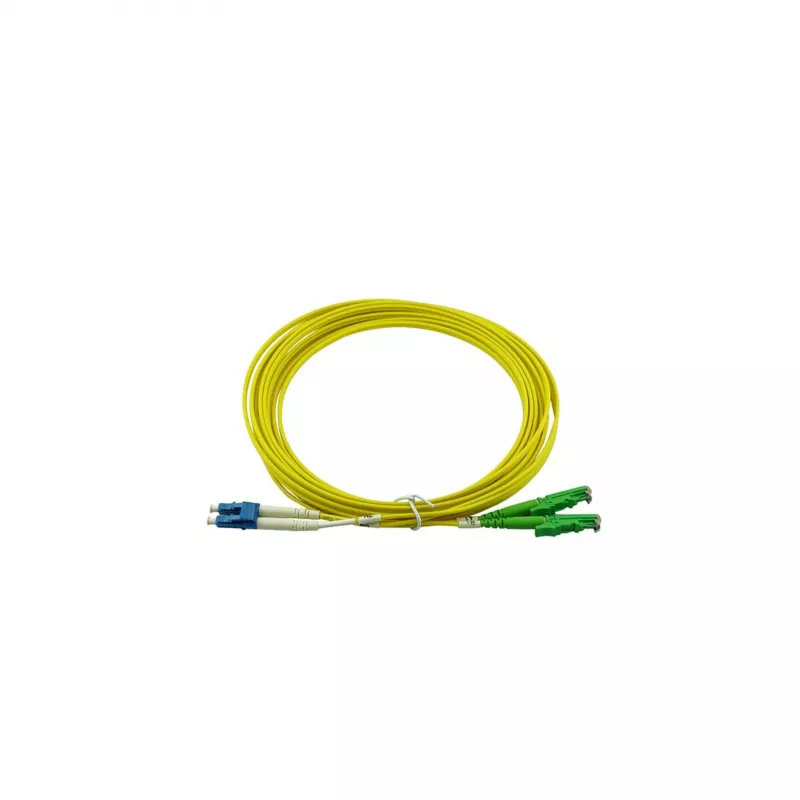

BlueOptics Cavo patch in fibra ottica duplex, LC-UPC su E2000-APC, monomodale OS2, 1 m, blu/verde

The BlueOptics Duplex Fibre Optic Patch Cable provides a high-performance connection for single-mode networks. With LC-UPC to E2000-APC connectors and a length of 1 metre, this cable ensures low insertion loss and high return loss, making it ideal for critical data transmission applications.

Advantages

Low insertion loss (<0.3 dB) and high return loss (>50 dB UPC, >60 dB APC) ensure reliable signal integrity. The LSZH jacket provides safety in enclosed spaces. Durable zirconia ceramic ferrules guarantee long-term performance.

Suitable for

• Data centres
• Telecommunications networks
• FTTx installations
• High-speed data transmission

Key specifications

• Cable Type: Duplex Fibre Optic Patch Cable
• Fibre Type: Single Mode (OS2)
• Fibre Standard: E9/125µm (G.652.D / G.657.A1)
• Connector A: LC-UPC
• Connector B: E2000-APC
• Connector Polish: UPC (A) / APC (B)
• Cable Length: 1 metre
• Jacket Colour: Blue/Green
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Diameter: 3.0 mm
• Insertion Loss: <0.3 dB typical
• Return Loss: >50 dB (UPC), >60 dB (APC)
• Operating Wavelengths: 1310nm, 1550nm
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Minimum Bend Radius: 10 mm
• Ferrule Material: Zirconia Ceramic
• Compliance: RoHS, CE, IEC 61754, TIA/EIA-604

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is compatible with standard LC and E2000 ports.
