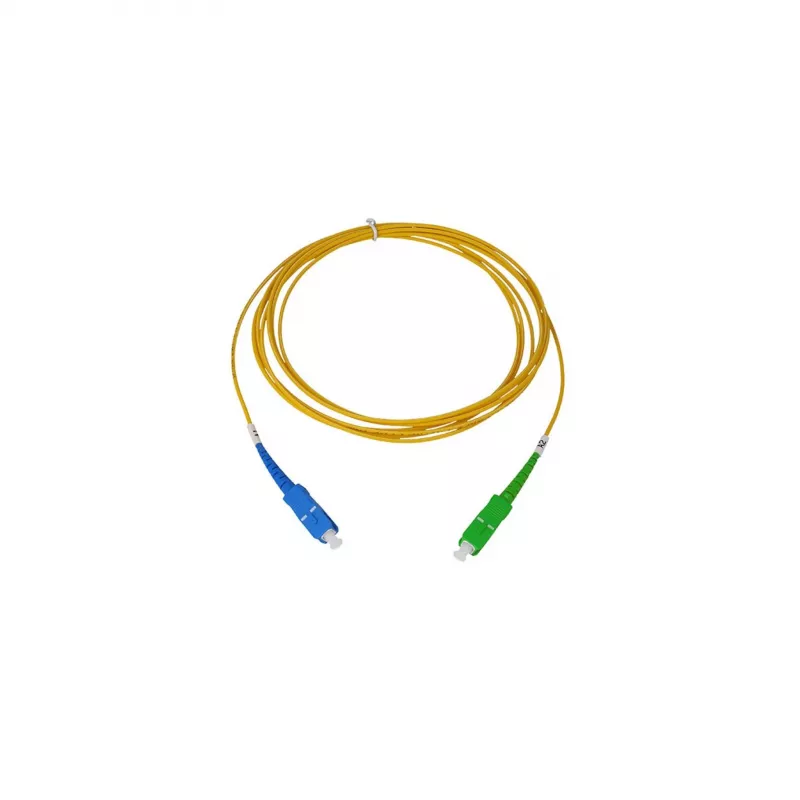

BlueOptics cavo patch in fibra ottica simplex, SC-UPC a SC-APC, monomodale OS2, 9/125µm, LSZH, blu/verde, 30 m

The BlueOptics SFP2222BU30MS is a high-quality simplex fibre optic patch cable designed for reliable single-mode connections. Featuring SC-UPC (blue) to SC-APC (green) connectors, this 30-metre cable ensures low insertion loss and high return loss, making it ideal for demanding network environments. The LSZH (Low Smoke Zero Halogen) jacket provides safety in confined spaces, while the 9/125µm core/cladding supports 1310 nm and 1550 nm wavelengths.

Advantages

This cable offers exceptional signal integrity with typical insertion loss ≤0.3 dB and return loss ≥50 dB (UPC) / ≥60 dB (APC). The zirconia ceramic ferrules ensure durability and precise alignment. Its simplex construction is perfect for point-to-point links, and the colour-coded boots (blue for UPC, green for APC) prevent connector mismatch.

Suitable for

• Data centres requiring high-density cabling
• Telecommunications networks (FTTx, PON)
• LAN and WAN infrastructure
• Test and measurement equipment

Key specifications

• Cable Type: Simplex Fibre Optic Patch Cable
• Fibre Mode: Single Mode (OS2)
• Core/Cladding: 9/125 µm
• Connector A: SC-UPC (Blue Boot)
• Connector B: SC-APC (Green Boot)
• Length: 30 m
• Jacket Material: LSZH
• Jacket Colour: Blue
• Insertion Loss: ≤0.3 dB typical
• Return Loss: ≥50 dB (UPC), ≥60 dB (APC)
• Operating Wavelengths: 1310 nm, 1550 nm
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is compatible with all standard SC port devices. Store in a clean, dry environment.
