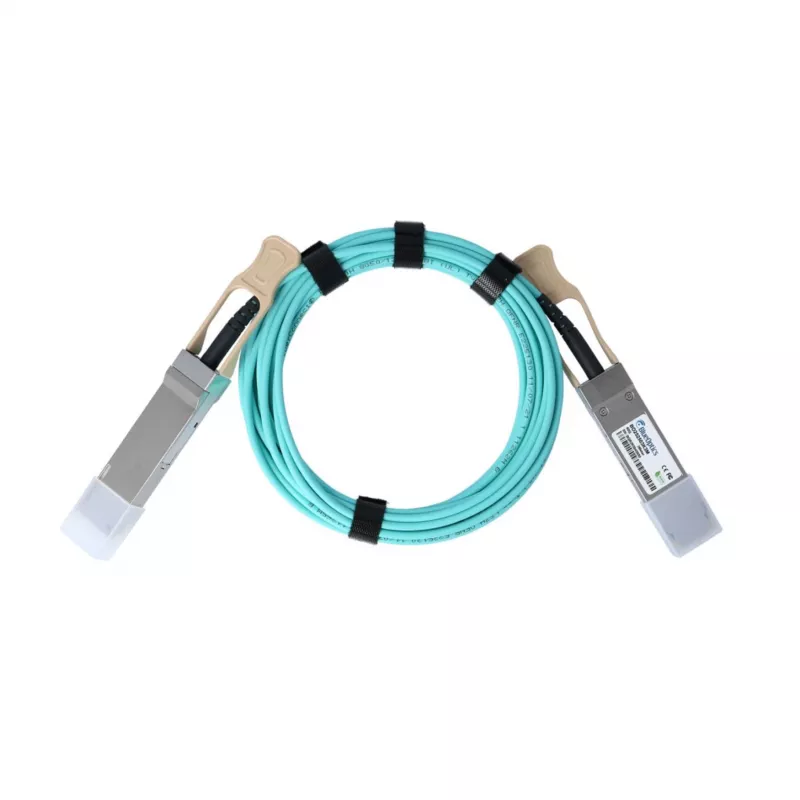

BlueOptics QSFP-AOC-3M-SG-BO Cavo ottico attivo (AOC) compatibile Synology QSFP+, 40GBASE-SR4, 3m, LSZH

The BlueOptics QSFP-AOC-3M-SG-BO is a high-performance Active Optical Cable (AOC) designed for 40 Gigabit Ethernet connectivity. This cable is fully compatible with Synology networking equipment and other QSFP+ 40GBASE-SR4 compliant devices, providing reliable and high-speed data transmission over multimode fiber.

Advantages

This Active Optical Cable offers significant advantages over traditional copper cabling, including longer reach, lighter weight, and immunity to electromagnetic interference. With a length of 3 meters, it is ideal for short-range interconnects within data centers and enterprise networks. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in enclosed spaces.

Suitable for

• Data center interconnect (DCI) applications
• High-performance computing (HPC) clusters
• Enterprise networking and server connectivity
• Synology NAS and switch uplinks

Key specifications

• Cable Type: Active Optical Cable (AOC)
• Connector Type: QSFP+ to QSFP+
• Data Rate: 40 Gbps
• Ethernet Standard: 40GBASE-SR4
• Cable Length: 3 meters
• Fiber Type: Multimode Fiber (MMF)
• Wavelength: 850 nm
• Power Consumption: < 1.5 W
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Operating Temperature: 0°C to 70°C
• Compliance: RoHS, CE, FCC, MSA Compliant

Recommendations

For optimal performance, ensure that both ends of the cable are connected to QSFP+ ports that support 40GBASE-SR4. This cable is hot-swappable and requires no configuration. It is recommended for use in controlled environments with proper cable management.
