BlueOptics Synology QSFP-100G-AOC-2M Cavo ottico attivo AOC QSFP28 compatibile 2m

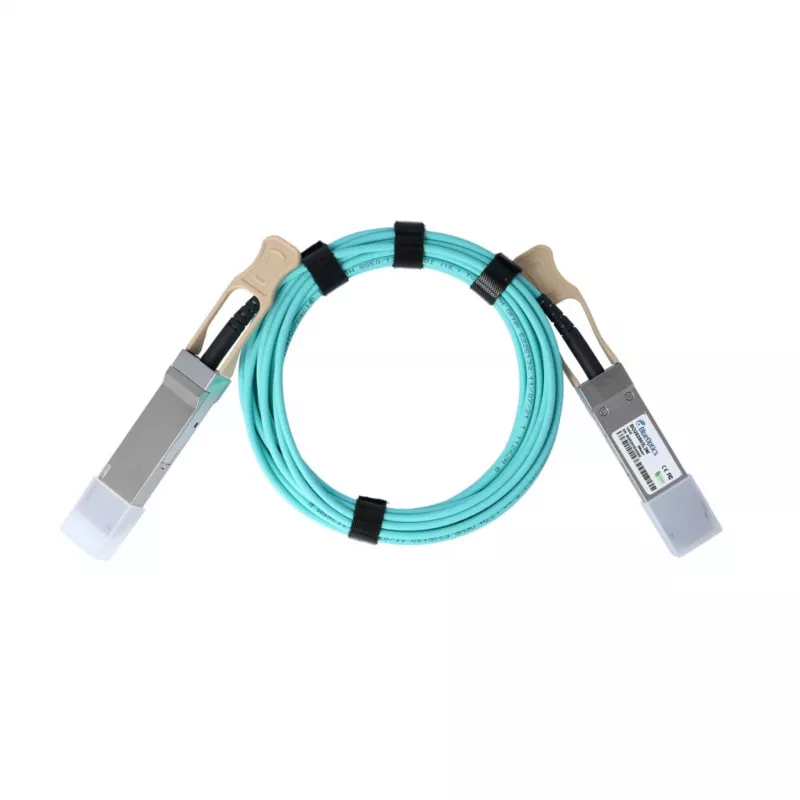

The BlueOptics BO282803L2M is a high-performance Active Optical Cable (AOC) designed for seamless compatibility with Synology QSFP-100G-AOC-2M networking equipment. This QSFP28 to QSFP28 cable delivers 100 Gbps data rates over a 2-meter length, making it ideal for high-speed data center interconnects and enterprise networks.

Advantages

This AOC cable offers significant advantages over traditional copper cabling, including longer reach, lighter weight, and immunity to electromagnetic interference. With hot-swappable QSFP28 connectors on both ends, installation is quick and tool-free. The cable consumes less than 2.5W per end, ensuring energy efficiency in dense deployments.

Suitable for

• Data center top-of-rack to server connections
• High-performance computing (HPC) clusters
• Enterprise network backbone links
• Synology storage systems requiring 100G connectivity

Key specifications

• Form Factor: QSFP28
• Data Rate: 100 Gbps (4x 25Gbps NRZ)
• Cable Length: 2 meters (6.56 ft)
• Connector Type: QSFP28 to QSFP28
• Fiber Type: Multimode Fiber (MMF)
• Wavelength: 850 nm
• Power Consumption: < 2.5W per end
• Voltage: 3.3V
• Hot-Swappable: Yes
• Standards: MSA Compliant, IEEE 802.3bm (100GBASE-SR4)
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Jacket Material: PVC
• Protocol Support: Ethernet, InfiniBand
• Laser Type: VCSEL

Recommendations

For optimal performance, ensure your network equipment supports QSFP28 100G modules and is configured for AOC cabling. This cable is plug-and-play with Synology QSFP-100G-AOC-2M compatible ports.
