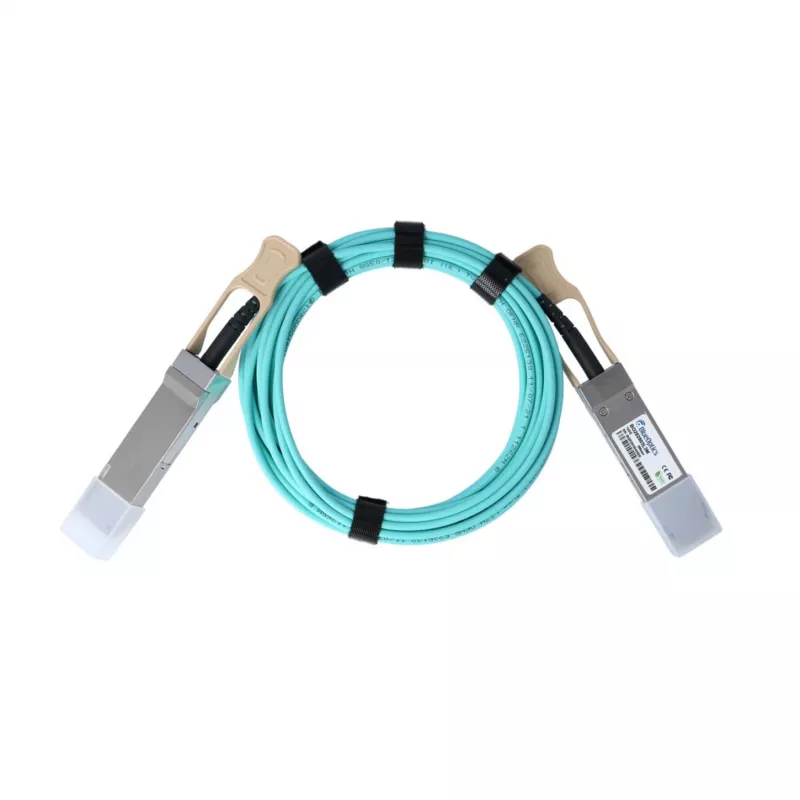

BlueOptics Synology QSFP-100G-AOC-3M Cavo ottico attivo AOC QSFP28 compatibile 3m

The BlueOptics Q28-AOC-3M-SG-BO is a high-performance Active Optical Cable (AOC) designed for seamless compatibility with Synology QSFP-100G-AOC-3M networking equipment. This 3-meter cable delivers 100 Gigabit Ethernet connectivity over multimode fiber, ideal for data center interconnects and high-performance computing environments.

Advantages

This AOC cable offers low power consumption (<2.5W per end), hot-swappable convenience, and full Digital Diagnostic Monitoring (DDM) for real-time performance tracking. Its MSA-compliant design ensures interoperability with a wide range of QSFP28 ports, while the robust PVC jacket provides durability for long-term use.

Suitable for

• Data center interconnect (DCI) applications
• High-performance computing (HPC) clusters
• Enterprise networking and server connectivity
• Synology storage systems requiring 100G uplinks

Key specifications

• Cable Type: Active Optical Cable (AOC)
• Connector Type: QSFP28 to QSFP28
• Data Rate: 100 Gigabit Ethernet (100GBASE-SR4)
• Cable Length: 3 meters
• Fiber Type: Multimode Fiber (MMF)
• Wavelength: 850 nm
• Number of Lanes: 4 Tx / 4 Rx
• Power Consumption: <2.5W per end
• Hot-Swappable: Yes
• Digital Diagnostic Monitoring (DDM): Yes
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Supply Voltage: 3.3V
• Compliance: MSA Compliant, RoHS, CE, FCC
• Jacket Material: PVC

Recommendations

For optimal performance, pair this cable with compatible Synology QSFP28 ports or other MSA-compliant 100G switches. Ensure proper handling to avoid damage to the optical connectors.
