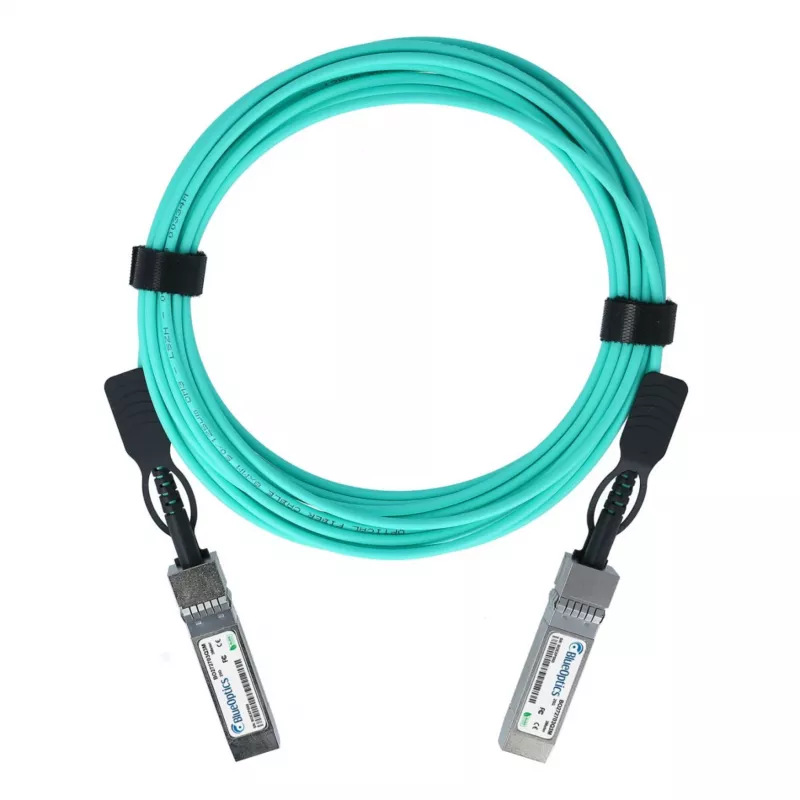

BlueOptics TP-Link SFP28-AOC-30M cavo ottico attivo AOC SFP28 compatibile 30m

The BlueOptics BO272703Q30M is a high-performance Active Optical Cable (AOC) designed for 25 Gigabit Ethernet networks. It is fully compatible with the TP-Link SFP28-AOC-30M, providing a reliable and cost-effective solution for data center and enterprise connectivity. With a length of 30 meters, it offers flexible deployment options for high-speed interconnects.

Advantages

This AOC cable delivers ultra-low latency and high EMI/RFI protection, ensuring stable data transmission. It supports Digital Diagnostic Monitoring (DDM) for real-time performance monitoring. The LSZH jacket material makes it suitable for environments with strict fire safety requirements.

Suitable for

• 25 Gigabit Ethernet (25GbE) networks
• Data center top-of-rack to server connections
• High-performance computing clusters
• Enterprise network upgrades

Key specifications

• Cable Type: Active Optical Cable (AOC)
• Connector Type: SFP28 to SFP28
• Data Rate: 25 Gbps
• Cable Length: 30 meters
• Compatibility: TP-Link SFP28-AOC-30M compatible
• Hot-Swappable: Yes
• Power Consumption: < 1.0W per end
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Supply Voltage: 3.3V
• Standards Compliance: SFF-8402, SFF-8431, SFF-8472, IEEE 802.3by (25GBASE-SR)
• Fiber Type: Multi-mode Fiber (MMF)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Application: 25 Gigabit Ethernet (25GbE)
• Latency: Ultra-low
• EMI/RFI Protection: High
• Diagnostic Monitoring: DDM Support
• Certifications: RoHS, CE, FCC

Recommendations

For optimal performance, ensure that both ends of the cable are connected to compatible SFP28 ports. This cable is ideal for short-reach, high-bandwidth connections within racks or between adjacent racks.
