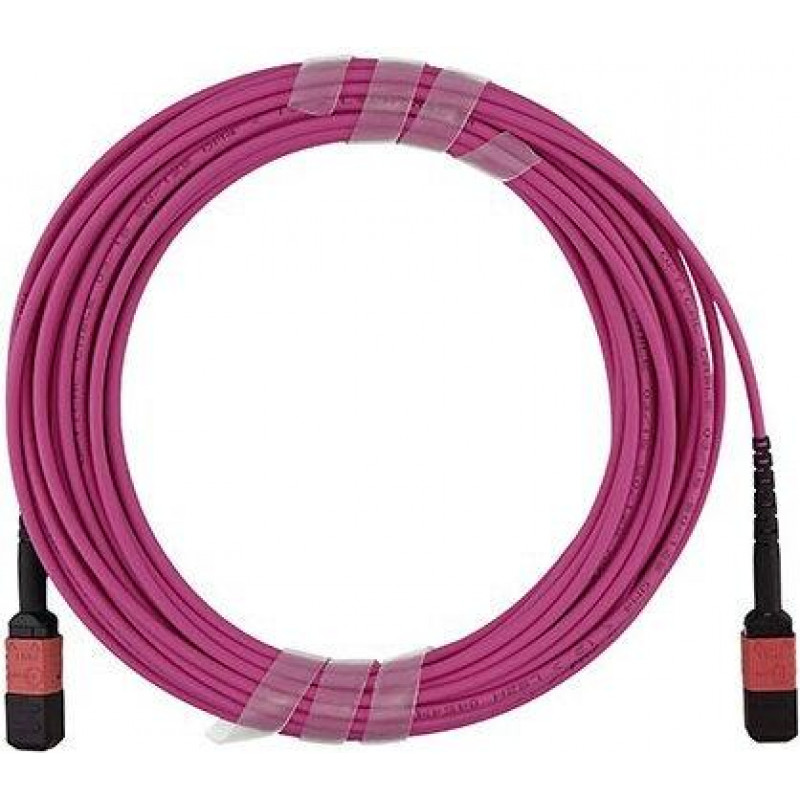

BlueOptics Ubiquiti UACC-OFC-MA-MPMP-2M cavo patch MPO-MPO multimodale OM4 2 metri

High-density fibre links demand precision and reliability, and the BlueOptics UACC-OFC-MA-MPMP-2M MPO-MPO Multimode OM4 Patch Cable delivers exactly that. Engineered for Ubiquiti UACC-OFC-MA-MPMP-2M compatible systems, this 2-metre cable provides a robust 12-fibre connection with Type B cross-over polarity, ensuring seamless integration in modern data centres and enterprise networks. Its OM4 multimode fibre supports high-speed data transmission up to 100G and beyond, making it an essential component for bandwidth-intensive applications.

Who is it for

This patch cable is ideal for network engineers, data centre managers, and IT professionals who require dependable, high-performance fibre connectivity in high-density environments. It suits deployments involving 10G, 40G, 100G, and 400G Ethernet, Fibre Channel, OIF, and InfiniBand protocols. Whether you are upgrading existing infrastructure or building new high-speed links, this cable offers the performance and durability needed for mission-critical operations.

Main features

• MPO male to MPO male connectors with 12 fibres for high-density connections
• OM4 multimode fibre supports 10G/40G/100G/400G Ethernet and beyond
• Type B (cross-over) polarity for correct transmit/receive alignment
• Low insertion loss (≤ 0.35 dB) and high return loss (≥ 20 dB) for signal integrity
• LSZH (Low Smoke Zero Halogen) jacket in aqua colour for safety and easy identification
• Durable 3.0 mm cable diameter with a minimum bend radius of 7.5 mm for flexible routing
• Wide operating temperature range from -20°C to 70°C for diverse environments
• Compliant with RoHS, CE, TIA/EIA-568-C.3, and IEC-61754-7 standards

Specifications

• Cable type: Fibre optic patch cable, multimode OM4
• Connector A: MPO male
• Connector B: MPO male
• Cable length: 2 metres
• Number of fibres: 12
• Polarity: Type B (cross-over)
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket colour: Aqua
• Insertion loss: ≤ 0.35 dB
• Return loss: ≥ 20 dB
• Minimum bend radius: 7.5 mm
• Operating temperature: -20°C to 70°C
• Storage temperature: -40°C to 85°C
• Cable diameter: 3.0 mm
• Compatibility: Ubiquiti UACC-OFC-MA-MPMP-2M
• Applications: 10G/40G/100G/400G Ethernet, Fibre Channel, OIF, InfiniBand
• Standards compliance: RoHS, CE, TIA/EIA-568-C.3, IEC-61754-7

Tips

To maximise performance, avoid exceeding the minimum bend radius during installation and use proper cable management to prevent stress on connectors. Clean MPO connectors before each mating to maintain low insertion loss. For high-density environments, consider colour-coding with aqua jackets to quickly identify OM4 multimode links.
