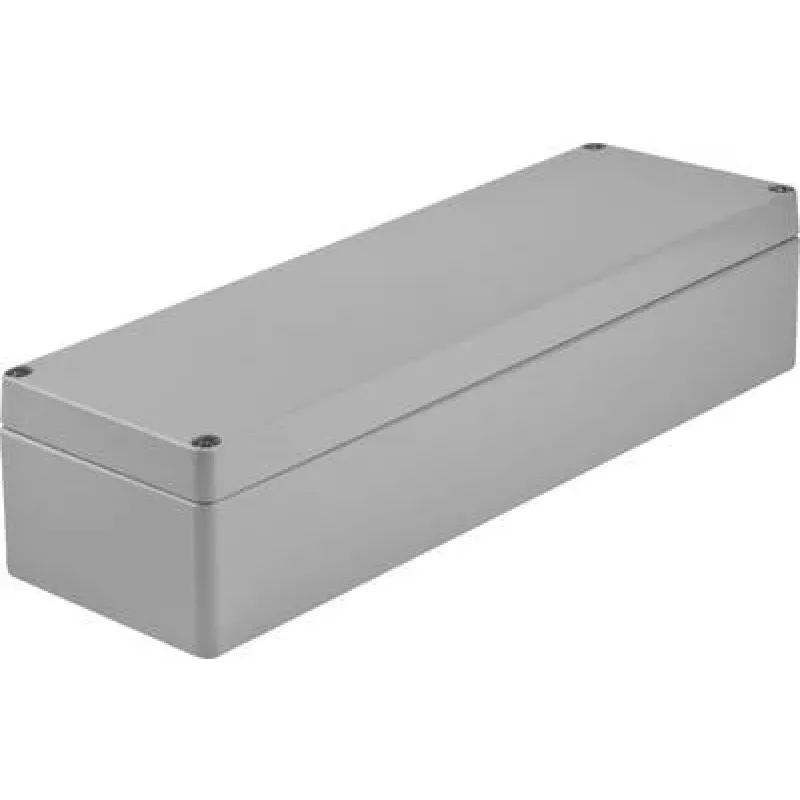

Bopla custodia universale 360 x 120 x 81 mm alluminio grigio argento (RAL 7001) A 124 01124000.H

Industrial electronics need robust protection against dust and water. The Bopla Universal Enclosure 360 x 120 x 81 mm provides a durable aluminium housing with IP65 protection, keeping sensitive components safe in demanding environments.

Who is it for

Engineers and system integrators building control systems, measurement equipment, or automation devices that require a rugged, corrosion-resistant enclosure.

Main features

• Aluminium construction with powder-coated silver-grey finish (RAL 7001)
• External dimensions: 360 mm length, 120 mm width, 81 mm height
• IP65 protection against dust and water jets
• Stainless steel lid screws and neoprene gasket for secure sealing
• Internal mounting bosses/channels for DIN rails or mounting plates

Specifications

• Material: Aluminium
• Colour: Silver-Grey (RAL 7001)
• External dimensions: 360 x 120 x 81 mm
• Internal dimensions (approx.): 355 x 115 x 76 mm
• Wall thickness: 2.5 mm
• Protection class: IP65
• Lid fastening: Stainless steel screws
• Gasket material: Neoprene
• Surface finish: Powder-coated
• Operating temperature range: -40°C to +100°C
• RoHS compliance: Yes

Tips

Use the internal mounting bosses to install DIN rails or custom mounting plates. Pair with appropriate cable glands to maintain the IP65 rating.
