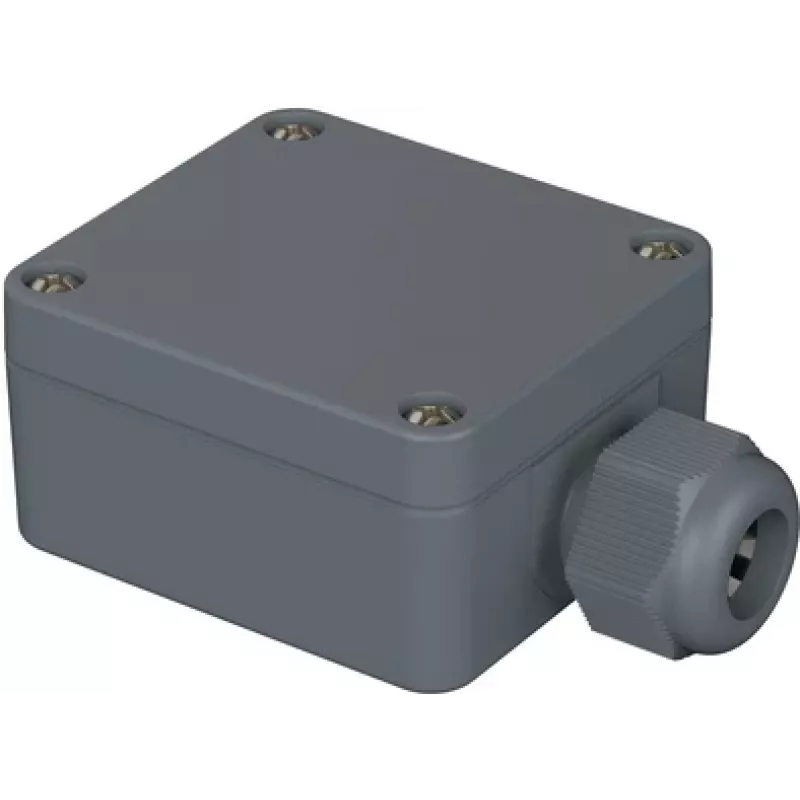

BOPLA custodia universale poliammide grigio argento (RAL 7001) 58 x 64 x 34 PK 101-111

Protecting sensitive electronics from dust, moisture, and impact requires a robust housing that doesn't compromise on space or accessibility. The BOPLA Universal Enclosure PK 101-111 offers a compact, wall-mountable solution for industrial and outdoor applications, combining a durable polyamide body with a secure screw-on lid.

Who is it for

Engineers and technicians needing a reliable enclosure for PCBs, DIN rail components, or small control systems in harsh environments. Ideal for automation, IoT devices, and electrical installations where IP65 protection is required.

Main features

• Polyamide (PA) construction, silver-grey (RAL 7001), smooth surface finish
• External dimensions: 58 mm width x 64 mm length x 34 mm height
• IP65 protection against dust and water jets
• IK07 impact resistance
• Operating temperature range: -40°C to +100°C
• Flammability rating UL 94 V-2
• Lid secured with 4 stainless steel screws
• Integrated mounting bosses for PCBs or DIN rails
• PUR (polyurethane) gasket for reliable sealing
• Halogen-free and RoHS compliant

Specifications

• Material: Polyamide (PA)
• Colour: Silver-grey (RAL 7001)
• External dimensions: 58 x 64 x 34 mm (W x L x H)
• Protection class: IP65
• Impact resistance: IK07
• Temperature range: -40°C to +100°C
• Flammability rating: UL 94 V-2
• Lid fastening: 4x stainless steel screws
• Gasket material: PUR (polyurethane)
• Mounting: Wall/surface mountable, integrated bosses for PCBs/DIN rails
• Halogen-free: Yes
• RoHS compliant: Yes

Tips

For outdoor installations, pair with a cable gland suitable for the enclosure's wall thickness to maintain the IP65 rating. The integrated mounting bosses simplify PCB assembly without additional brackets.
