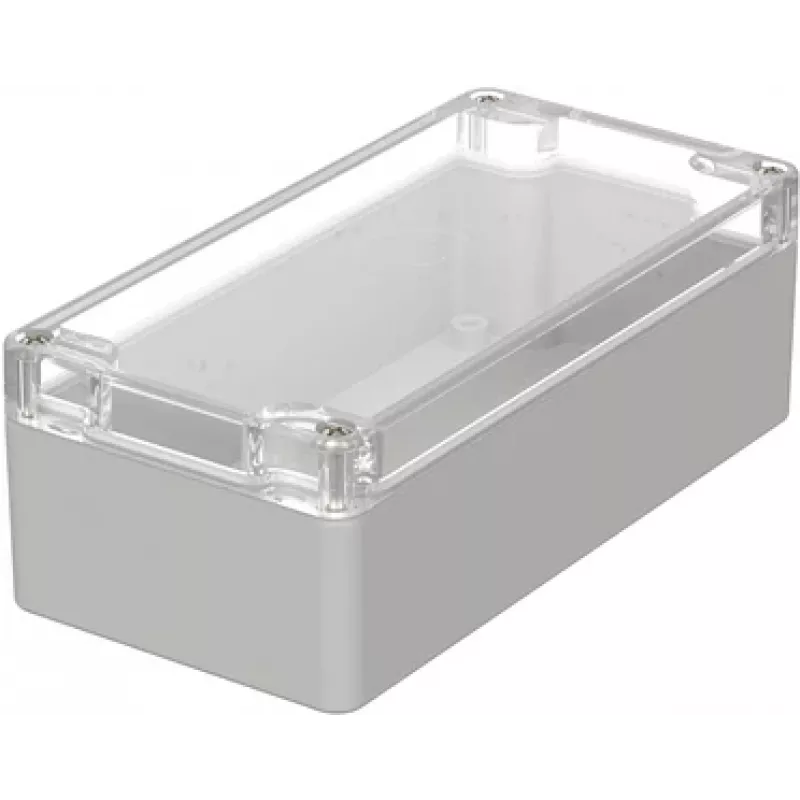

Bopla EUROMAS M 220 G custodia universale 160 x 80 x 55 mm policarbonato grigio chiaro 02220100

Protect sensitive electronics from dust, moisture, and mechanical impact with the Bopla EUROMAS M 220 G universal enclosure. Its robust polycarbonate body and IP65-rated sealing keep components safe in demanding industrial environments.

Who is it for

Engineers and technicians who need a reliable housing for control units, sensors, or junction boxes in machinery, automation, or outdoor installations.

Main features

• Dimensions: 160 x 80 x 55 mm (L x W x H)
• Material: Polycarbonate (PC), light grey (RAL 7035)
• Protection class: IP65
• Flammability rating: UL 94 V-2
• Operating temperature: -40 °C to +100 °C
• Lid fastened with stainless steel screws
• Impact resistance: IK07
• UV resistant and halogen-free
• Gasket material: polyurethane

Specifications

• Brand: Bopla
• Model: EUROMAS M 220 G
• MPN: 02220100
• EAN: 4016138745474
• Enclosure type: Universal enclosure
• Material: Polycarbonate (PC)
• Colour: Light grey
• Protection class: IP65
• Flammability rating: UL 94 V-2
• Operating temperature: -40 °C to +100 °C
• Impact resistance: IK07
• UV resistance: Yes
• Halogen-free: Yes
• Gasket material: Polyurethane
• Lid design: Solid
• Lid fastening: Stainless steel screws

Tips

For wall mounting, use the internal mounting bosses to secure PCBs or DIN rails. The polyurethane gasket ensures a tight seal; inspect it regularly in high-vibration environments.
