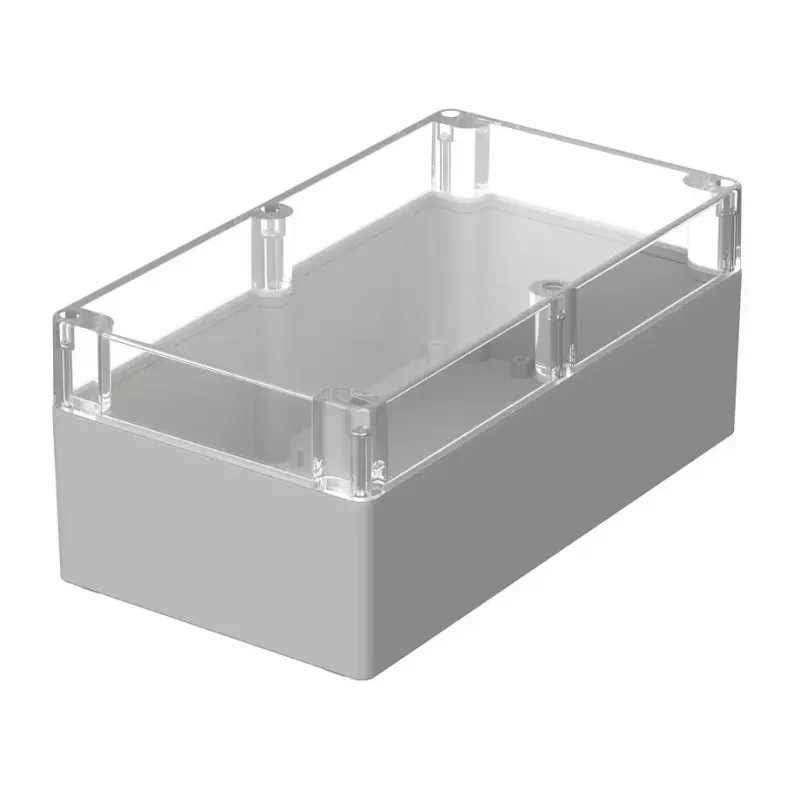

Bopla Euromas M 255 G custodia universale 360 x 200 x 150 mm policarbonato grigio chiaro 02255100

Protect sensitive electronics in demanding environments with the Bopla Euromas M 255 G universal enclosure. Its robust polycarbonate body and secure lid keep dust and water jets out, while the light grey finish suits industrial and commercial installations.

Who is it for

Engineers and technicians needing a reliable housing for control units, measurement devices, or junction boxes in factories, outdoor sites, or washdown areas.

Main features

• Dimensions: 360 x 200 x 150 mm (L x W x H)
• Material: Polycarbonate, light grey (RAL 7035)
• Protection class IP65 – dust-tight and protected against water jets
• Impact resistance IK07
• Operating temperature: -40 °C to +80 °C
• Flammability rating UL 94 V-0
• Stainless steel captive lid screws
• Polyurethane (PUR) gasket
• Wall mounting possible, internal mounting bosses
• Opaque lid
• Halogen-free
• Glow-wire test: 960 °C (IEC 60695-2-11)

Specifications

• Enclosure type: Universal enclosure
• External dimensions (L x W x H): 360 x 200 x 150 mm
• Material: Polycarbonate
• Colour: Light grey (RAL 7035)
• Protection class: IP65
• Impact resistance: IK07
• Operating temperature: -40 °C to +80 °C
• Flammability rating: UL 94 V-0
• Lid screws: Stainless steel, captive
• Gasket material: Polyurethane (PUR)
• Mounting: Wall mounting possible, internal mounting bosses
• Lid design: Opaque
• Halogen-free: Yes
• Glow-wire test: 960 °C (IEC 60695-2-11)

Tips

Pair with a Bopla mounting plate or cable glands to complete the installation. The captive screws prevent loss during maintenance.
