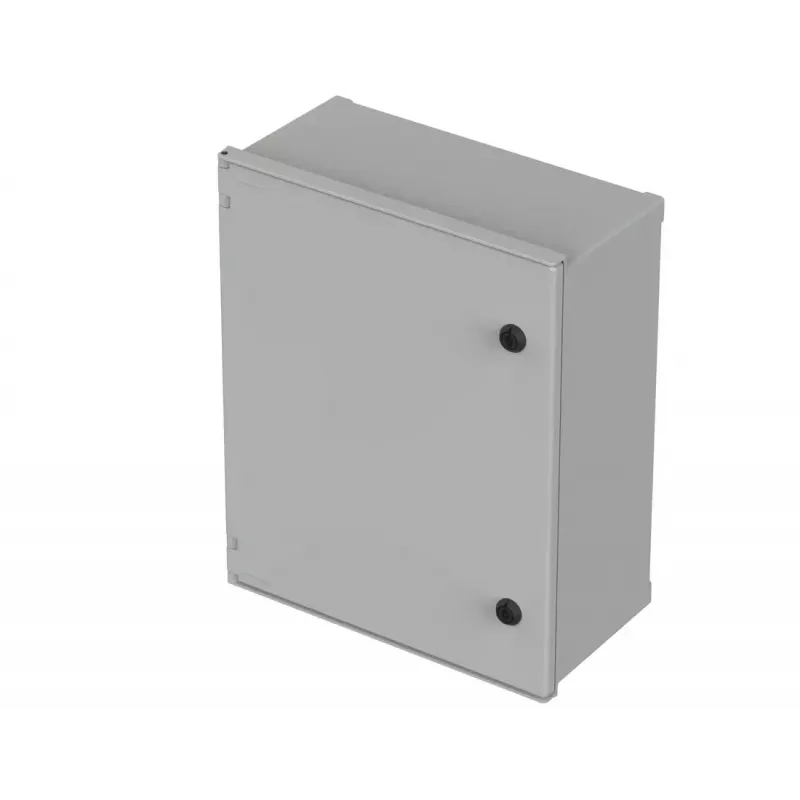

Bopla PS 542 case a parete, 500 x 400 x 200 mm, grigio chiaro (RAL 7035), IP66, IK10, GRP 42154200

Engineered for demanding environments, the Bopla PS 542 wall-mounted enclosure combines IP66 protection with IK10 impact resistance, ensuring reliable performance in industrial settings.

Overview

The Bopla PS 542 is a robust wall-mounted enclosure constructed from glass-fibre reinforced polyester (GRP), offering excellent chemical resistance and UV stability. Its light grey finish (RAL 7035) provides a professional appearance suitable for various applications.

What stands out

• IP66 rating protects against dust and powerful water jets.
• IK10 impact resistance withstands severe mechanical stress.
• Wide operating temperature range from -40 °C to +100 °C.
• Screw-fastened lid with six stainless steel screws ensures secure closure.
• Polyurethane gasket maintains sealing integrity.
• External mounting brackets simplify installation.
• Internal mounting bosses allow flexible component placement.

Technical details

• Material: Glass-fibre reinforced polyester (GRP)
• Colour: Light Grey (RAL 7035)
• Protection Class: IP66
• Impact Resistance: IK10
• Operating Temperature: -40 °C to +100 °C
• Lid Fastening: 6 stainless steel screws
• Gasket Material: Polyurethane (PU)
• Flammability Rating: UL 94 V-0
• UV Resistance: Yes
• Chemical Resistance: Good against many acids, alkalis, and oils
• Mounting Type: Wall mounting via external brackets
• Internal Mounting: Mounting bosses for plates/DIN rails
• Certifications: UL, cUL, VDE, Germanischer Lloyd

Our verdict

A reliable enclosure for harsh industrial environments, offering excellent protection and durability.
