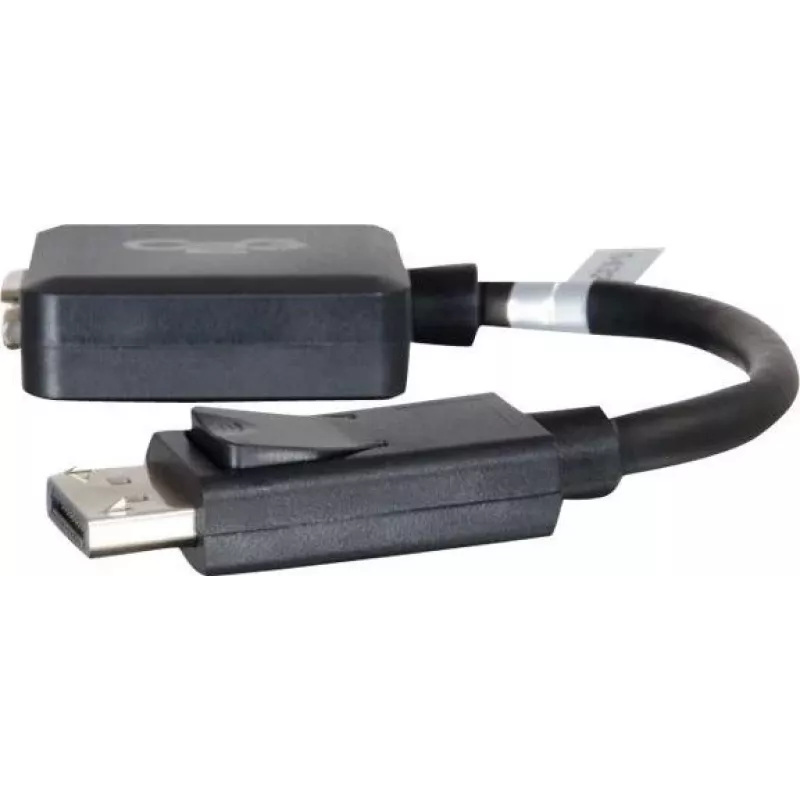

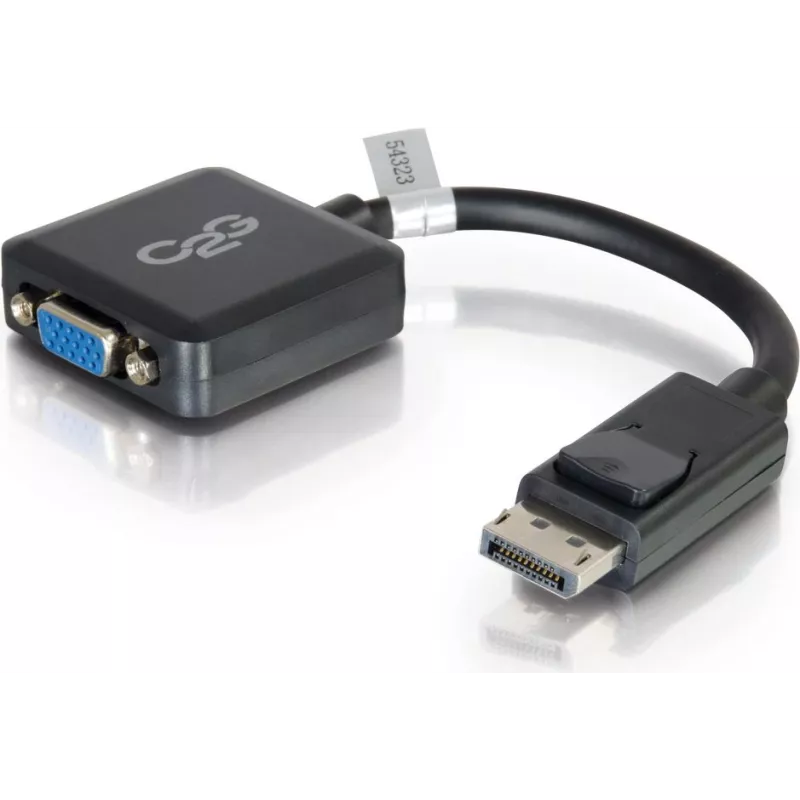

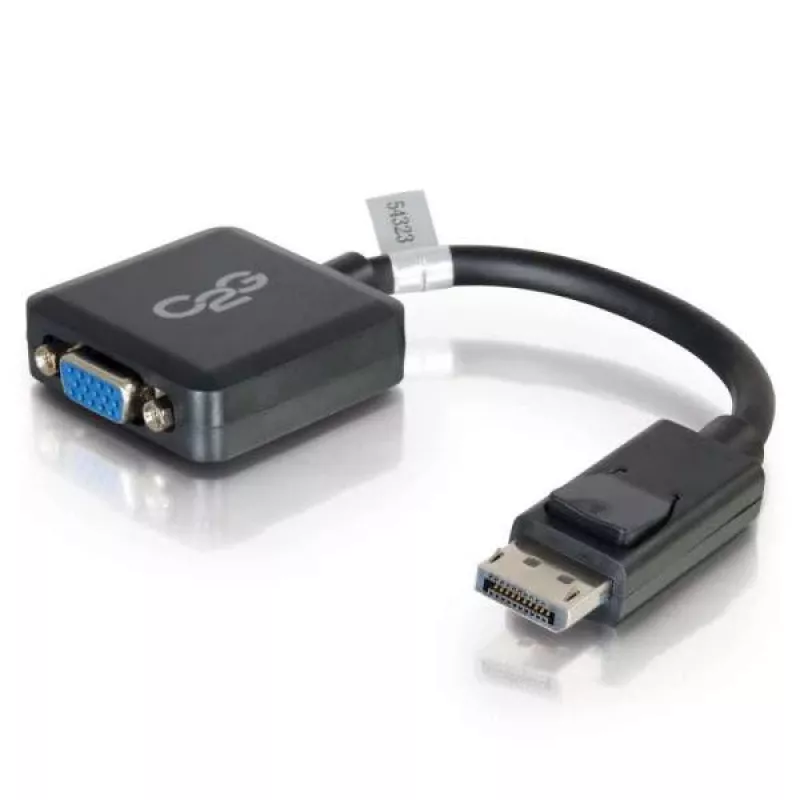

C2G Cavo adattatore attivo DisplayPort maschio a VGA femmina 20cm 84323

This 20 cm adapter cable converts a DisplayPort output into a VGA female port, letting you connect a modern laptop or desktop to an older VGA monitor or projector without replacing the display. The active converter handles the digital-to-analog signal conversion inside the cable, so no external power supply is needed.

Highlights

• DisplayPort male to VGA female
• Active converter chipset supports resolutions up to 1920 x 1200 (WUXGA) and 1080p
• Bus-powered from DisplayPort source – no external power adapter required
• Compact 20 cm length for tidy connections
• Foil and braid shielding with nickel-plated connectors

In daily use

Plug the DisplayPort end into your computer and connect a standard VGA cable from the female port to the display. The adapter handles EDID and signal conversion automatically, so the monitor is detected as a VGA device. Because VGA is analog, audio is not transmitted; use a separate audio cable if needed.

Full specifications

• Connector 1: DisplayPort male
• Connector 2: VGA (D-Sub) female
• Cable length: 0.2 m
• Maximum resolution: 1920 x 1200 / 1080p
• Adapter type: Active converter
• Colour: Black
• Power source: Bus-powered
• Audio support: No
• HDCP support: Not applicable
• Jacket material: PVC
• Shielding: Foil and braid
• Connector plating: Nickel
• Operating temperature: 0°C to 70°C
• Storage temperature: -10°C to 80°C

Final note

Ideal for connecting a DisplayPort-equipped laptop to a legacy VGA projector or monitor in conference rooms and classrooms.
