Cavo DeLOCK DL4 solare piatto connettore maschio su femmina 1 m nero 3,3 mm²

The DeLOCK DL4 Solar Flat Cable male to female 1 m black 3.3 mm² is a 1 m photovoltaic cable designed to transmit power from solar modules. It has a male-to-female DL4 connector pair and a 3.3 mm² conductor cross-section in a flat, flexible black sheath suitable for routing through tight openings and window bushings.

Advantages

The DL4 connectors feature a snap-in mechanism that prevents accidental disconnection while allowing release with the appropriate tool. The cable is rated IP67 against dust and moisture and the flexible flat design improves strain resistance and ease of installation in narrow spaces.

Suitable for

• Connecting photovoltaic modules to inverters or junction boxes
• Routing solar power through narrow channels or window bushings
• Outdoor solar installations requiring dust- and water-resistant connections

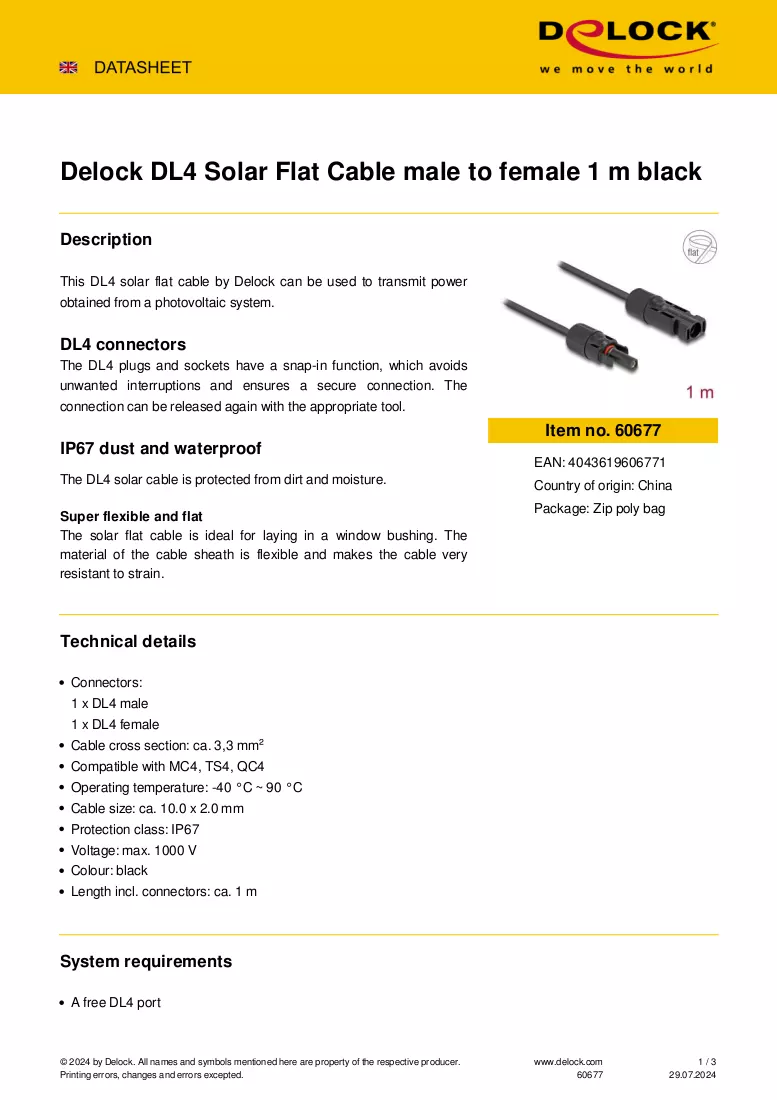

Key specifications

• Length: 1 m
• Connector: DL4 male to DL4 female
• Conductor cross-section: 3.3 mm²
• Colour: black
• Protection rating: IP67 (dust and waterproof)

How to use

Connect the DL4 male plug to the corresponding DL4 female socket, ensuring the snap-in engagement is audible. Use an appropriate release tool to disconnect when required. Route the flat cable through the intended opening or window bushing and secure it to prevent mechanical stress at the connector joints.

Recommendations

For reliable performance, verify compatibility of DL4 connectors with your photovoltaic system and ensure the cable is not bent beyond its minimum bending radius. Inspect connectors and seals periodically for damage and avoid exposing the cable to sharp edges or excessive tensile loads.
