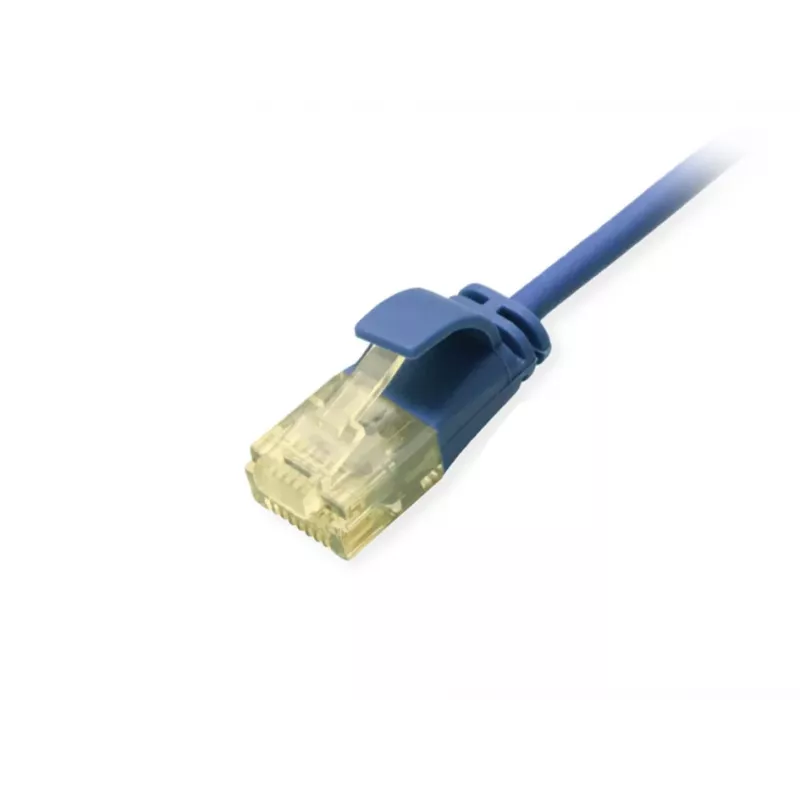

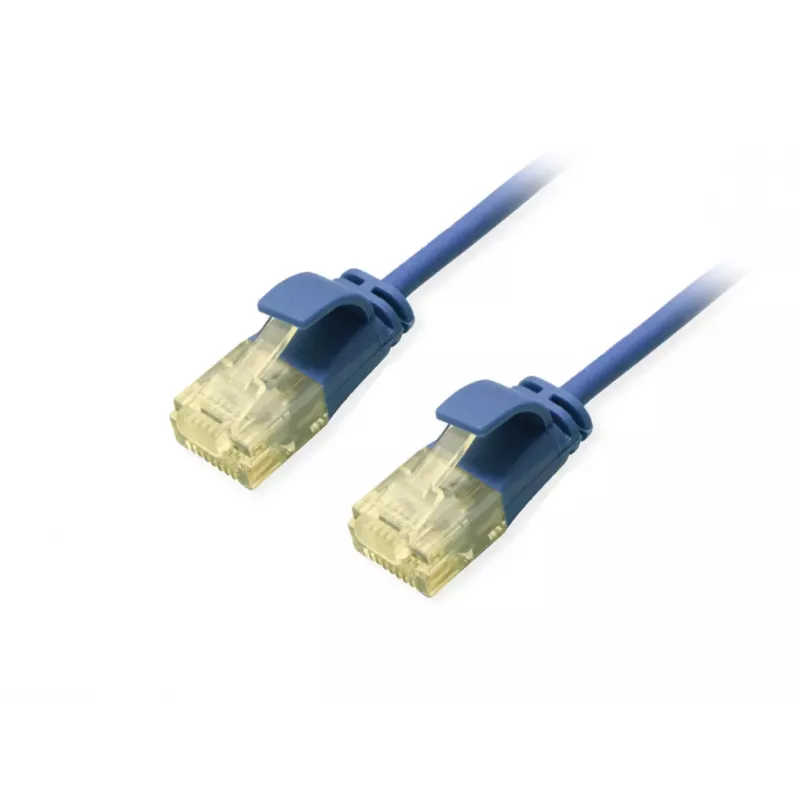

Cavo di rete Equip Cat.6A U/UTP cavo patch slim 5,0 m blu

The Equip Cat.6A U/UTP Slim Patch Cable 5.0m Blue is a slim, 5-metre network patch cable designed for high-speed data transfer up to 10 Gigabit Ethernet (10000 Mbit/s). With a reduced diameter (32 AWG) and unshielded twisted pair construction, this cable is intended for data centres, enterprise networks and high-density installations where space and airflow management are important. It features RJ-45 straight male connectors on both ends, stranded bare copper conductors and an LSZH jacket.

Advantages

The slim 32 AWG design reduces cable bulk and improves rack airflow and cable management without sacrificing support for 10GBase-T performance up to 500 MHz. Unshielded twisted pair (U/UTP) construction provides reliable transmission in low to moderate EMI environments, while stranded conductors and a moulded boot with strain relief increase flexibility and durability for frequent reconfigurations. The cable is RoHS compliant and uses a Low Smoke Zero Halogen (LSZH/LSOH) jacket for safer deployment in enclosed spaces.

Suitable for

• High-density patch panels and server racks
• Data centres and enterprise LANs
• Connections requiring 10 Gigabit Ethernet, Gigabit Ethernet and Fast Ethernet
• PoE and PoE+ powered devices
• Tight cable runs where reduced diameter is needed

Key specifications

• Length: 5 m
• Cable type: Cat.6A U/UTP (unshielded)
• Conductor: Stranded bare copper, 32 AWG
• Bandwidth: up to 500 MHz
• Data rate: up to 10 Gbit/s (10000 Mbit/s)
• Connectors: RJ-45 straight male — both ends
• Cabling technology: 10GBase-T
• PoE support: suitable for PoE, PoE+
• Jacket: Low Smoke Zero Halogen (LSZH/LSOH)
• Standards: ISO/IEC 11801, EN 50173
• Colour: Blue

How to use

Plug one RJ-45 connector into the network port of a switch, patch panel or device and the other connector into the destination port. Ensure connectors are fully seated and strain relief is positioned to avoid sharp bends near the ends. For best performance, avoid tight bends and sources of strong electromagnetic interference along the cable route. The cable is plug-and-play and supports PoE and PoE+ without additional configuration.

Recommendations

For optimal 10GBase-T performance, keep maximum channel lengths within standards for Cat6A and avoid bundling large numbers of cables in the same conduit where heat buildup could occur. Use proper patch panel routing to maintain airflow and reduce cable stress.
