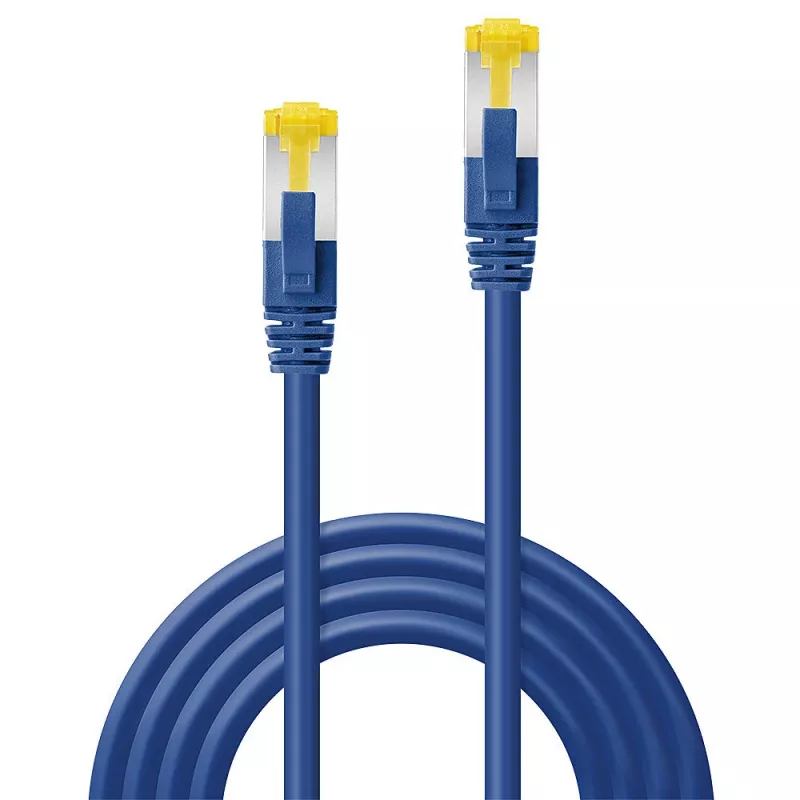

Cavo di rete Lindy 15m RJ45 Cat7 blu

Twisted pair patch cable with RJ45 connectors using Cat.6A connectors fitted onto a Cat.7 S/FTP (600 MHz) LSZH cable. The cable supports Ethernet standards up to 10GBase-T and is intended for use in data centres, server rooms, racks and structured network installations. Available lengths up to 30 m and multiple colours; gold-plated contacts and an integrated snagless strain relief protect the connector and ensure long-term reliable contact.

Advantages

The S/FTP construction provides total braided shielding with foil shielding on each pair, reducing crosstalk and external interference for operating frequencies up to 600 MHz. Gold-plated pins improve conductivity and resist corrosion. The integrated snagless design protects the connector latch during installation and removal. Cables are manufactured and tested to ISO/IEC 11801 and come individually packaged in polybags. A 10 year warranty is provided.

Suitable for

• High-speed LAN connections up to 10GBase-T
• Data centres and server rooms
• Rack and cabinet network installations
• Structured cabling where LSZH jacket is required

Key specifications

• Cable category: Cat.7 S/FTP (600 MHz)

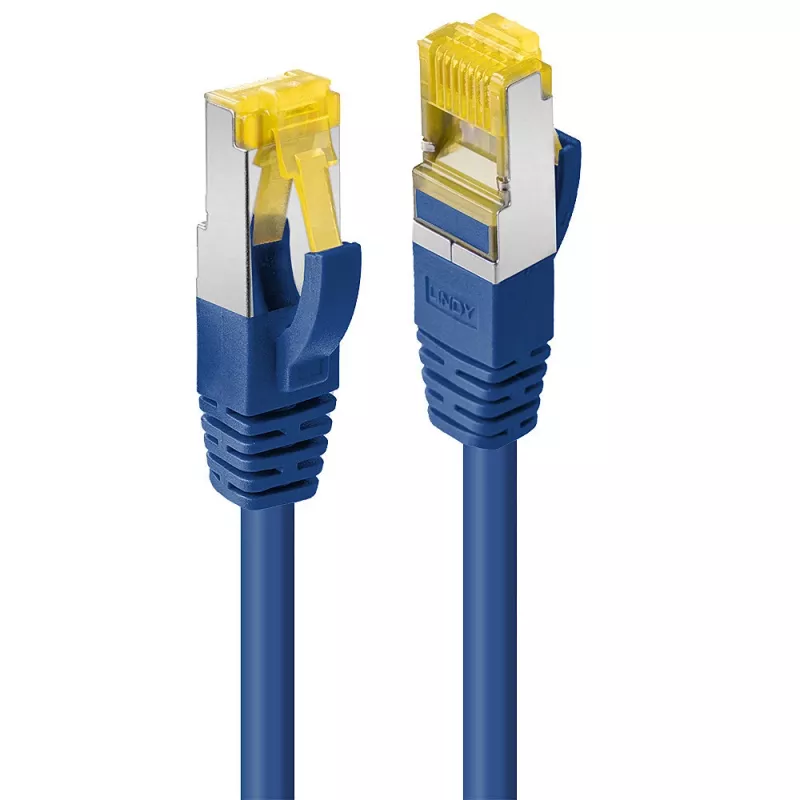

• Connector type: RJ45 (Cat.6A style)
• Shielding: S/FTP — braided overall shield + foil per pair
• Jacket: LSZH
• Contacts: Gold plated
• Standards/test: ISO/IEC 11801
• Available lengths: 0.3, 0.5, 1, 1.5, 2, 3, 5, 7.5, 10, 15, 20, 30 m
• Available colours: Black, Blue, Grey, Red, White
• Warranty: 10 years

How to use

Connect one RJ45 connector to the network device (switch, router, network card) and the other RJ45 connector to the corresponding port on the opposite device. Ensure the latch engages fully to secure the connection; the snagless strain relief helps protect the latch during insertion and removal. Route the cable to avoid sharp bends and strong electromagnetic sources for optimal transmission.

Recommendations

For installations requiring full Cat.7 performance, use the cable in shielded environments and terminate through compatible shielded connectors and patch panels. If rigid adherence to a Cat.7 connector standard is required, verify connector compatibility; the product uses RJ45-style Cat.6A connectors fitted on Cat.7 S/FTP cable.
