Cavo di rete SBOX UTP-305 CAT5E RJ45 305 m blu

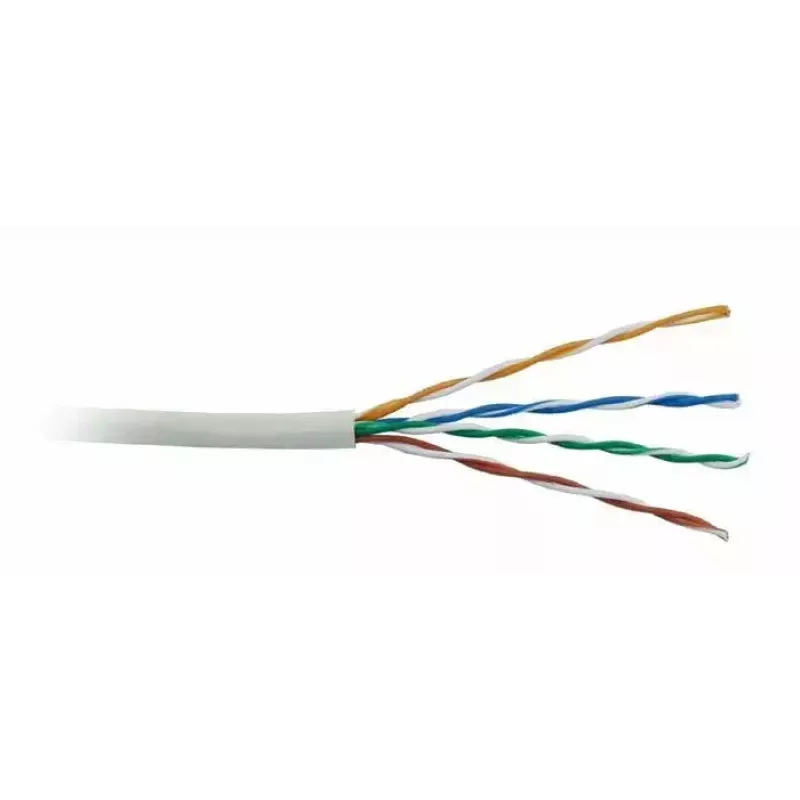

SBOX UTP-305 CAT5E is an unshielded twisted pair (UTP) network cable designed for structured Ethernet installations. The cable is 305 meters long, has four twisted pairs constructed as 4P x 7 x 0.16 CCA with AWG 26 conductors and is supplied in blue. It is intended for standard Cat5e applications including data and voice transmission over RJ45 connections.

Advantages

The SBOX UTP-305 CAT5E cable provides reliable Cat5e performance for gigabit Ethernet networks and typical LAN deployments. Its 305 m reel length reduces the need for multiple joins, while the 4 twisted pairs and 26 AWG CCA construction offer consistent signal transmission for short-to-medium installation runs. The blue jacket allows easy identification in cable bundles.

Suitable for

• Ethernet networks up to 1000 Mbps (Cat5e)
• Home and small office LAN installations
• Patch panels, wall outlets and RJ45 socket terminations
• Horizontal cabling within buildings (short-to-medium distances)

Key specifications

• Type: UTP (Unshielded Twisted Pair)
• Category: Cat5e

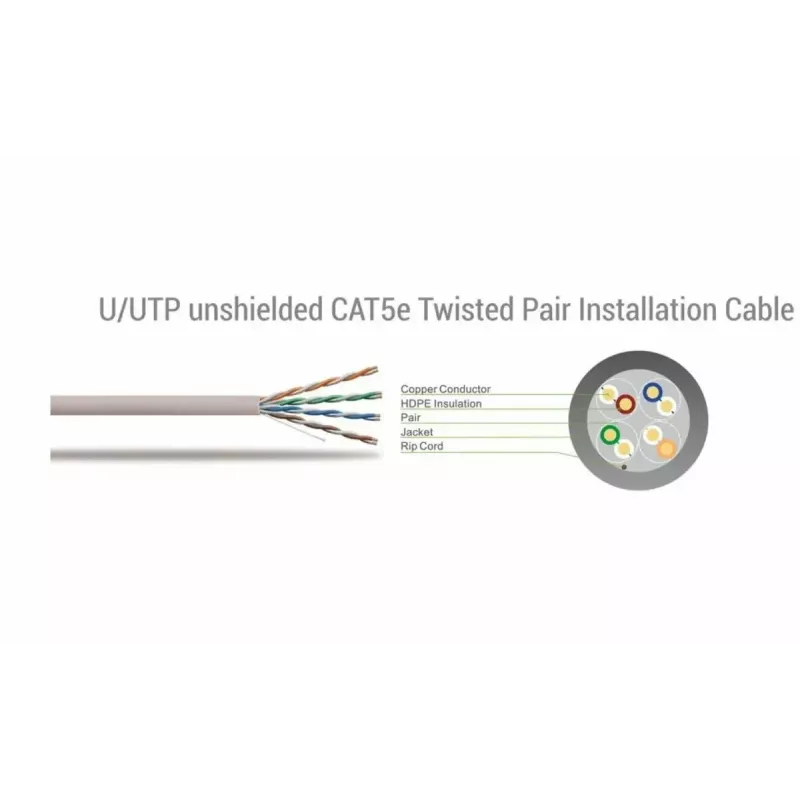

• Pairs / conductor: 4 twisted pairs, 4P x 7 x 0.16 CCA
• Conductor size: AWG 26 (CCA)
• Length: 305 m
• Color: Blue
• Connectors: for RJ45 termination (connectors not fitted)

How to use

Measure and cut the required length from the 305 m reel, strip the outer jacket carefully and separate the twisted pairs. Terminate the conductors into RJ45 plugs or patch panel keystone jacks following the T568A or T568B wiring standard. Test the completed link with a cable tester to verify continuity and correct pair wiring before deployment.

Recommendations

For best performance, avoid running the cable alongside high-voltage power lines, maintain appropriate bend radius to prevent conductor deformation, and limit link lengths to standard Ethernet recommendations. Use proper RJ45 connectors rated for 26 AWG conductors and consider shielded cable if operating in electrically noisy environments.
