Cavo in fibra ottica InfiniBand BlueOptics SFP3132FU7.5MK 7,5 m LC SC

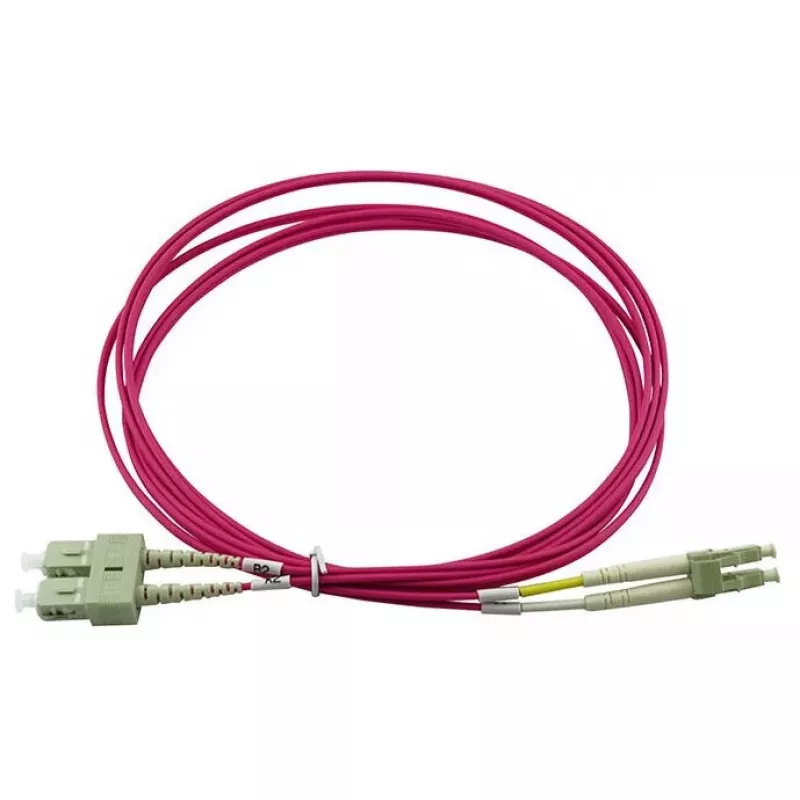

The BlueOptics SFP3132FU7.5MK is a 7.5 m InfiniBand fibre optic patch cable designed for multimode optical links. It uses OM4 (G50/125 µm) laser-optimized multimode fibre in a duplex configuration with LC/UPC connectors on one end and SC/UPC on the other. The cable is intended for full-duplex 850 nm transmission, features a flame-retardant LSZH jacket in magenta, and is suitable for connecting patch panels, optical transceivers and other multimode devices in data centre and enterprise network environments.

Advantages

This fibre cable delivers low attenuation (approximately 2.5 dB/km) and low insertion loss combined with high return loss. Connectors use zirconia ceramic ferrules for reliable mating and are produced by established manufacturers; the assembly is tested with interferometer and OTDR and ships with measurement data for insertion loss and return loss. The LSZH jacket reduces smoke and halogen emissions compared with PVC sheathing and the cable is manufactured to meet relevant industry standards.

Suitable for

Key specifications

How to use

Install the cable by inserting the LC and SC connectors into matching ports on patch panels, transceivers or networking devices. Ensure connectors and ports are clean before mating; use appropriate protective caps during storage and handling. Route the cable following standard bend-radius guidelines for multimode fibre and secure it to avoid tight bends or mechanical stress. Verify link performance with appropriate testing equipment after installation.

Recommendations

To maintain performance, clean connector endfaces with approved fibre cleaning tools before connection, avoid bending below the manufacturer’s minimum bend radius, and store or route the cable away from high-heat sources. Use the supplied test report to confirm insertion loss and return loss meet your system requirements.
