Cavo in fibra ottica Lanview LVO230502-MTP InfiniBand 2 m OM4 MTP LC

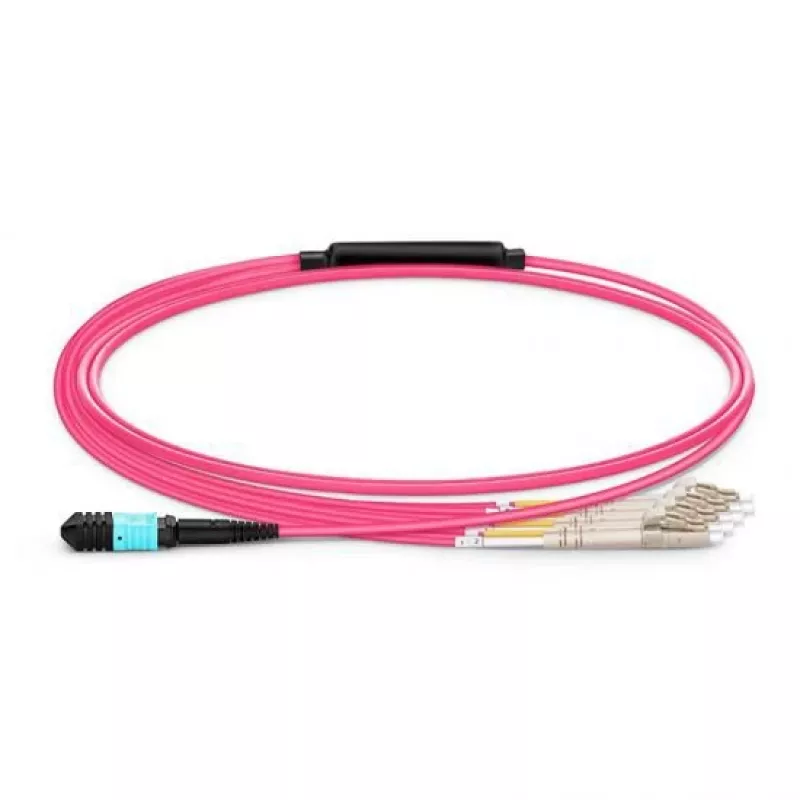

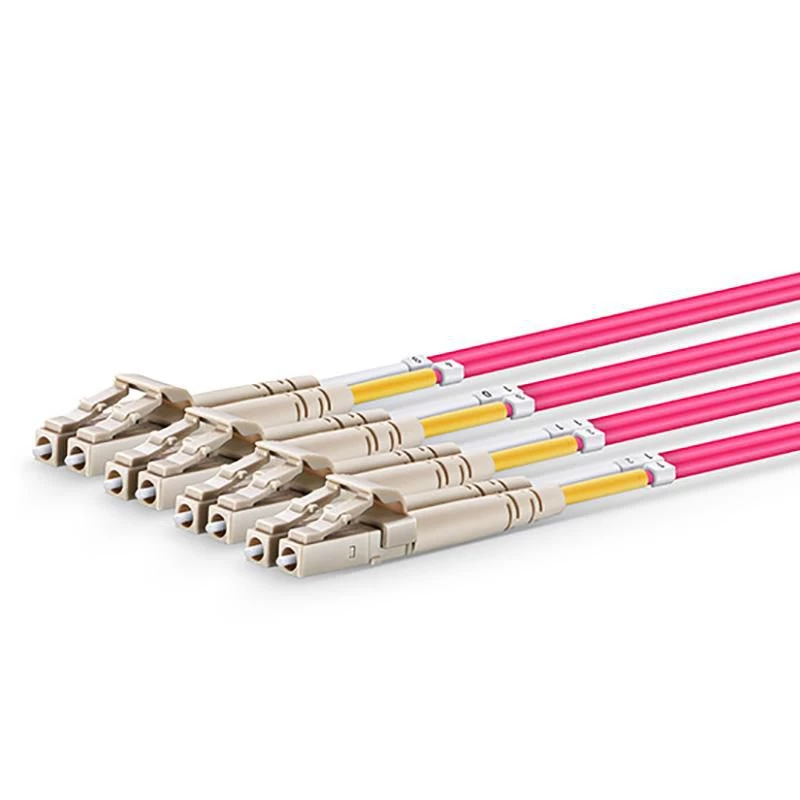

The Lanview LVO230502-MTP is a 2 m OM4 multimode fibre optic patch cord with MTP (female) to LC (male) connectors and UPC polish. Designed for high-speed networks and InfiniBand environments, this 50/125 µm cable supports full-duplex transmission for 10G/40G/100G Ethernet, 40G BIDI SR, 10G SR, QSFP+ and SFP+ transceivers. The jacket is Low Smoke Zero Halogen (LSZH) and the cable meets common industry standards for multimode fibre performance.

Advantages

This OM4 MTP to LC cable offers improved bandwidth and lower modal dispersion compared with lower-grade multimode fibres, making it suitable for high-density and high-speed links in data centers. Precision-molded MT ferrules and high-precision guide pins ensure accurate connector alignment and low insertion loss. The LSZH jacket reduces smoke and toxic emissions in case of fire, and the violet OM4 fibre colour helps with easy identification in multi-fibre installations.

Suitable for

• Data center uplinks and spine-leaf connections
• InfiniBand and high-speed Ethernet links (10G/40G/100G)
• Connections to QSFP+, SFP+ and 40G BIDI SR transceivers
• High-density patch panels and multi-fibre cabling systems

Key specifications

• Brand: Lanview
• MPN: LVO230502-MTP
• EAN: 5704174870890
• Type: OM4 multimode fibre optic patch cord (50/125 µm)
• Length: 2 m
• Connectors: MTP (female) to LC (male)
• Connector polish: UPC
• Mode: Full duplex multimode
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Colour: Violet

How to use

Route the Lanview LVO230502-MTP cable between the required MTP-equipped trunk or cassette and the LC port on a switch, transceiver or patch panel. Ensure connectors are clean and free of dust before mating. Align the MTP connector with the cassette or adapter guide, then insert the LC into the corresponding LC socket until it latches. Avoid sharp bends and maintain the minimum bend radius specified for multimode fibre to prevent signal loss or damage.

Recommendations

For reliable performance, use this OM4 MTP–LC patch cord in structured cabling within data centers and equipment rooms. Clean connector endfaces with appropriate fibre cleaning tools before each connection, store unused connectors with dust caps, and follow manufacturer guidelines for bend radius and handling to preserve insertion loss and return loss characteristics.
