Cavo in fibra ottica LogiLink 0,5 m LC - LC

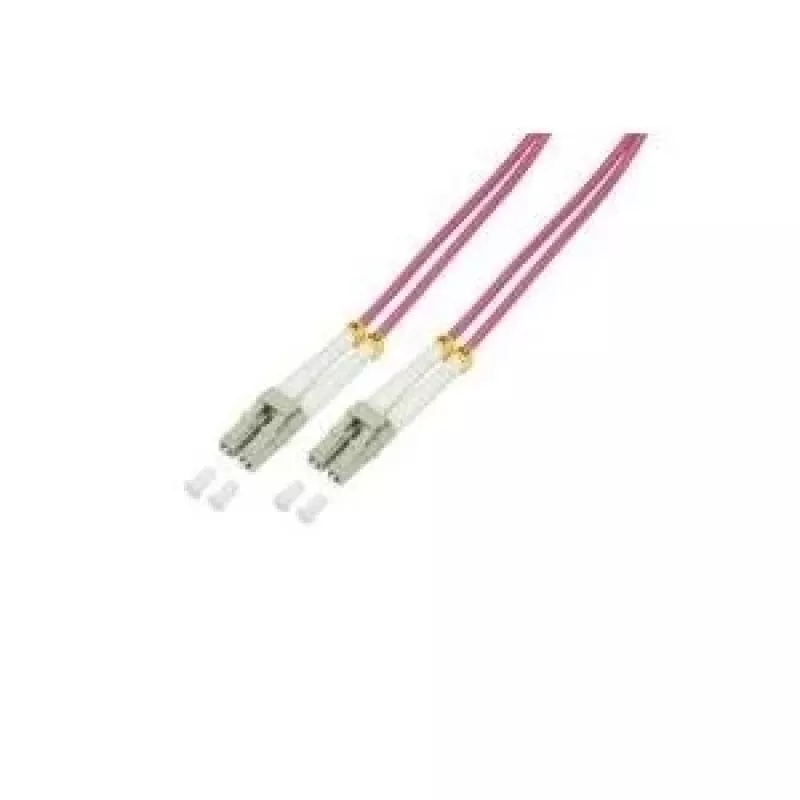

The LogiLink 0.5m LC - LC fibre optic cable is a duplex multimode jumper designed for high-speed data transmission in confined spaces. It uses OM4 I-VH 50/125 µm fibres with an LSZH outer jacket in erika violet and supports up to 40 Gbit/s over distances up to 125 m. Each cable is delivered with an individual measurement protocol and complies with DIN EN 50173-1 and IEC/ISO 11801 standards.

Advantages

This 0.5 m LC–LC cable provides full-duplex multimode transmission with low attenuation thanks to OM4 fibres (50/125 µm). The LSZH jacket reduces toxic gas emission in case of fire, and the compact 3.0 mm outer diameter makes the cable suitable for dense cabling. Compliance with international standards and inclusion of an individual measurement protocol ensure traceable quality and predictable performance.

Suitable for

• Interconnects in data centres and server racks
• High-speed networking equipment with LC interfaces
• Short-distance links where space is limited (patch panels, switches)

Key specifications

• Connector type: LC — LC
• Length: 0.5 m
• Fibre type: Multimode I-VH OM4, 50/125 µm
• Jacket: LSZH, erika violet, Ø 3.0 mm
• Duplex: Yes
• Maximum application: up to 40 Gbit/s / 125 m
• Standards: DIN EN 50173-1, IEC/ISO 11801
• Quality: Supplied with individual measurement protocol

How to use

Connect each LC connector to corresponding LC ports on active equipment or patch panels, observing proper polarity for duplex links. Route the cable avoiding sharp bends and pinch points; maintain minimum bend radius as recommended for 3.0 mm multimode cable. Before commissioning, check the supplied measurement protocol and verify link performance with appropriate test equipment if required.

Recommendations

For best results, use this OM4 LC–LC jumper in short, high-density runs within racks or patch panels. Avoid excessive bending and mechanical strain, and store spares in protective packaging to preserve connector end-face cleanliness and measurement traceability.
