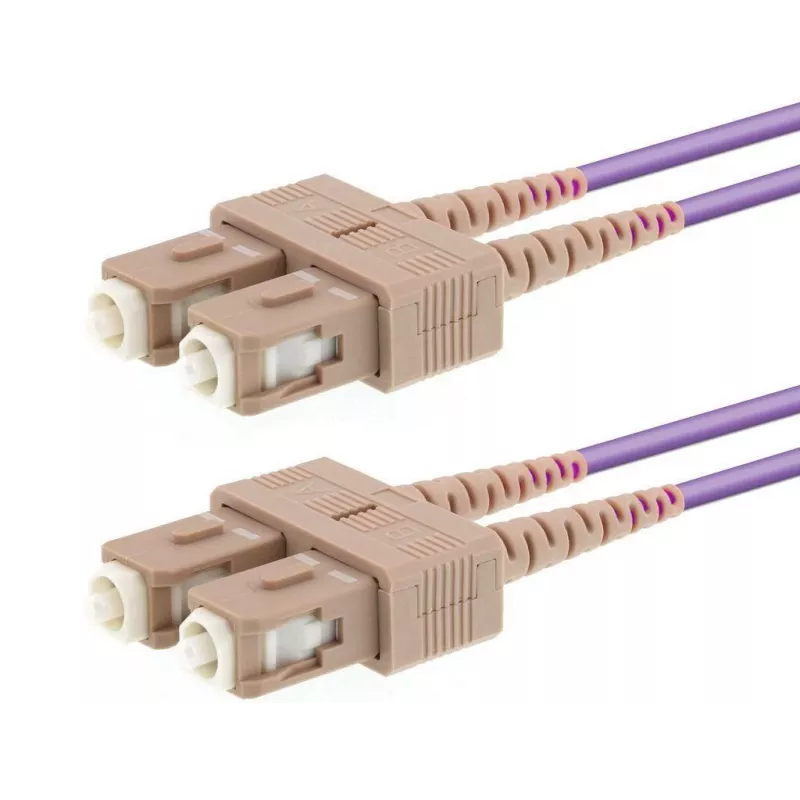

Cavo patch in fibra ottica LOGON 50/125 SC/SC 15 m OM4

LOGON Fiber patch cable 50/125 SC/SC 15 m OM4 is a multimode optical fiber cable designed for reliable short- to medium-distance data transmission. The cable uses a 50/125 µm core/cladding multimode fiber with OM4 specification, terminated with SC connectors on both ends and supplied in a 15 metre length. It is intended for local networks, data centers and backbone links where increased modal bandwidth and reduced attenuation are required compared with lower-grade multimode fibers.

Advantages

This OM4 multimode cable provides higher bandwidth and improved signal performance for high-speed Ethernet and Fibre Channel applications over short to medium distances. SC to SC connectors offer simple push-pull mating and stable mechanical connection. The 15 m length gives flexibility for patching between racks, panels and active equipment without additional splicing. The cable construction reduces insertion loss and is suitable for installation in structured cabling environments.

Suitable for

• Short- to medium-distance multimode links in enterprise LANs
• Data center patching between switches, servers and patch panels
• Backbone and horizontal cabling in commercial buildings
• High-speed Ethernet (10/40/100 Gbps) and Fibre Channel multimode runs where OM4 is supported

Key specifications

• Fiber type: Multimode 50/125 µm
• OM classification: OM4 (enhanced bandwidth for multimode)
• Connector type: SC to SC duplex terminated
• Length: 15 metres
• Polish type: Factory pre-terminated polished connectors (physical contact typical for SC)
• Typical applications: LAN, data center patching, backbone multimode segments

How to use

Route the patch cable between the two SC ports to be connected, ensuring the cable follows cable management paths to avoid sharp bends and mechanical strain. Clean connector endfaces with appropriate fiber cleaning tools before mating to reduce insertion loss and prevent contamination. Insert SC connectors into the matching SC adaptors or ports until they click into place. For disconnection, depress the SC latch and pull straight out without twisting.

Recommendations

Store the cable coiled with a gentle bend radius greater than the manufacturer’s recommended minimum; avoid compressing or kinking the fiber. Use OM4 multimode cable for runs where higher modal bandwidth is needed and ensure connected equipment supports OM4 performance to achieve expected data rates and distances.
