Cavo patch InLine S/FTP PiMF Cat.6 AWG27 PVC CU 100 m, bianco

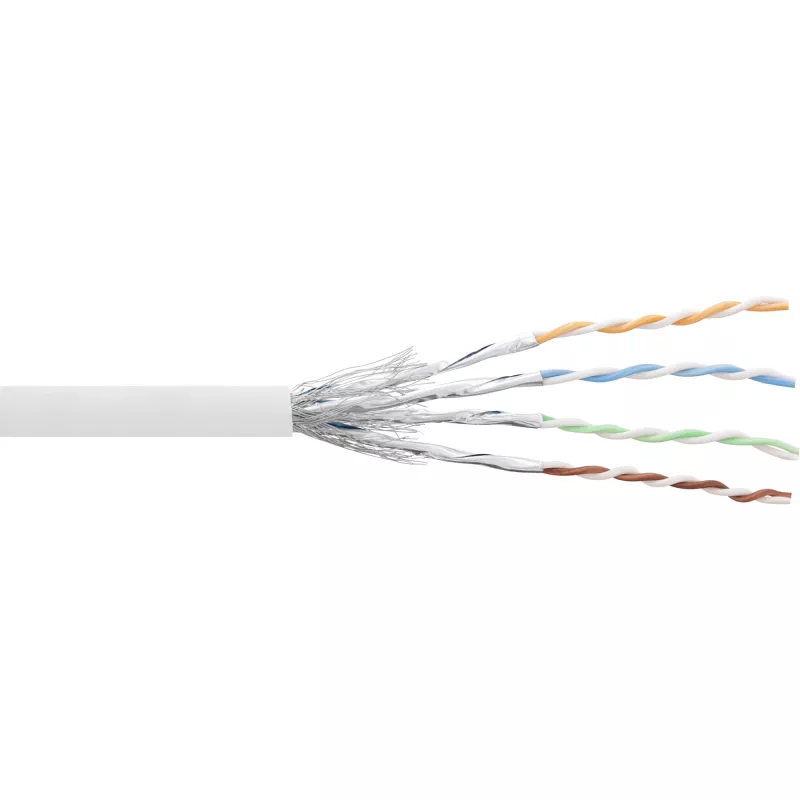

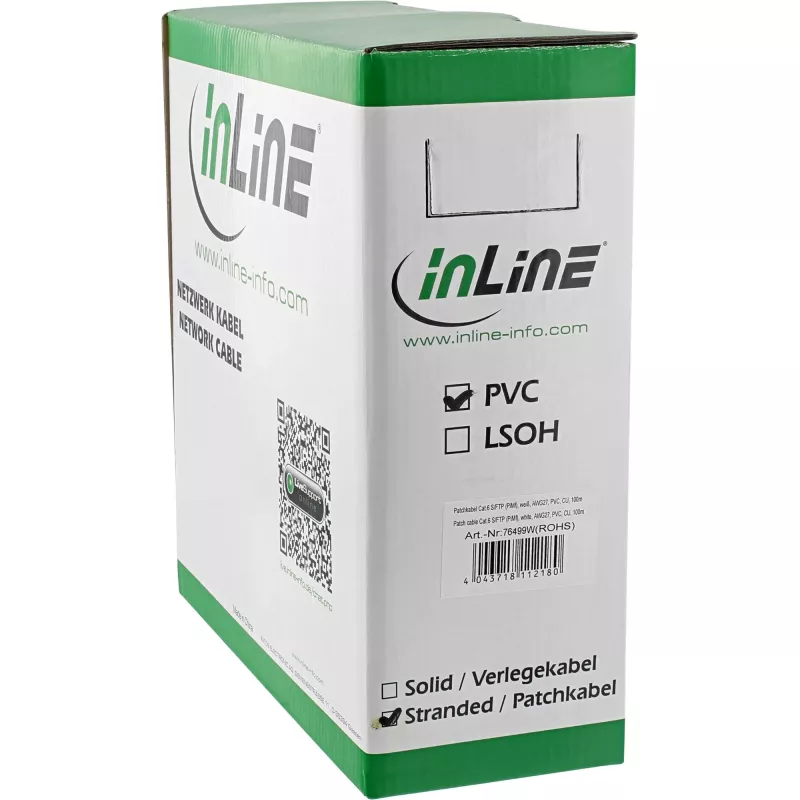

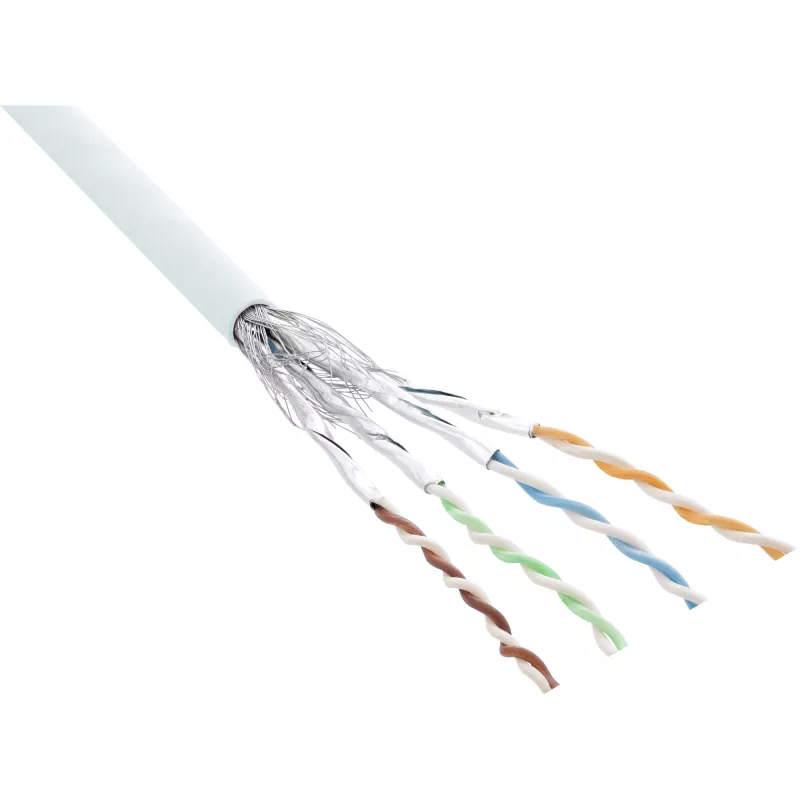

InLine S/FTP PiMF Cat.6 patch cable on a 100 m reel delivers category 6 performance for structured cabling and local network patching. The cable features four twisted pairs with pair-level aluminum foil (PiMF) and an overall braided shield (S/FTP), a full-copper AWG27 conductor set, and a white PVC outer jacket. Supplied on a 100 m spool, this cable is designed for on-site termination and custom-length patch cords in offices, server rooms and data closets, supporting Gigabit Ethernet speeds while reducing alien crosstalk and external interference.

Advantages

The combination of PiMF pair shielding and overall braid provides effective protection against electromagnetic interference and improves signal integrity across Cat.6 frequency ranges. AWG27 copper conductors ensure reliable conductivity and mechanical flexibility for easy routing and termination. The 100 m reel format is convenient for installers who need to create custom-length patch cables or perform structured cabling runs without pre-terminated connectors. The PVC jacket in white offers standard mechanical protection and visual integration with typical interior installations.

Suitable for

• Creating custom patch cords for office networks
• Structured cabling installations in commercial buildings
• Patching in server rooms and network closets
• Gigabit Ethernet and other copper-based LAN applications

Key specifications

• Category: Cat.6 (S/FTP PiMF)
• Conductor material: copper (CU)
• Conductor size: AWG27
• Pair configuration: 4 pairs (2 conductors per pair)
• Pair shielding: foil per pair (PiMF)
• Overall shielding: braided shield (S)
• Jacket material: PVC
• Color: white
• Length on reel: 100 m
• Application: Gigabit Ethernet capable

How to use

Measure and cut the required length from the 100 m reel, strip the outer jacket and foil layers to expose the twisted pairs, untwist pairs only as much as necessary for termination, and follow the chosen connector or keystone jack wiring scheme (e.g., T568A/T568B) during crimping or punch-down. Maintain the integrity of pair twist as much as possible and reapply shielding continuity where applicable when connecting to shielded connectors or patch panels. Route the cable avoiding sharp bends and sources of strong electromagnetic interference.

Recommendations

For optimal performance, use shielded RJ45 connectors or compatible shielded keystone jacks and ensure proper grounding of the overall braid. Observe bend radius guidelines (typically at least four times the cable diameter) and avoid excessive pulling force during installation. Store the reel in a dry environment and protect the cable from prolonged UV exposure if installed outdoors; PVC jackets are primarily intended for indoor use.
