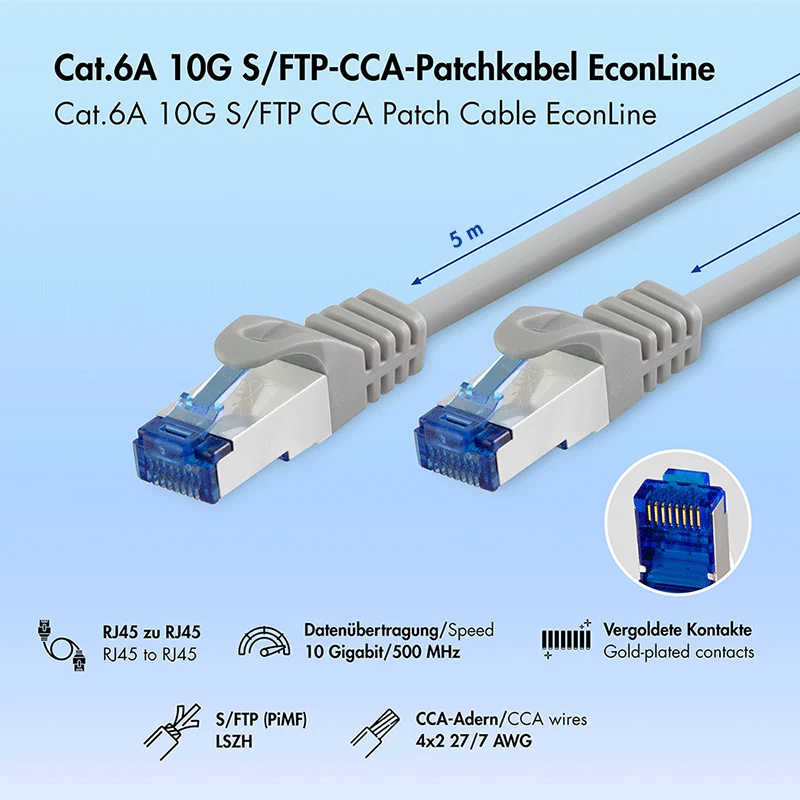

Cavo patch LogiLink Cat.6A CCA S/FTP LSZH, grigio, 5 m, EconLine

For high-density network environments where reliability and safety are non-negotiable, the LogiLink Cat.6A CCA S/FTP LSZH Patch Cable delivers 10 Gigabit performance with a low-smoke, halogen-free jacket. Unlike standard PVC cables, this EconLine model minimizes toxic emissions in the event of fire, making it suitable for public buildings, offices, and industrial settings. The S/FTP shielding—each pair foiled plus an overall braid—provides superior protection against electromagnetic interference, ensuring stable data transmission even near power lines or heavy machinery.

Highlights

• Cat.6A performance up to 500 MHz and 10 Gbps Ethernet
• S/FTP shielding: foil per pair + overall braid for maximum noise immunity
• Copper Clad Aluminum (CCA) conductors: cost-effective and lightweight
• LSZH jacket: low smoke, zero halogen, flame retardant
• Gold-plated RJ45 connectors (50µ) for corrosion resistance and reliable contact
• Stranded AWG 26/7 conductors for flexibility and easy routing
• Backward compatible with Cat.6, Cat.5e, and Cat.5 networks

In daily use

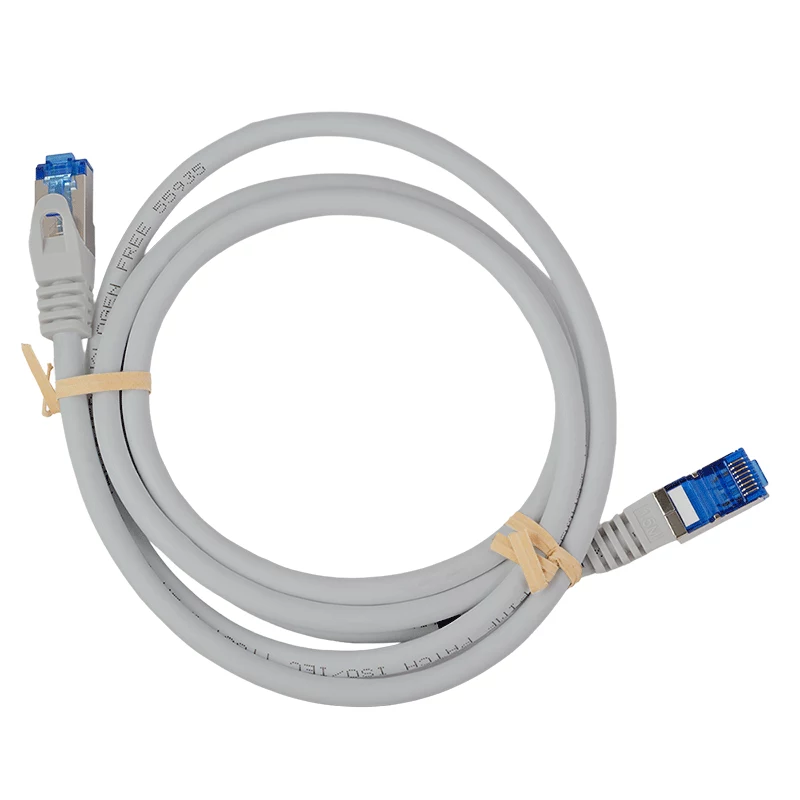

At 5 meters, this grey patch cable bridges the gap between patch panels, switches, and workstations without excess slack. The stranded CCA conductors make it more flexible than solid-core cables, so it bends around corners and through cable management without kinking. The LSZH jacket remains pliable in temperatures from -20°C to 60°C, and its 6.5 mm outer diameter fits standard RJ45 ports and patch panels. Whether you're upgrading an office LAN or wiring a home lab, the EconLine series offers a balance of performance and economy.

Full specifications

• Brand: LogiLink
• Model: CP4072S
• MPN: CP4072S
• EAN: 4052792082159
• Cable standard: Cat.6A
• Shielding type: S/FTP (Screened/Foiled Twisted Pair)
• Conductor material: Copper Clad Aluminum (CCA)
• Cable length: 5 m
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Colour: Grey

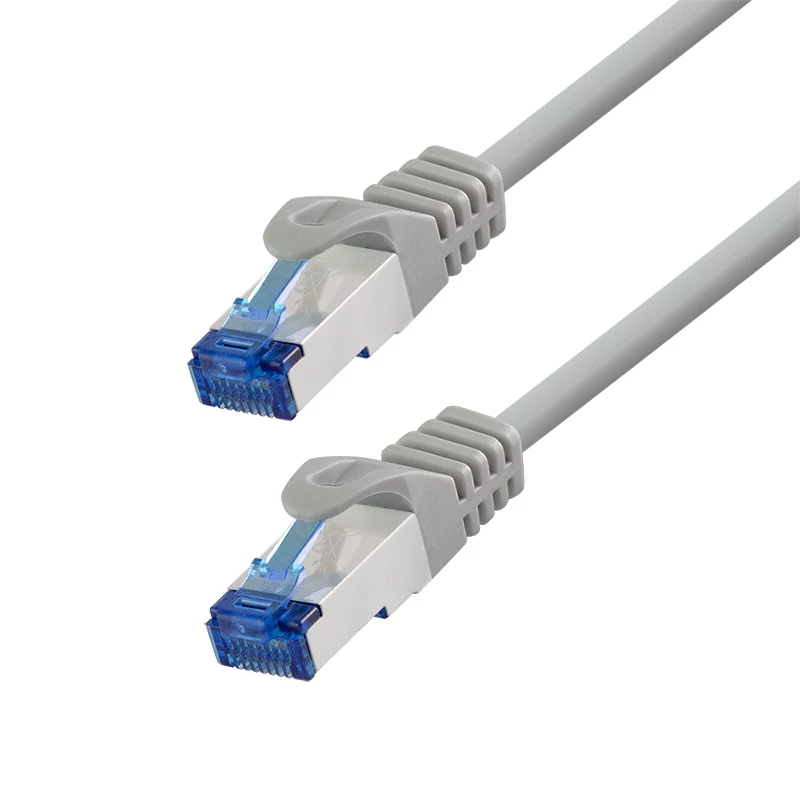

• Connector type: RJ45 male to RJ45 male
• Data transfer rate: up to 10 Gbps (10GBASE-T)
• Bandwidth: up to 500 MHz
• Wiring scheme: TIA/EIA 568B
• Conductor construction: stranded
• Conductor gauge: AWG 26/7
• Connector plating: gold-plated (50µ)
• Halogen free: yes
• Flame retardant: yes
• Product series: EconLine
• Application: network patch cable
• Compatibility: backward compatible with Cat.6, Cat.5e, Cat.5
• Operating temperature: -20°C to 60°C
• Cable outer diameter: approx. 6.5 mm

Final note

For installations where safety standards demand low smoke and zero halogen, this LogiLink patch cable provides the necessary compliance without sacrificing 10G performance. Its grey colour blends discreetly into most environments, and the EconLine pricing makes it an economical choice for bulk deployments.
