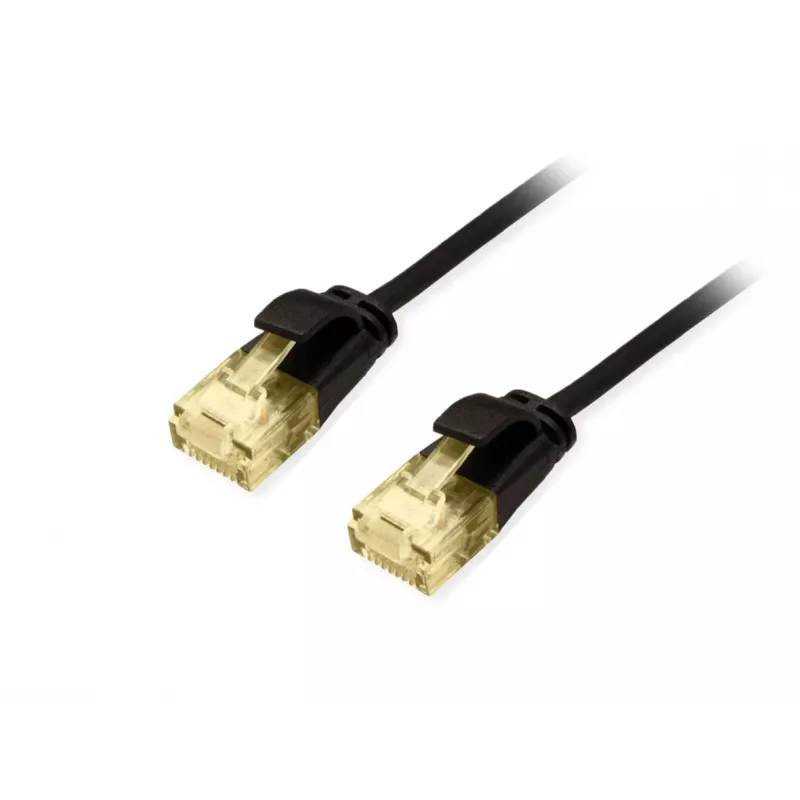

Cavo patch slim Equip Cat.6A U/UTP 1,0 m nero 10000 Mbit/s

The Equip Cat.6A U/UTP Slim Patch Cable 1.0m is a slim, high-performance network patch cable designed for 10 Gigabit Ethernet connections in data centers, enterprise networks and high-density installations. With a 1 m length and RJ-45 connectors on both ends, the cable uses unshielded twisted pair (U/UTP) construction and 32 AWG stranded bare copper conductors to combine flexibility with reliable data transmission up to 10 Gbit/s and frequency support to 500 MHz. Its reduced diameter helps improve airflow and cable management in crowded racks and patch panels while maintaining compliance with industry cabling standards.

Advantages

The slim 32 AWG construction reduces cable bulk and eases routing in dense installations without sacrificing performance for 10GBase-T links. Unshielded twisted pair design provides adequate performance in typical low-to-moderate EMI environments, and the stranded bare copper conductors deliver flexibility for frequent moves or reconfigurations. Additional practical features include molded boots with strain relief, LSZH jacket material and RoHS compliance for safer installation and regulatory conformity.

Suitable for

• 10 Gigabit Ethernet links in data centres and server rooms
• High-density patch panels and rack installations where space and airflow matter
• Office and enterprise networks requiring PoE or PoE+ powered devices
• Short horizontal patching and device connections (1 m length)

Key specifications

• Length: 1 m
• Category: Cat.6A U/UTP (unshielded)

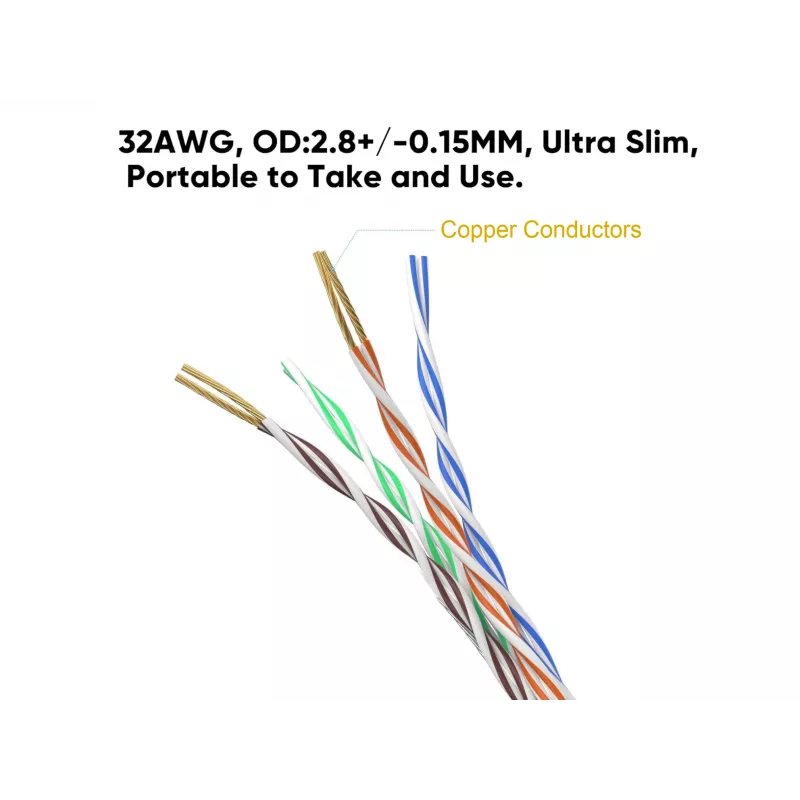

• Conductor: 32 AWG stranded bare copper

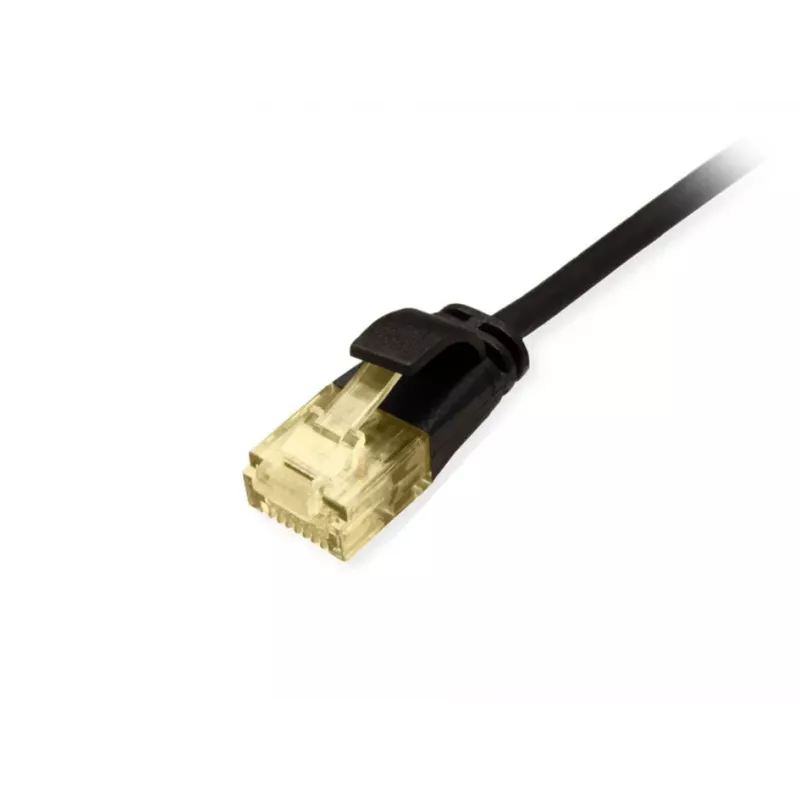

• Connectors: RJ-45 straight male – both ends
• Rated bandwidth: up to 500 MHz
• Data rate: up to 10 Gbit/s (10000 Mbit/s)
• Cabling technology: 10GBase-T
• PoE support: PoE, PoE+
• Jacket: Low Smoke Zero Halogen (LSZH/LSOH)
• Standards: ISO/IEC 11801, EN 50173
• Colour: Black
• Weight: approx. 0.0127 kg

How to use

Plug the RJ-45 connector at each end into the corresponding network ports of your switch, patch panel or device. Ensure connectors are fully inserted until the latch clicks to secure the connection. Use the 1 m length for short patch connections between devices or to link equipment to a nearby patch panel. Avoid sharp bends and maintain recommended bend radius to preserve signal integrity; route cables through appropriate cable management channels to maintain airflow and organization.

Recommendations

For best performance, use this Cat.6A U/UTP slim patch cable in low-to-moderate EMI environments and pair it with quality switches and patch panels rated for 10GBase-T. When deploying in high-density racks, plan cable runs to maximize airflow and reduce bend stress; do not exceed the manufacturer's recommended bend radius.
