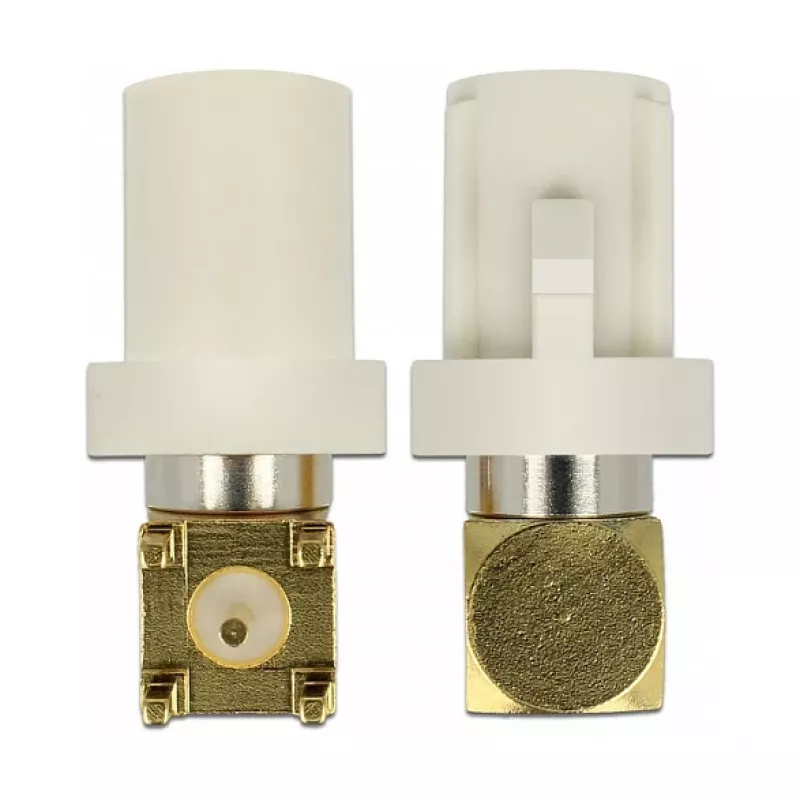

Connettore coassiale DeLOCK 89773

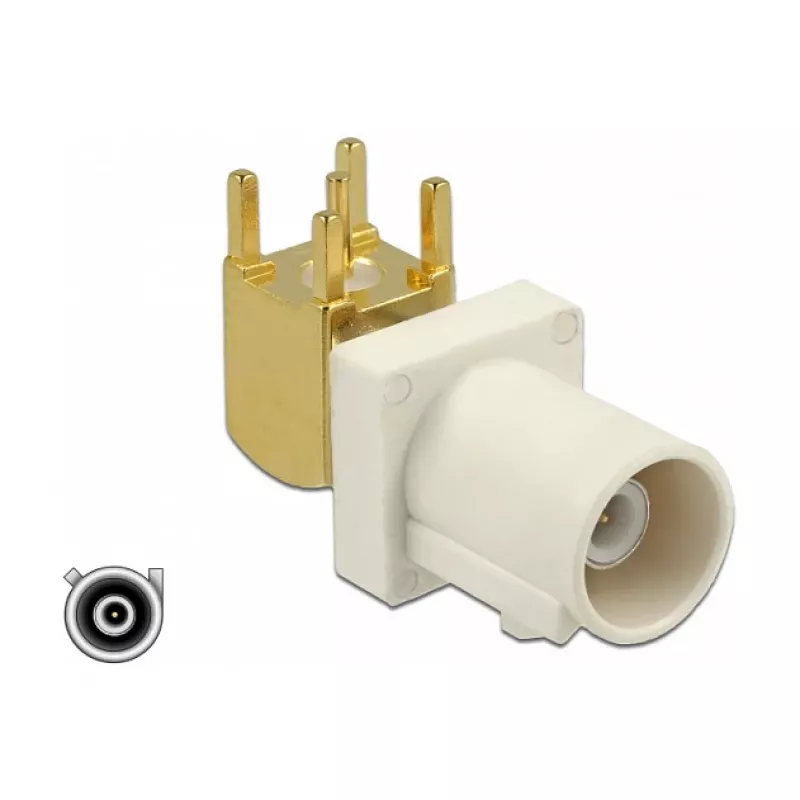

The DeLOCK 89773 coaxial connector is a compact FAKRA B male plug with a 90° angle designed for radio frequency technology connections. Its small footprint (11.5 mm width, 21.3 mm depth) makes it suitable for installations in confined spaces. The connector is supplied individually in a polybag and is intended for use where a reliable RF connection with a right-angle FAKRA B interface is required.

Advantages

The right-angle FAKRA B male design saves space and simplifies cable routing in tight installations. Its compact dimensions allow integration into equipment with limited clearance. Supplied as a single unit in a polybag, it is convenient for individual repairs or small projects. The connector uses common FAKRA specifications for compatibility with matching female counterparts.

Suitable for

Key specifications

How to use

Align the DeLOCK 89773 FAKRA B male connector with the matching female FAKRA B socket and insert it gently until it seats securely. Because it is a 90° connector, orient the plug to match the available clearance and cable routing path before fully mating. Ensure the mating face and cable are free of debris and that the connector is compatible with the mating part to avoid damage. For installations in equipment, allow clearance for the 21.3 mm depth when planning the mounting position.

Recommendations

Use the DeLOCK 89773 only with compatible FAKRA B female connectors. Avoid excessive force when mating or unmating to prevent deformation. For reliable RF performance, keep connector contacts clean and avoid exposure to corrosive environments; if used in automotive applications, verify compatibility with vehicle-specific FAKRA housings.
