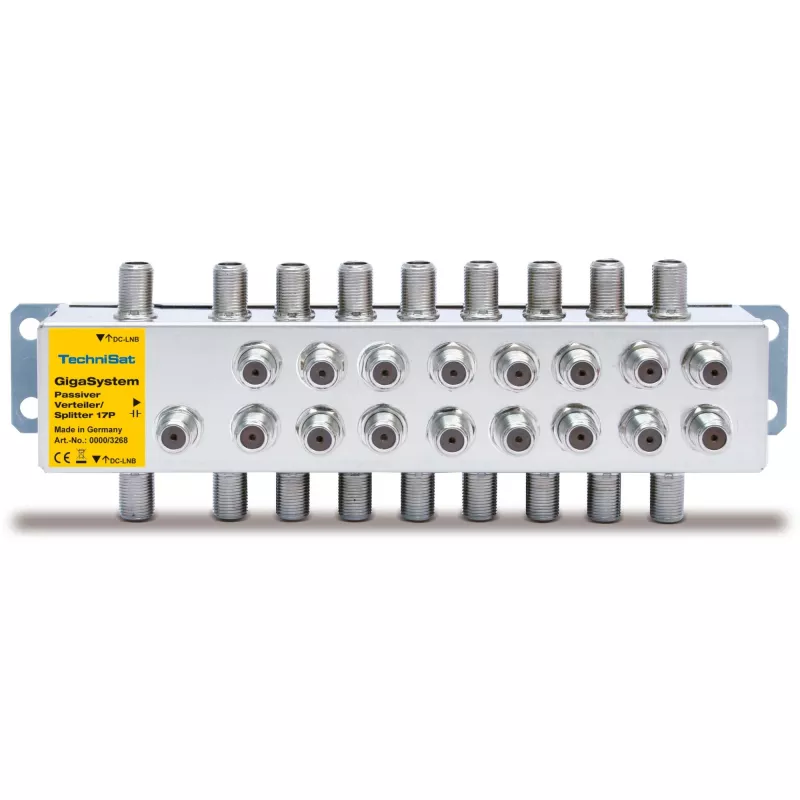

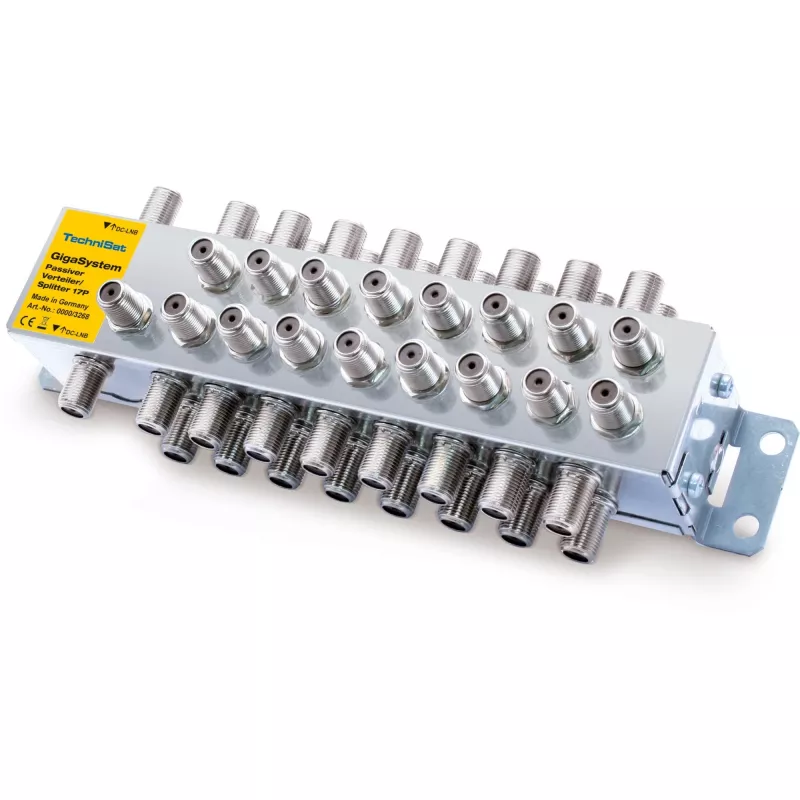

Distributore passivo TECHNISAT 17/P argento – splitter di segnale passivo per distribuzione TV/SAT

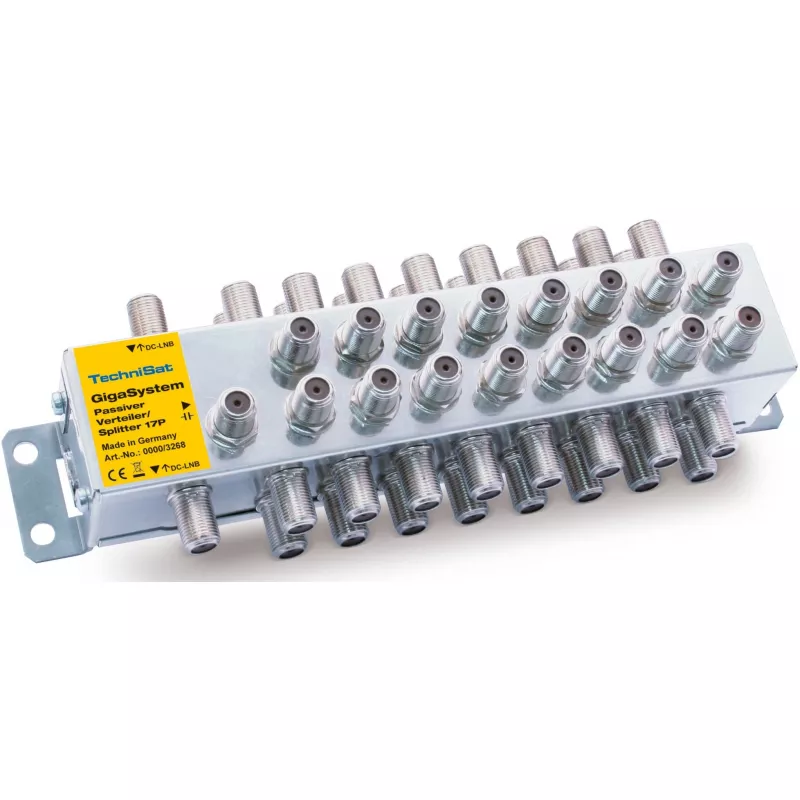

TECHNISAT Passive Distributor 17/P silver is a passive signal splitter intended for TV and satellite distribution where no active amplification is required. The unit routes incoming coaxial signals to multiple outputs while preserving signal integrity through passive matching. Its compact silver housing and standard F-type connectors make it suitable for use in domestic antenna setups, communal distribution panels, or small commercial installations where power supply is not available or desired.

Advantages

The passive design eliminates the need for a local power source and reduces maintenance requirements. Robust mechanical construction and reliable F-type connections provide stable long-term signal routing. The silver finish and compact footprint allow discreet installation in distribution boxes or wall-mounted panels without requiring additional ventilation or space. Because it does not amplify, it avoids adding noise or distortion to the signal chain.

Suitable for

• Distributing DVB-T/T2 terrestrial TV signals to multiple receivers
• Routing satellite IF signals within multiswitch cascades or local splits where no powered amplifier is needed
• Use in apartments, small houses, or small commercial premises for passive signal splitting
• Integration into distribution cabinets, patch panels, or wall outlet assemblies

Key specifications

• Passive splitter type with multiple outputs for coaxial TV/SAT distribution
• Standard F-type female connectors for input and outputs
• Compact silver metal housing suitable for panel or surface mounting
• Frequency range covering typical terrestrial and satellite IF bands
• No power supply required; passive, non-amplifying device

How to use

Connect the incoming antenna or satellite coaxial cable to the distributor input and attach receiver cables to the output ports using F-type connectors. Ensure cables are properly tightened to prevent signal loss and verify that all connections are corrosion-free. Install the distributor in a dry environment, inside a distribution cabinet or mounted on a flat surface. Because the device is passive, it must be used where signal levels are sufficient; if signal loss is observed, consider using an amplified solution upstream.

Recommendations

Use high-quality coaxial cables and minimize unnecessary cable lengths to reduce insertion loss. For multi-dwelling or long-run installations, measure signal levels after installation to confirm adequate reception at each outlet; add active amplification only if required to compensate for excessive splitting losses.
