DSIT Armadio server a parete 22U con porta in vetro, 600x600x1100 mm, bianco

With a 60 kg load capacity and 22U of 19-inch rack space, this DSIT wall-mount cabinet secures your network hardware in a compact, lockable enclosure.

Overview

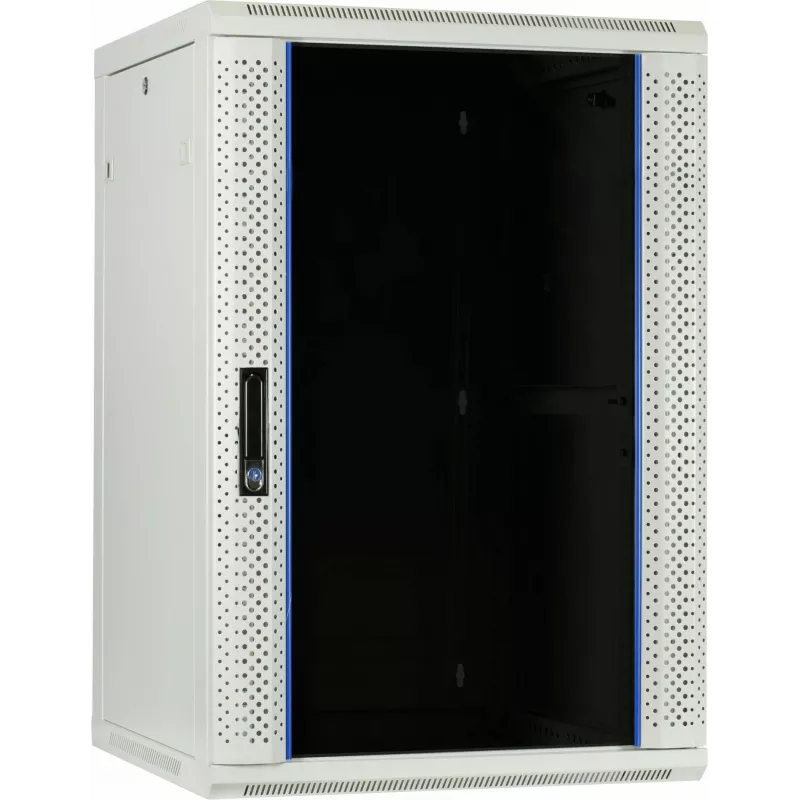

The DSIT DS6622W-WAND is a wall-mounted server cabinet designed for structured cabling and small network installations. Its white powder-coated steel body (RAL 9003) blends into modern office environments while providing a robust, lockable housing for switches, patch panels, and other 19-inch equipment. The cabinet offers 22 rack units (22U) with a usable depth of approximately 550 mm, accommodating a wide range of standard network devices.

What stands out

• 22U of 19-inch rack space with adjustable mounting rails for flexible equipment placement.
• Front glass door with key lock and removable side panels for easy access and maintenance.
• Top and bottom cable entry points with brush strips help maintain a tidy installation.
• Passive ventilation slots promote airflow to keep equipment cool.
• Pre-assembled construction with included mounting hardware, cage nuts, and screws for quick setup.

Technical details

• External dimensions (WxDxH): 600 x 600 x 1100 mm
• Usable depth: approx. 550 mm
• Material: SPCC cold rolled steel, powder coated
• Colour: White (RAL 9003)
• Load capacity: 60 kg
• Front door: Single glass door, lockable (2 keys included)
• Side panels: Removable
• Cable entry: Top and bottom with brush strips
• Ventilation: Passive slots
• IP rating: IP20
• Compliance: RoHS, CE
• Included accessories: 2 keys, mounting hardware, 20 sets of cage nuts and screws

Our verdict

A reliable, space-efficient wall-mount cabinet that delivers solid security and easy access for small to medium network installations.
