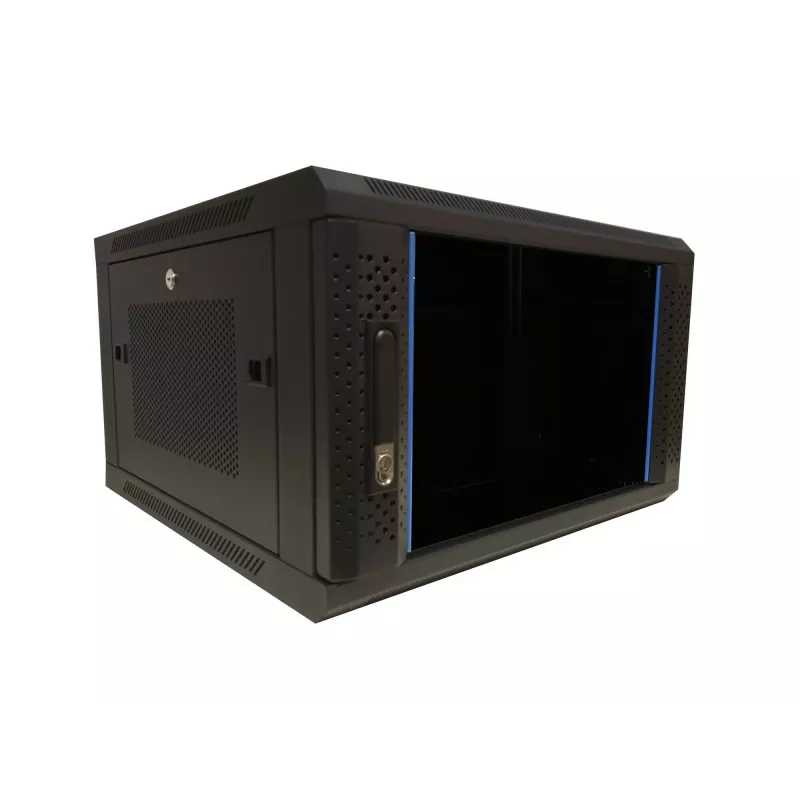

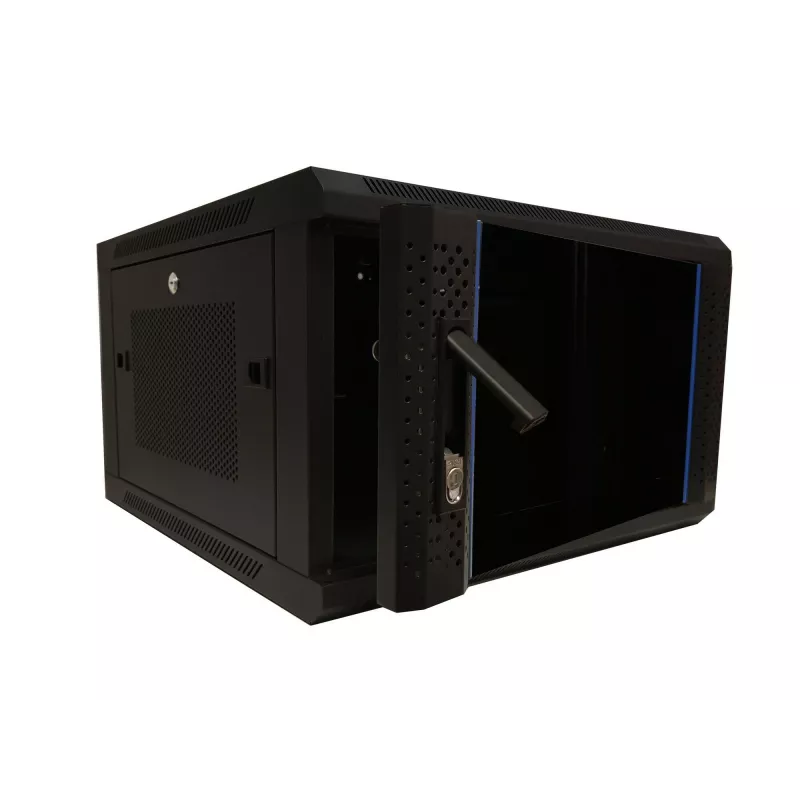

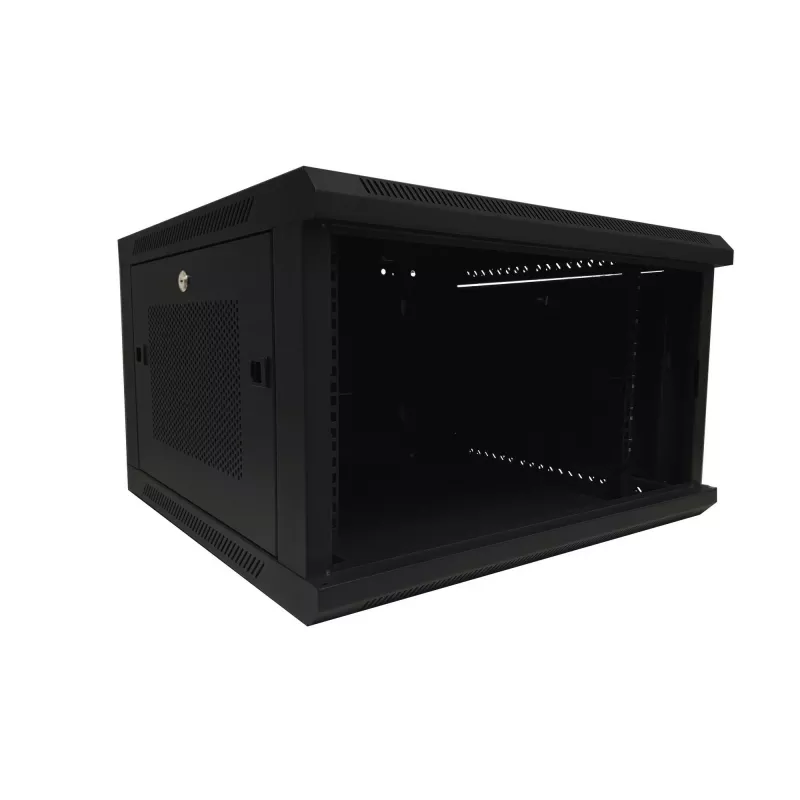

DSIT armadio server a parete 6U 19 inch con porta in vetro e pareti laterali perforate, 600x600x368 mm (DS6606ZP)

In compact network closets and small office environments, the DSIT DS6606ZP provides a secure, wall-mounted home for your 19-inch equipment. This 6U cabinet features a tempered glass front door and perforated side panels, balancing visibility with ventilation. Its 600x600 mm footprint accommodates standard-depth devices, while the 368 mm height keeps it unobtrusive. Built from SPCC cold-rolled steel with a black powder-coated finish, it supports up to 60 kg of gear. The lockable front door and side panels deter unauthorized access, and top/bottom cable entry points with brush strips simplify cable management. Adjustable front and rear mounting rails offer flexibility, and the top panel is ready for an optional fan unit to enhance airflow.

Key specifications

• Rack capacity: 6U, 19-inch standard
• External dimensions (WxDxH): 600 x 600 x 368 mm
• Material: SPCC cold-rolled steel, powder-coated black (RAL 9005)
• Maximum load capacity: 60 kg
• Front door: tempered glass, lockable
• Side panels: perforated, removable, lockable
• Cable entry: top and bottom with brush strips
• Mounting rails: adjustable, front and rear
• Ventilation: passive, fan-ready top panel
• Protection class: IP20
• Included: 2 keys, mounting hardware

Why choose it

This cabinet offers a practical mix of security, airflow, and easy equipment access. The glass door lets you monitor indicator lights without opening the cabinet, while the perforated sides and optional fan support keep temperatures in check. Its wall-mount design frees up floor space, making it ideal for areas with limited room. The adjustable rails accommodate various device depths, and the included keys and hardware mean you can install it right out of the box.

Ideal use cases

• Small business network closets
• Retail back offices
• Classrooms and training rooms
• Security and surveillance installations
• Industrial control panels

Good to know

The cabinet is designed for indoor use (IP20) and should be mounted on a suitable wall surface. Ensure proper anchoring for the combined weight of the cabinet and equipment. The top panel can accommodate a standard fan unit (not included) for active ventilation in warmer environments.
