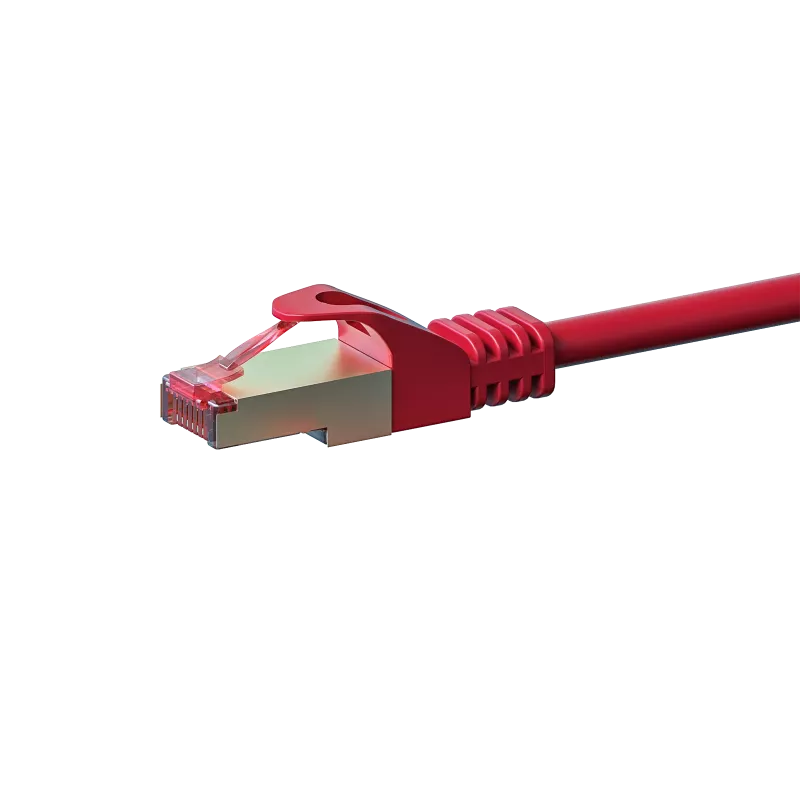

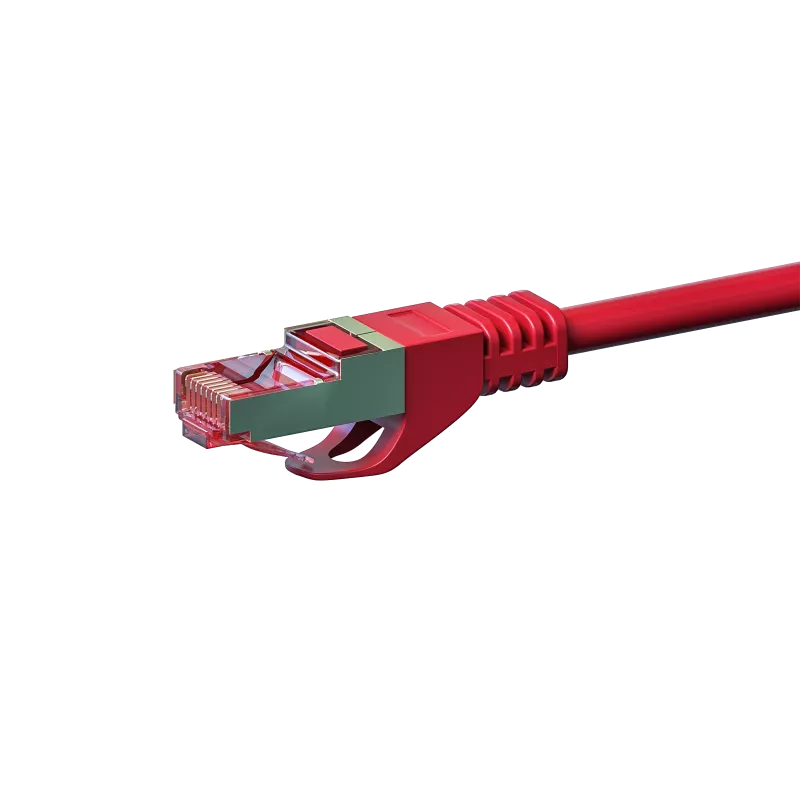

DSIT CAT 6 S/FTP LSOH cavo patch di rete, 7,5 m, rosso

Engineered for 10 Gigabit Ethernet, this DSIT CAT 6 patch cable delivers 250 MHz bandwidth over 7.5 meters of premium S/FTP shielded twisted pair construction. The low-smoke zero-halogen jacket ensures safety in confined spaces, while the red colour provides instant identification in dense cable runs.

Overview

The DSIT DC-S65-075 is a high-performance network patch cable built for demanding Ethernet and Power over Ethernet applications. Each of the four twisted pairs is individually foil-shielded, and the entire bundle is wrapped in an overall braided screen, providing superior immunity to electromagnetic interference and crosstalk. The cable is terminated with robust RJ45 male connectors on both ends, wired to the TIA/EIA-568B standard for consistent, reliable connections.

What stands out

• 10 Gigabit Ethernet support for high-speed data transfer
• S/FTP shielding minimises alien crosstalk and EMI
• LSOH jacket emits low smoke and zero halogen when exposed to flame
• 26 AWG stranded copper conductors offer flexibility and durability
• Backward compatible with Cat 5e and Cat 5 networks

Technical details

• Cable type: CAT 6 S/FTP (Screened/Foiled Twisted Pair)
• Length: 7.5 meters
• Colour: Red
• Connector type: RJ45 male to RJ45 male
• Bandwidth: 250 MHz
• Data transfer rate: 10 Gbps (10GBASE-T)
• Conductor material: Copper
• Conductor gauge: 26 AWG
• Wiring standard: TIA/EIA-568B
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Flame retardancy: IEC 60332-1
• Smoke emission: IEC 61034-2
• Acid gas emission: IEC 60754-2
• Outer diameter: approx. 6.0 mm
• Compatibility: Ethernet, PoE, backward compatible with Cat 5e/Cat 5

Our verdict

A reliable, future-proof patch cable that combines high-speed performance with safety-focused materials, ideal for both office and industrial environments.
