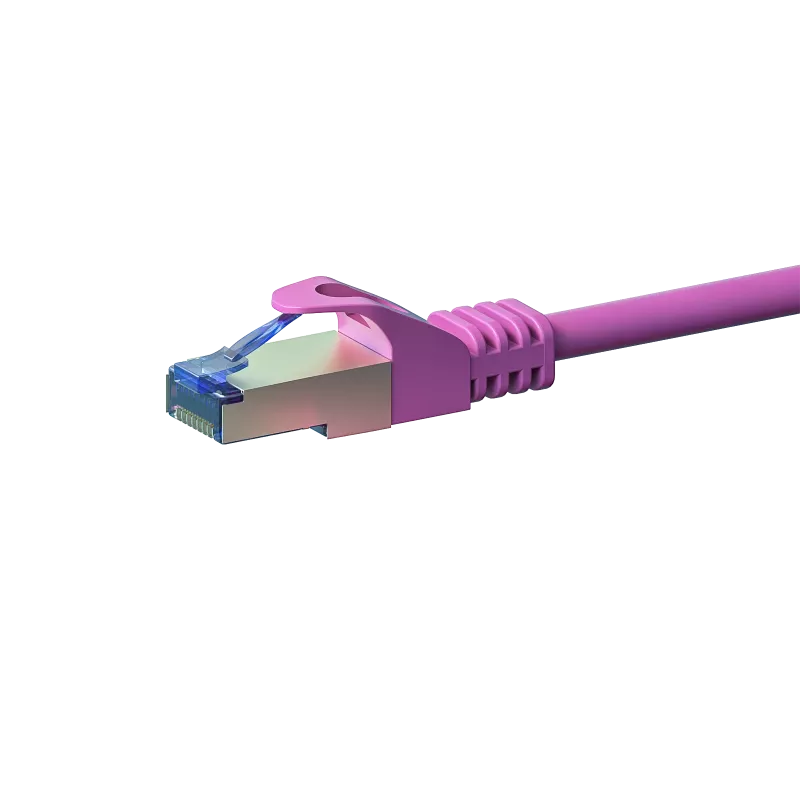

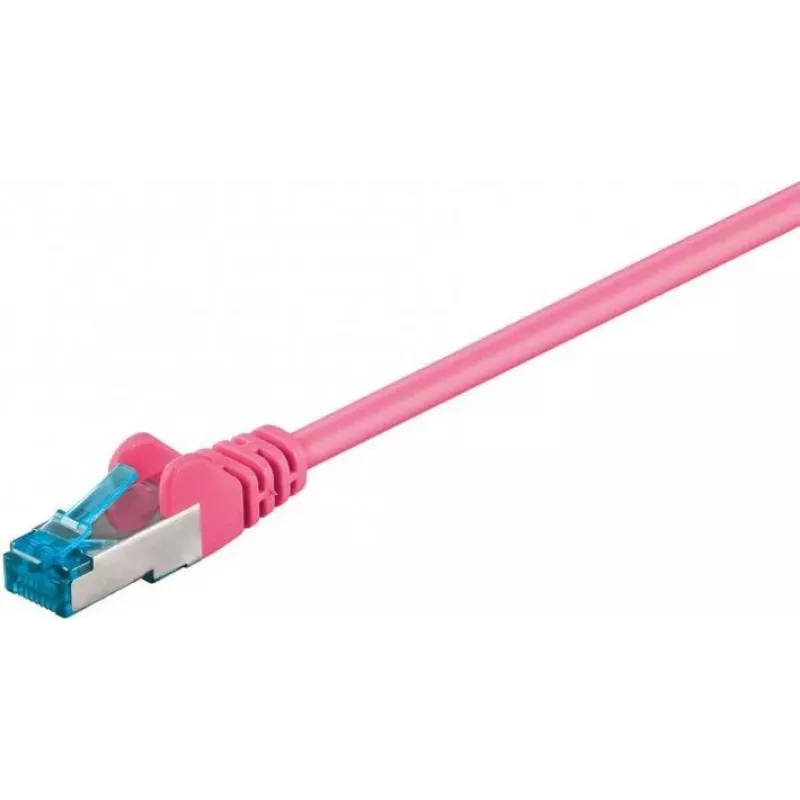

DSIT CAT 6a LSOH S/FTP cavo patch di rete 1,5 m rosa

High-speed network connections demand cables that can handle 10 Gigabit data rates without interference. The DSIT CAT 6a LSOH S/FTP Network Patch Cable delivers reliable, high-performance connectivity in a 1.5-meter length, finished in a distinctive pink colour for easy identification. Its S/FTP shielding with individually foiled pairs (PiMF) and an overall braid ensures excellent protection against electromagnetic interference (EMI) and crosstalk, making it ideal for dense network environments.

Who is it for

This cable is perfect for IT professionals, data centre operators, and home users who need a dependable, flame-retardant patch cable for connecting servers, switches, routers, and workstations. The low smoke zero halogen (LSOH) jacket makes it suitable for public buildings, offices, and any area where fire safety is a priority.

Main features

• CAT 6a performance with 500 MHz bandwidth supports 10GBASE-T Ethernet up to 100 meters.
• S/FTP shielding: each twisted pair is individually foiled (PiMF) and the entire cable is braided for maximum EMI protection.
• LSOH (Low Smoke Zero Halogen) jacket reduces toxic smoke and corrosive gases in case of fire, meeting IEC 60332-1, IEC 61034, and IEC 60754 standards.
• Gold-plated RJ45 connectors ensure reliable, corrosion-resistant contacts for consistent signal integrity.
• Stranded copper conductors (AWG 26/7) provide flexibility for easy routing in tight spaces.
• Pink colour allows quick visual identification of network connections.

Specifications

• Cable length: 1.5 m
• Cable type: CAT 6a S/FTP (Screened/Foiled Twisted Pair)
• Connector type: RJ45 male to RJ45 male
• Conductor material: Oxygen-free copper (OFC), AWG 26/7 stranded
• Wiring standard: TIA/EIA-568B
• Impedance: 100 Ohm
• Outer diameter: approx. 6.2 mm
• Compliance: RoHS, REACH, CE

Tips

For optimal performance, avoid bending the cable beyond its minimum bend radius (typically 4 times the cable diameter) and keep it away from power lines to prevent interference. Use cable ties to manage excess length and maintain a tidy network setup.
