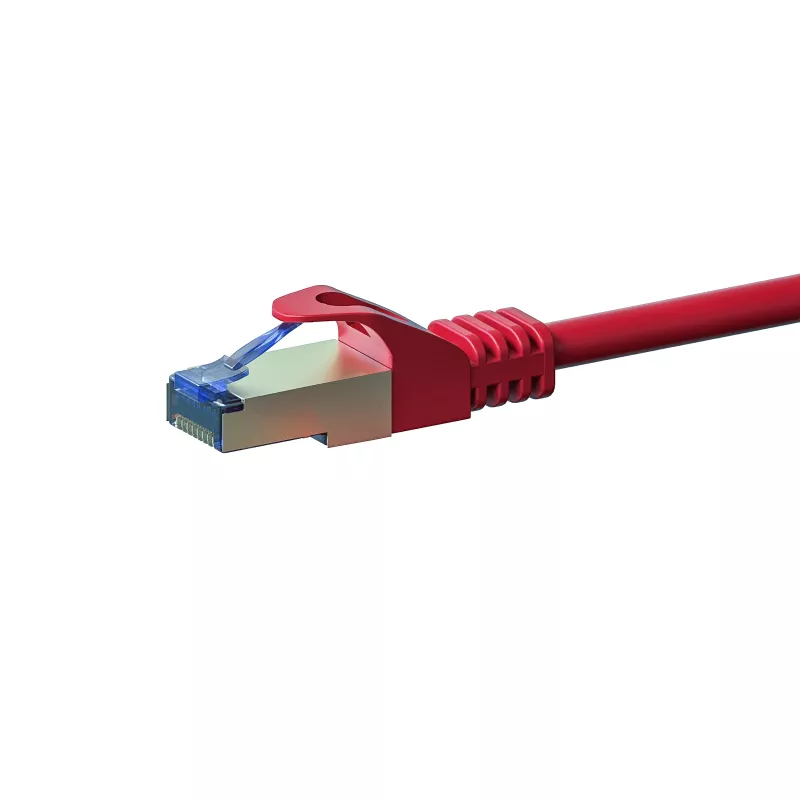

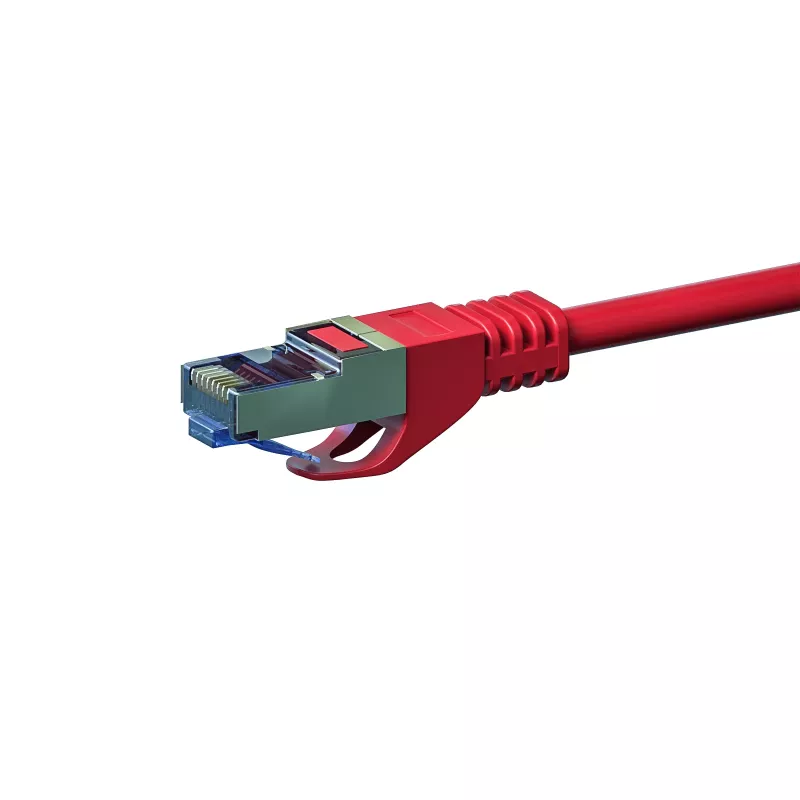

DSIT CAT 6a S/FTP LSOH cavo patch di rete, 0,5 m, rosso

High-performance CAT 6a network patch cable engineered for 10 Gigabit Ethernet links up to 500 MHz, delivering reliable, interference-free connectivity in dense IT environments. Its S/FTP shielding—each pair individually foiled plus an overall braid—virtually eliminates alien crosstalk, making it ideal for data centers, server rooms, and high-speed office networks. The LSOH jacket ensures low smoke and zero halogen emissions, enhancing fire safety in enclosed spaces.

Advantages

This cable supports full 10GBASE-T throughput over short runs, with 26 AWG stranded copper conductors for flexibility and durability. The red LSOH jacket is easy to identify in cable trays and meets IEC 60332-1 flame retardancy, IEC 61034 smoke density, and IEC 60754 halogen-free standards. Gold-plated RJ45 connectors resist corrosion and ensure consistent contact for stable performance.

Suitable for

• 10 Gigabit Ethernet connections in data centers and server rooms
• High-density patch panels and switch-to-server links
• Office networks requiring future-proof CAT 6a performance
• Environments with strict fire safety regulations (LSOH)

Key specifications

• Category: CAT 6a, S/FTP shielding
• Length: 0.5 m, red LSOH jacket
• Connectors: RJ45 male to RJ45 male, gold-plated contacts
• Bandwidth: up to 500 MHz; data rate: up to 10 Gbps
• Conductor: 26 AWG stranded copper, 100 Ohm impedance
• Standards: TIA/EIA-568-B.2, RoHS, CE
• Operating temperature: -20°C to 60°C

Recommendations

For optimal performance, pair with CAT 6a shielded patch panels and equipment. The short 0.5 m length is perfect for neat, high-density patching where cable management is critical.
