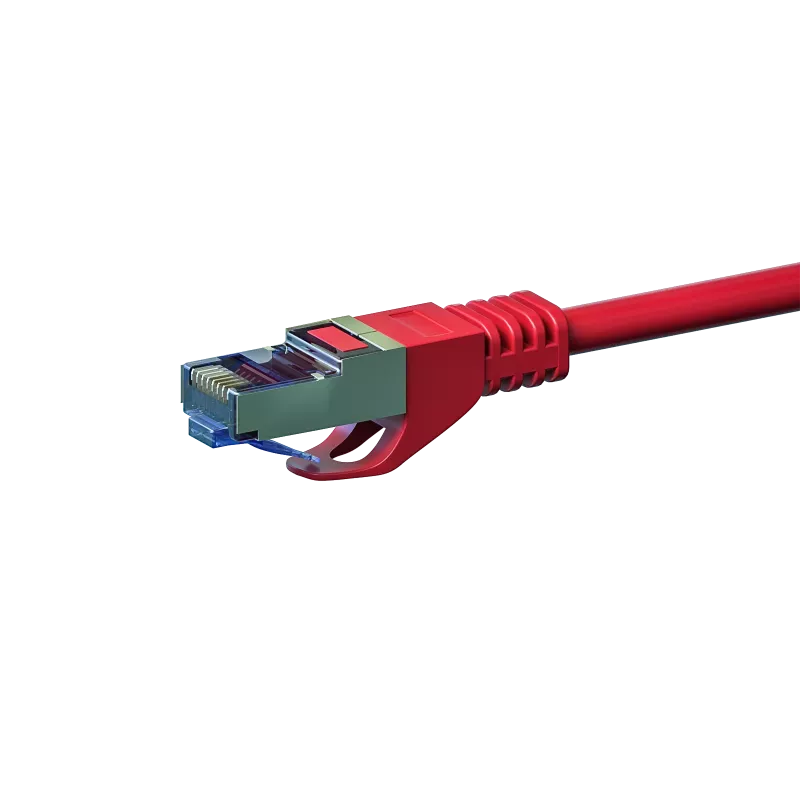

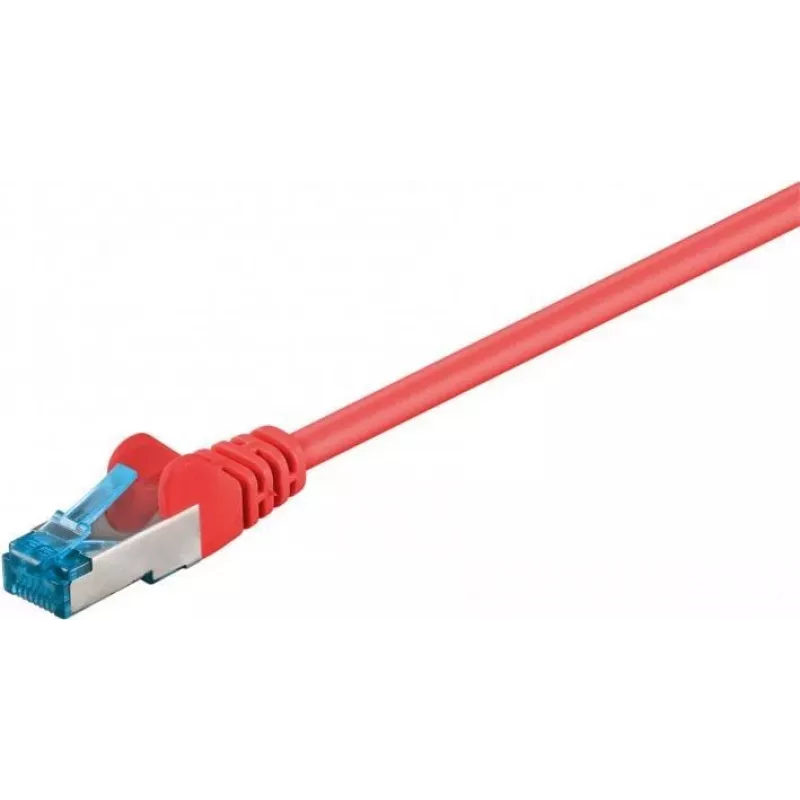

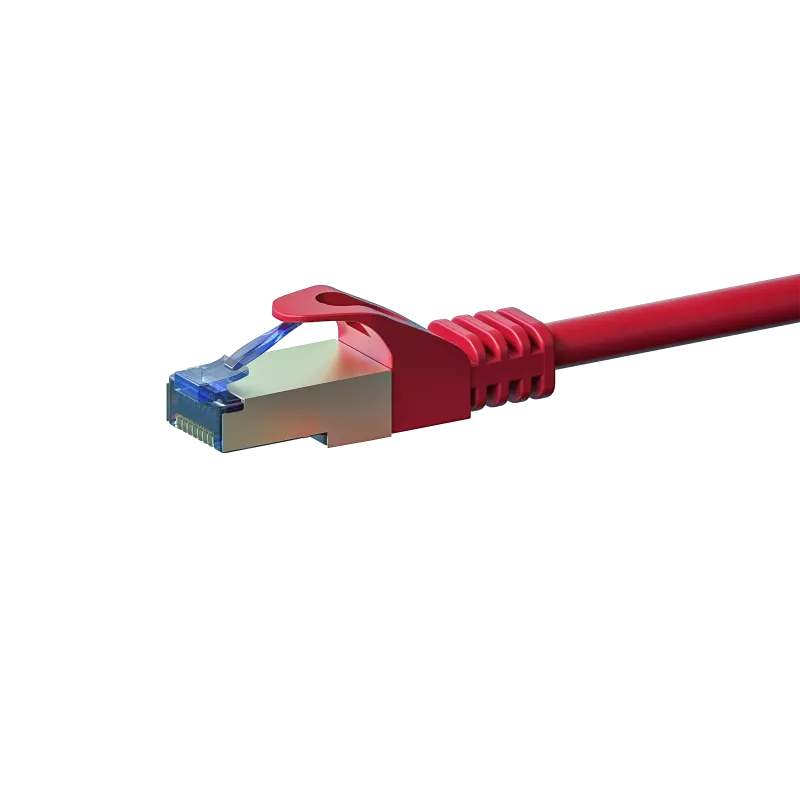

DSIT Cavo patch di rete CAT 6a S/FTP LSOH, 5m, rosso

With a 500 MHz bandwidth and 10 Gigabit Ethernet support, this DSIT CAT 6a patch cable delivers high-speed, error-free data transfer over 5 meters. The S/FTP shielding with PiMF construction and LSOH jacket make it ideal for high-density, safety-conscious environments.

Overview

Engineered for performance and safety, this DSIT CAT 6a network cable features S/FTP shielding with individually foil-wrapped pairs (PiMF) and an overall braid, providing superior protection against EMI and crosstalk. The LSOH (Low Smoke Zero Halogen) jacket ensures minimal toxic smoke and corrosive gas emission in case of fire, making it suitable for public buildings and confined spaces. The red jacket offers high visibility for easy identification and routing.

What stands out

• Supports 10GBASE-T Ethernet up to 500 MHz
• S/FTP shielding with PiMF for maximum noise immunity
• LSOH jacket for low smoke and zero halogen safety
• Gold-plated RJ45 connectors for reliable connectivity
• Stranded copper conductors (AWG 26/7) for flexibility
• 5-meter length ideal for rack-to-device connections

Technical details

• Category: CAT 6a (Class EA)
• Shielding: S/FTP (PiMF + overall braid)
• Length: 5 meters
• Colour: Red
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Connectors: RJ45 male to RJ45 male, gold-plated contacts
• Conductor: Stranded copper, AWG 26/7
• Wiring standard: TIA/EIA-568B
• Outer diameter: approx. 6.2 mm
• Operating temperature: -20°C to 60°C
• Compliance: RoHS, REACH, CE

Our verdict

A high-performance, safety-oriented CAT 6a patch cable that excels in demanding network environments. Its robust shielding and LSOH jacket make it a reliable choice for professionals.
