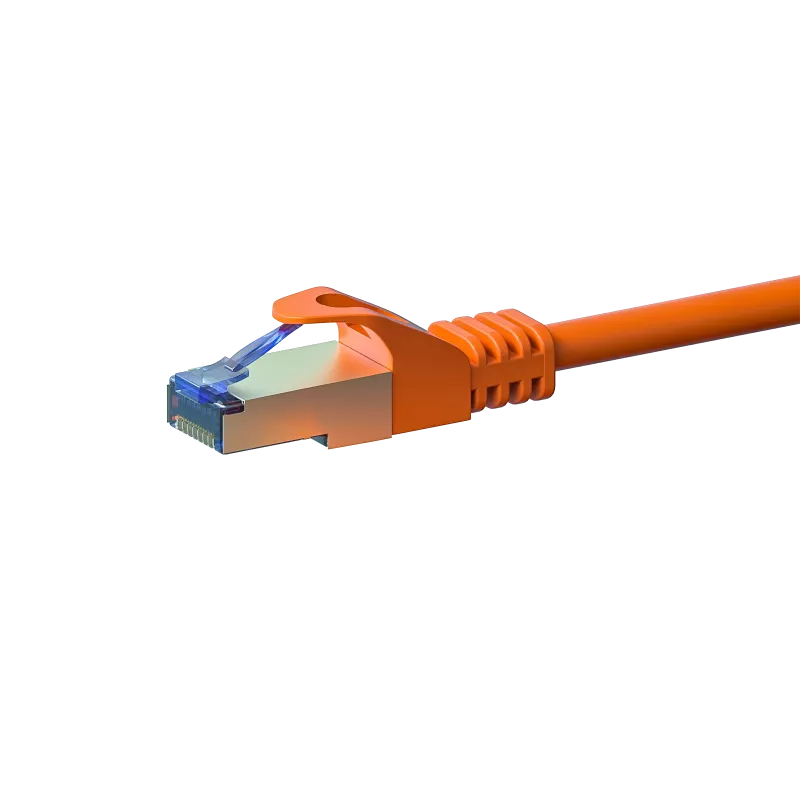

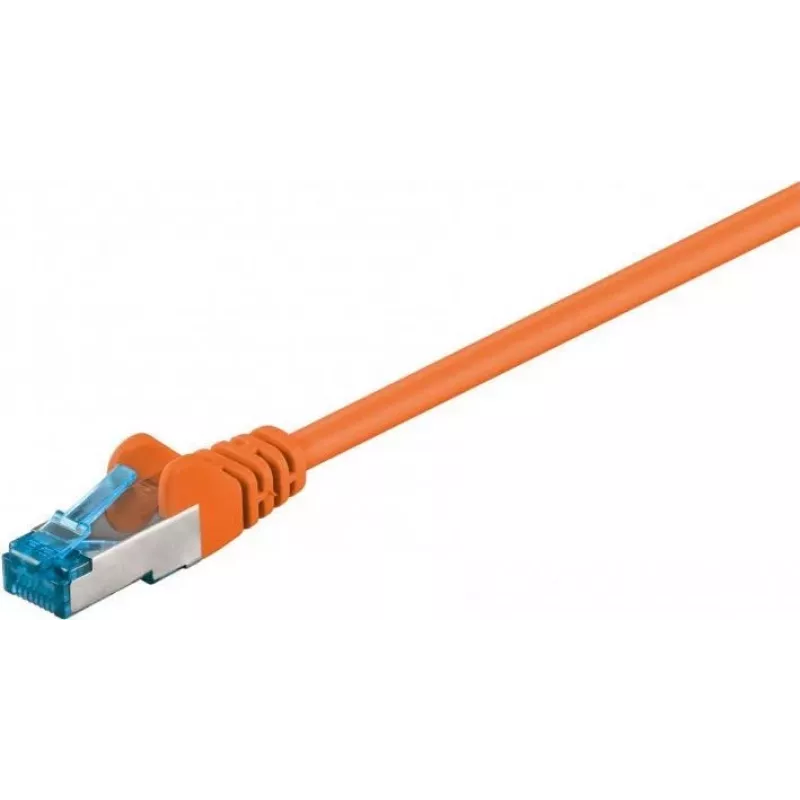

DSIT Cavo patch Ethernet CAT 6a S/FTP LSOH, 5 m, arancione

High-speed networks demand cabling that can keep up without compromising safety or signal integrity. This DSIT CAT 6a patch cable delivers 10 Gigabit performance over 5 meters, wrapped in a low-smoke zero-halogen jacket for safer installations in offices, data centers, and homes. The S/FTP shielding—both an overall braid and foil around each pair—blocks electromagnetic interference, ensuring clean, reliable data transmission even in electrically noisy environments.

Who is it for

Network administrators, IT professionals, and home users who need a robust, future-proof connection for 10GBASE-T equipment. Ideal for connecting switches, routers, servers, and workstations where cable runs pass through shared conduits or plenum spaces requiring LSOH materials.

Main features

• Cat 6a performance: supports up to 10 Gbps and 500 MHz bandwidth, perfect for bandwidth-intensive applications.
• S/FTP shielding: braided screen plus foil per twisted pair minimizes alien crosstalk and EMI.
• LSOH jacket: low smoke, zero halogen—emits less toxic fumes and smoke in case of fire, meeting IEC 60332-1, IEC 61034, and IEC 60754.
• Stranded copper conductors: flexible and durable, suitable for frequent patching and tight bends.
• RJ45 male connectors on both ends: gold-plated contacts ensure reliable connectivity and corrosion resistance.
• 5-meter length: provides flexibility for rack-to-rack or desk-to-wall connections without excess slack.

Specifications

• Cable type: Ethernet patch cable, Cat 6a
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Length: 5 m
• Colour: Orange
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Data transfer rate: up to 10 Gbps
• Bandwidth: up to 500 MHz
• Connector type: RJ45 male to RJ45 male
• Conductor material: Copper, stranded
• Number of pairs: 4
• Wiring standard: TIA/EIA-568-B.2
• Impedance: 100 Ohm
• Standards compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Outer diameter: approx. 6.0–6.5 mm
• Operating temperature: -20°C to +60°C

Tips

For best performance, avoid sharp bends and do not exceed the minimum bend radius. When routing through walls or conduits, ensure the LSOH jacket is compatible with local fire safety regulations. Use cable management to prevent strain on connectors.
