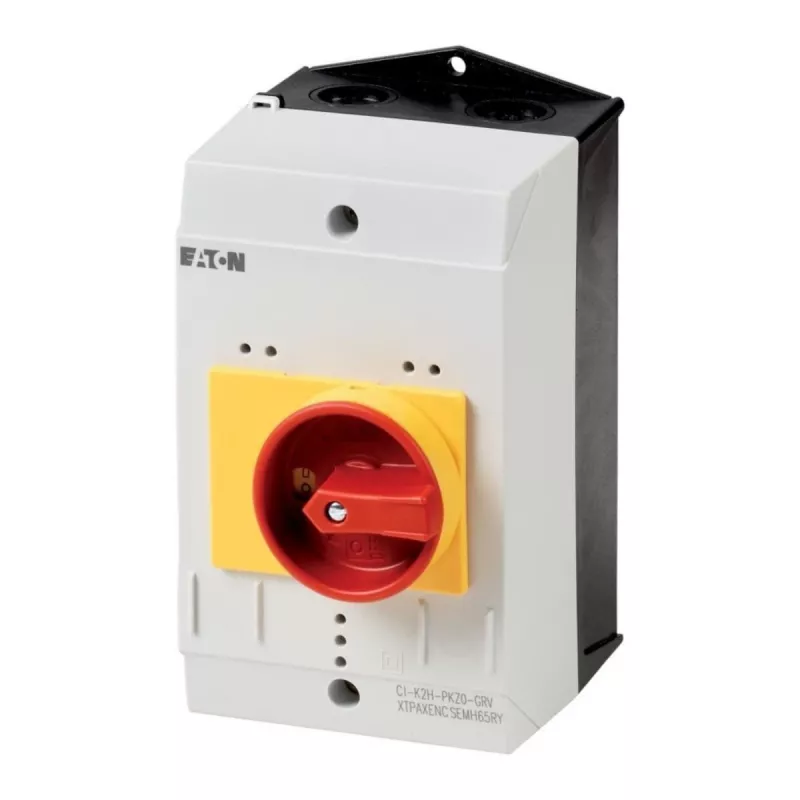

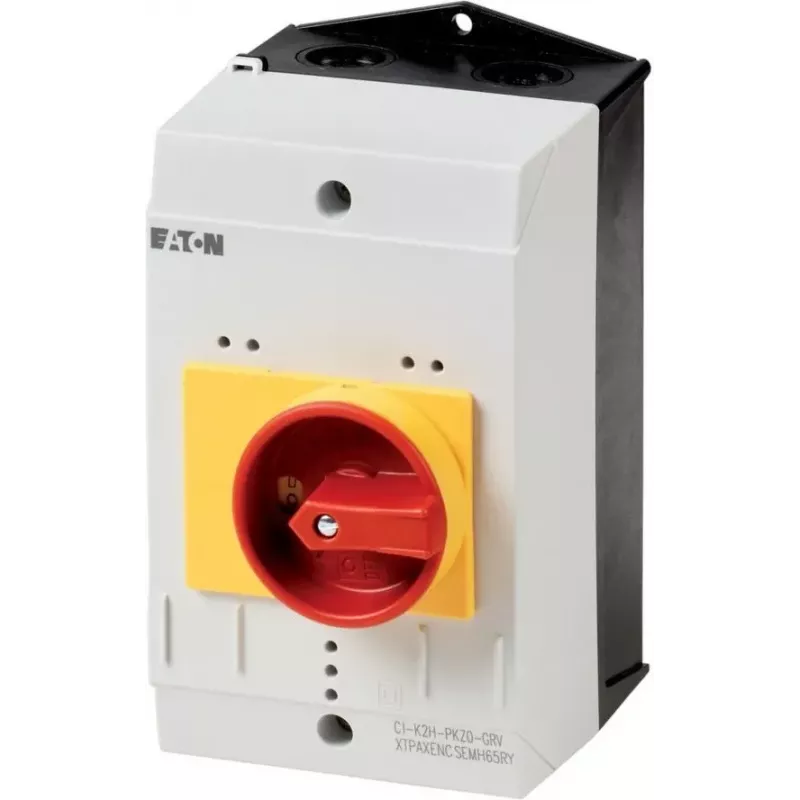

Eaton CI-K2 Custodia vuota con interruttore di emergenza, 160 x 100 x 130 mm, grigio/rosso/giallo 219655

IP65-rated polycarbonate enclosure with integrated emergency stop switch, built for harsh industrial environments.

Overview

The Eaton CI-K2-PKZ0-GR combines a robust grey polycarbonate housing with a red mushroom-head emergency stop button on a yellow background. Its twist-release mechanism prevents accidental reset, and the enclosure is designed to accommodate a PKZ0 motor protective circuit breaker.

What stands out

• IP65 and NEMA 12 protection against dust and water jets
• Impact-resistant to IK07, suitable for demanding settings
• Undrilled cable entries allow custom gland placement
• Rated insulation voltage up to 690 V AC
• Operating range from -25 °C to +70 °C

Technical details

• Enclosure material: Polycarbonate
• Enclosure colour: Grey
• Emergency stop: Mushroom head, twist release, 1 NC contact
• Dimensions (L x W x H): 160 x 100 x 130 mm
• Mounting: Surface or wall
• Standards: IEC/EN 60947-5-1, IEC/EN 60529

Our verdict

A dependable safety enclosure for machine control panels, offering high protection and easy integration with Eaton PKZ0 breakers.
