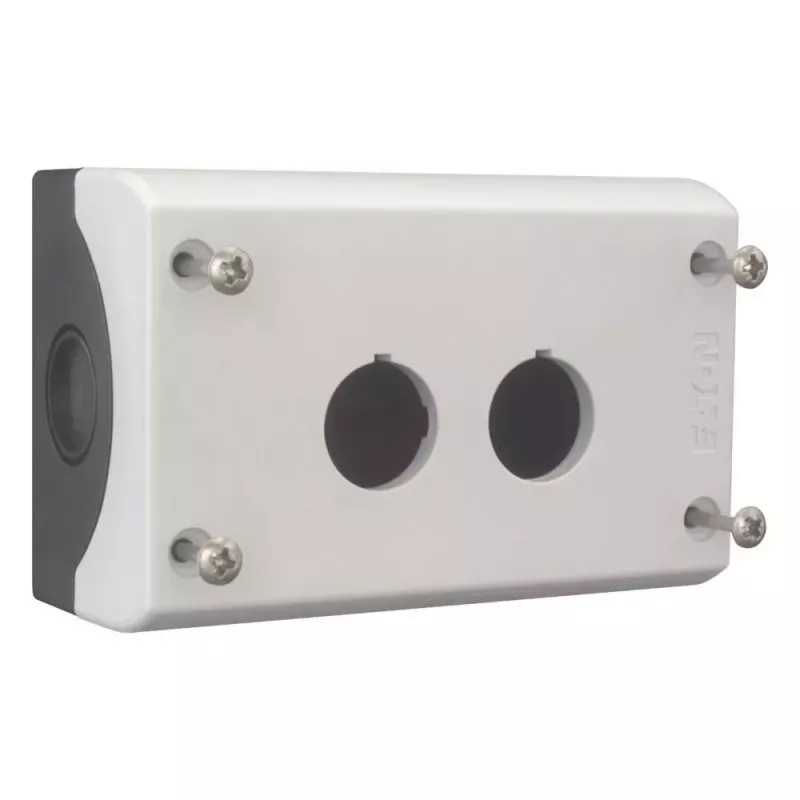

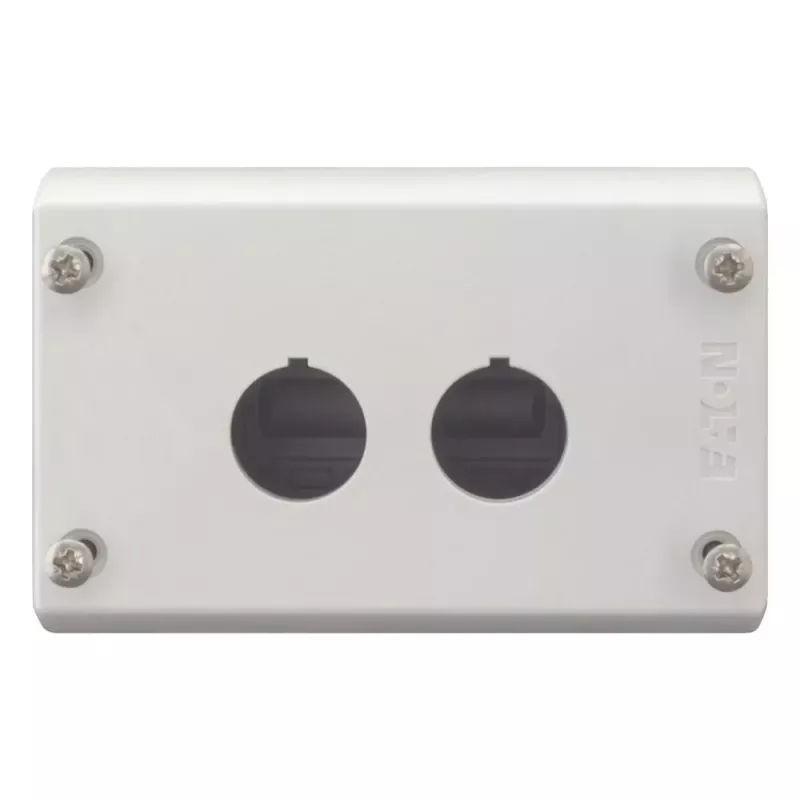

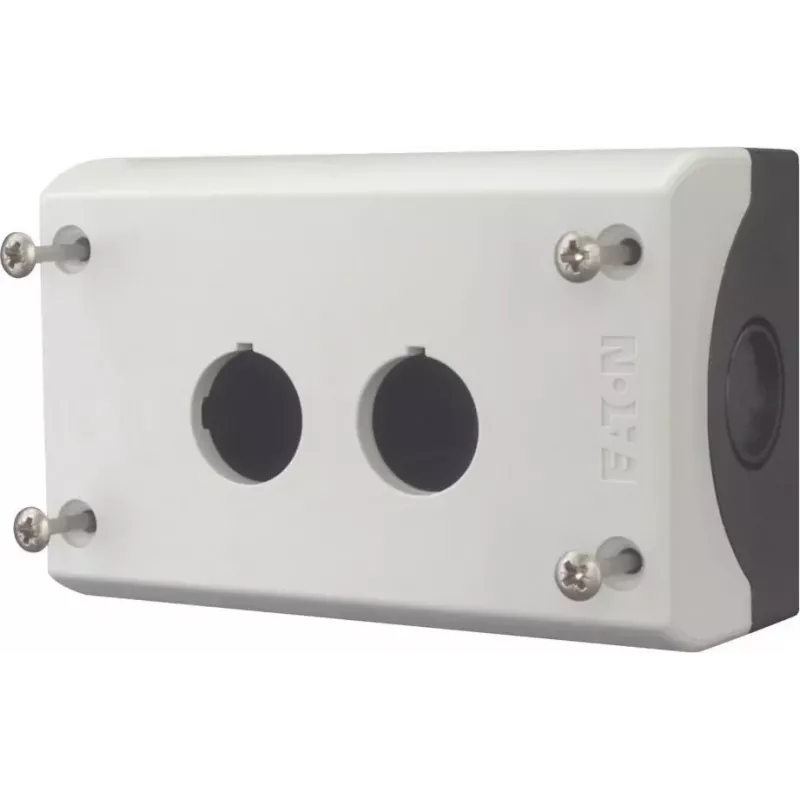

Eaton M22-I2 custodia vuota per 2 elementi di comando, montaggio su superficie, grigio chiaro RAL 7035

Surface-mount empty enclosure for two control devices, delivering robust IP66/IP67/IP69K protection in industrial environments. Its halogen-free thermoplastic body withstands impacts up to IK08 and operates from -25 to +70 °C, making it a reliable housing for pushbuttons, selector switches, or indicator lights.

Advantages

The enclosure is made of high-quality, halogen-free thermoplastic that meets UL 94 V-0 flammability standards. It withstands impacts up to IK08 and operates in temperatures from -25 to +70 °C. The smooth walls allow custom drilling for cable entries, providing flexibility in installation. Its light grey colour (RAL 7035) blends seamlessly into standard industrial settings.

Suitable for

• Pushbuttons and selector switches
• Indicator lights
• Industrial control panels
• Machinery and equipment housings

Key specifications

• Number of control device positions: 2
• Mounting type: Surface mounting
• Material: Thermoplastic
• Colour: Light grey (RAL 7035)
• Ingress protection: IP66, IP67, IP69K
• Impact resistance: IK08
• Operating temperature: -25 to +70 °C
• Flammability rating: UL 94 V-0
• Halogen-free: Yes
• Standards: IEC/EN 60947, VDE 0660

Recommendations

For reliable and durable housing of control devices in demanding industrial environments, the Eaton M22-I2 empty enclosure is an excellent choice. Its high protection ratings and robust construction ensure long-term performance.
