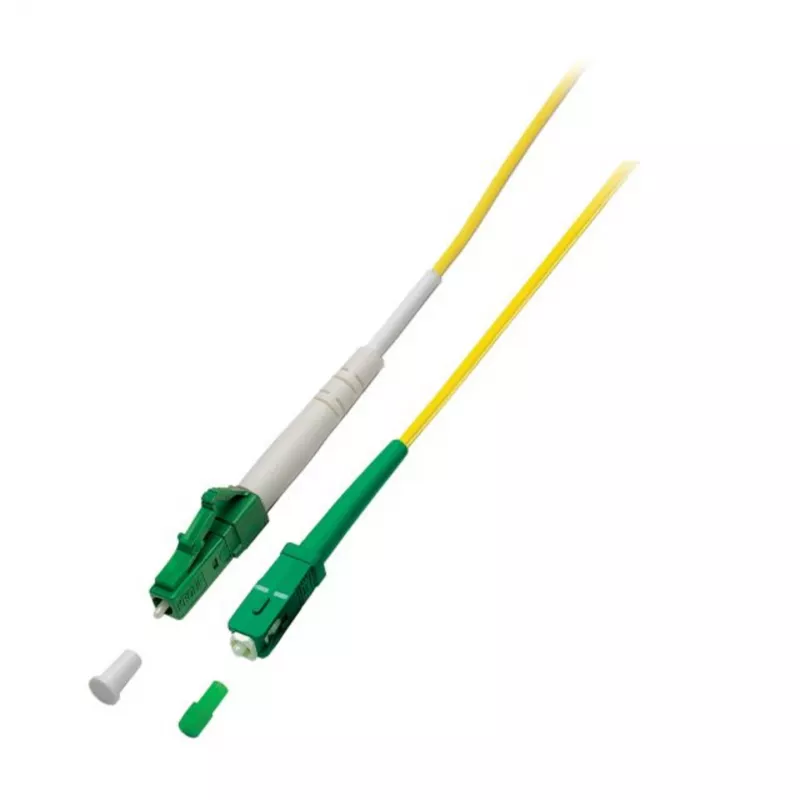

EFB Elektronik cavo patch in fibra ottica simplex LC/APC-SC/APC G.657.A2 20 m 2,0 mm giallo 9/125 µm

The EFB Elektronik Simplex Fibre Optic Patch Cable is a high-performance single-mode patch cable designed for reliable data transmission in FTTH, CATV, and telecommunication networks. With LC/APC to SC/APC connectors and a bend-insensitive G.657.A2 fibre, this 20-meter cable ensures low insertion loss and high return loss, making it ideal for critical infrastructure.

Advantages

Bend-insensitive design allows tight bends without signal degradation. LSZH jacket ensures safety in enclosed spaces. Zirconia ceramic ferrules provide stable optical performance.

Suitable for

• FTTH (Fiber to the Home) installations
• Data center patching
• Telecommunication networks
• CATV systems

Key specifications

• Fibre mode: Single-mode (SM)
• Fibre standard: ITU-T G.657.A2
• Core/Cladding: 9/125 µm
• Connectors: LC/APC to SC/APC
• Cable configuration: Simplex
• Cable length: 20 m
• Cable diameter: 2.0 mm
• Jacket colour: Yellow
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Insertion loss (typical): ≤ 0.25 dB
• Return loss (typical): ≥ 60 dB
• Ferrule material: Zirconia ceramic
• Operating temperature: -20°C to +70°C
• Minimum bend radius: 10 mm
• Attenuation @ 1310nm: ≤ 0.35 dB/km
• Attenuation @ 1550nm: ≤ 0.20 dB/km
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard LC/APC and SC/APC ports.
