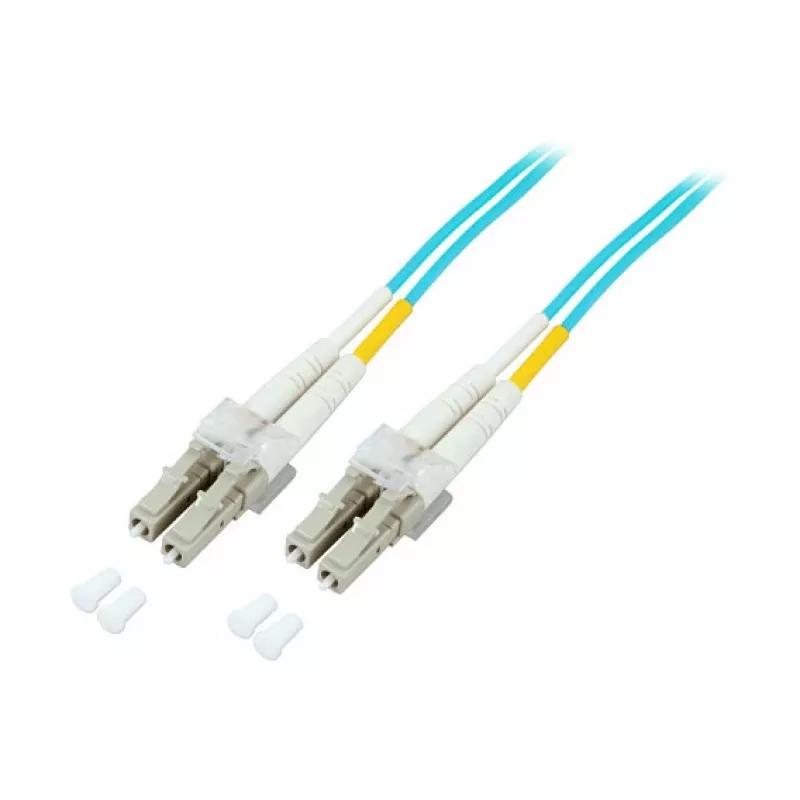

EFB-Elektronik cavo patch in fibra ottica duplex LC-LC OM3 50m LSZH aqua 2,0mm

The EFB-Elektronik Duplex Jumper LC-LC is a high-performance fiber optic patch cable designed for reliable data transmission in demanding network environments. With OM3 multimode fiber, this cable supports high-speed applications up to 10 Gigabit Ethernet over distances up to 50 meters. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in confined spaces, while the aqua color provides easy identification.

Advantages

Optimized for 10 Gb/s data rates with low insertion loss (≤0.3 dB) and high return loss (≥30 dB). Durable zirconia ceramic ferrule connectors ensure stable connections. LSZH jacket reduces toxic smoke in case of fire, making it ideal for data centers and office environments.

Suitable for

• Data center cabling
• Enterprise network infrastructure
• Telecommunications
• High-speed LAN applications

Key specifications

• Connector Type: LC/UPC to LC/UPC
• Fiber Mode: Multimode OM3
• Core/Cladding: 50/125 µm
• Cable Length: 50 m
• Jacket Material: LSZH
• Jacket Color: Aqua
• Cable Diameter: 2.0 mm
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 30 dB
• Operating Temperature: -20°C to 70°C

Recommendations

For optimal performance, pair with OM3-compatible transceivers and ensure proper cable management to avoid bending beyond the minimum bend radius.
